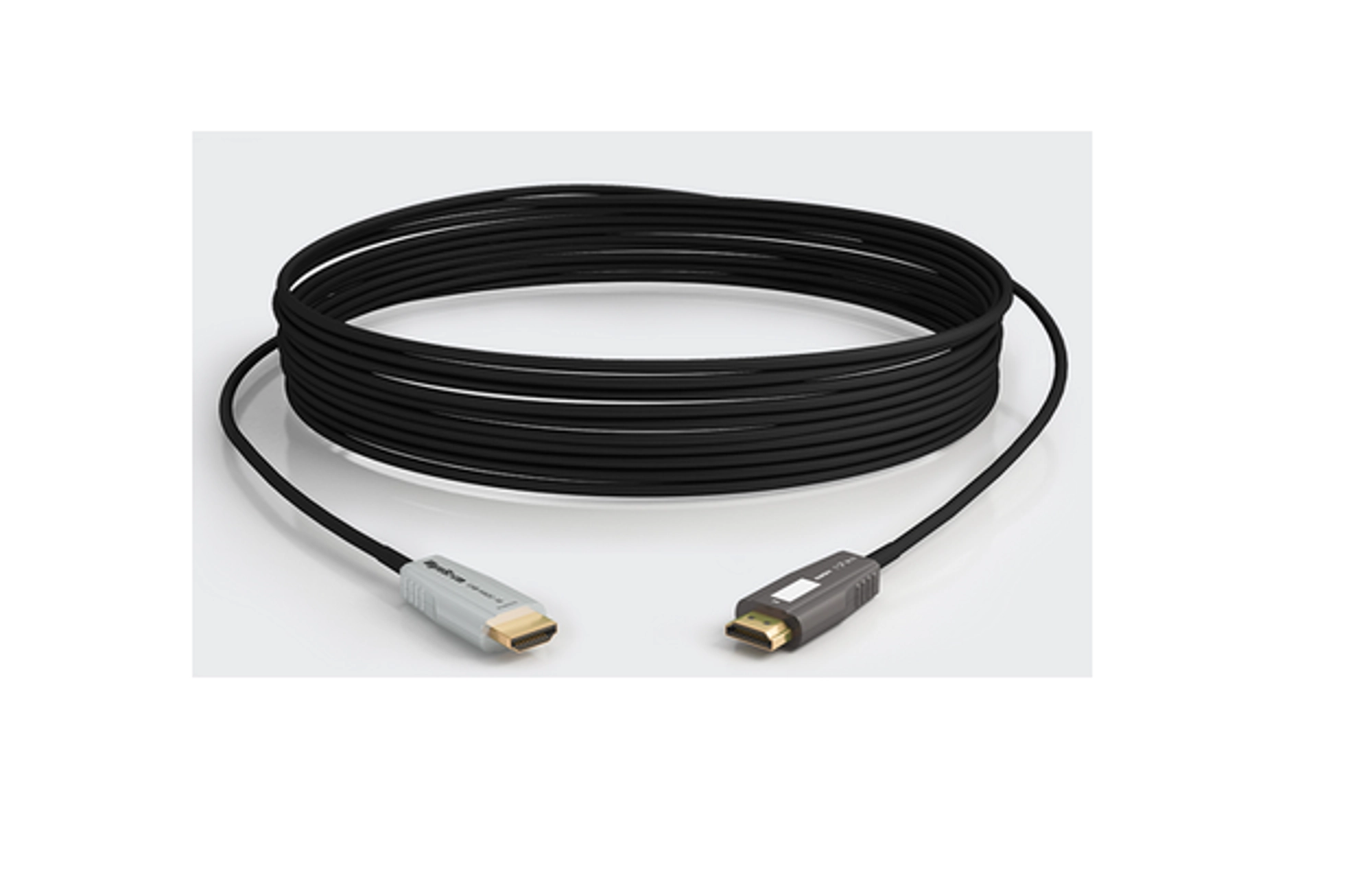

WyreStorm CAB-HAOC-20

SKU: WYR-CAB-HAOC-20

MPN: CAB-HAOC-20

Description

24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60, ARC, CEC, ALLM & VRR | ISF Certified (20m/65ft) FT4, CL3

Add to Wishlist

Send to a friend!

PRODUCT OVERVIEW:

Next generation active optical HDMI cables designed for next generation 4K UHD with HDR content, the WyreStorm CAB-HAOC-20 delivers uncompressed full bandwidth 18Gbps HDMI content up to 20m/65ft using the latest optical transmission technology.

KEY FEATURES:

Uncompressed optical transmission of 18Gbps HDMI content at 4K/60 4:4:4 or HDR at 60Hz available in 10m, 15m and 20m lengths
Compatible with latest HDR standards including HLG, HDR-10+ and Dolby Vision
Perfect for use in environments with excessive EM or RF interference
High quality aluminum construction with low-profile 20mm/0.79 head
ARC and CEC enabled for true native HDMI communication
Supports HDCP 2.2 content encryption
Supplied coiled on spool for easy installation
CL3 and FT4 certified

Audio and Video
Inputs 1x HDMI: 19-pin type A Male
Outputs 1x HDMI: 19-pin type A Male
Audio Formats 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Output Video Type AOC
Video Resolutions (Max) 1920x1080p @60Hz 16bit
3840x2160p @60Hz 10/12bit HDR 4:2:0
4096x2160p @60Hz 8bit 4:4:4
4096x2160p @60Hz RGB
Encoding Data Rate 18Gbps
End to End Latency Zero
Supported Standards DCI | RGB1080p: 16bit | 4K UHD: 8bit | HDR | HDR10 | Dolby Vision | HLG |@24p: 10bit BT.2020 | BT.2100
Maximum Pixel Clock 600MHz
Communication and Control
HDMI TMDS | HDCP | EDID | CEC | ARC
Audio Return Channel (ARC) Supported
Installation Restrictions
Max Bend Radius 6cm
Max Pull Tension 15kg
Power
Power Supply Passive 5V DC 1A | 4.5v~5.5v VCC
Max Power Consumption 250mW
Environmental
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 0.85 BTU/hr
Dimensions & Weight
Rack Units/Wall Box NA
Height 9mm/0.36in
Width 19.8mm/0.78in
Depth 39.5mm/1.56in
Weight NA
Cable Length (Connector to Connector) 20m/65ft
Regulatory
Safety and Emission CE | FCC | RoHS | CL3 | FT4

Cable Construction:
Fiber
Bandwidth:
24 Gbs
Length:
66 ft / 20 m
Cable Design:
Slim
Brand:
Wyrestorm
