WAC 9300-TRN-SS

Dimensions:

18.9IN x 6.69IN x 6.3IN

WAC Landscape Lighting magnetic power supplies can support the entire line of WAC 12V Landscape Lighting products, including Accent, Flood, Well, Indicator, Submersible, 12V Tape Light, Step and Wall, Deck and Patio, Path and Area, and Hardscape lighting products. This Stainless Steel housing is manufactured using 316 marine grade stainless steel that enhances protection against outdoor elements and IP66 rated for protection against high-pressure water jets and rain. The power supply can be mounted on a post or wall. Includes a 6ft 10-gauge grounded plug-in cord for simple connection to a receptacle. A lock-able hinged door at the front of the power supply swings up and is held open by magnets for ease of installation and maintenance. There is access to an on/off switch inside the power supply and multiple wire taps ranging from 12V-16V on a terminal strip allow for longer runs. Power supplies are manufactured in 75W (SKU 9075-TRN-SS), 150W (SKU 9150-TRN-SS), 300W (SKU 9300-TRN-SS), and 600W (SKU 9600-TRN-SS) sizes, we recommend a size that is 75 of your total power needs to allow room for adding fixtures to your system down the road. WAC Landscape Lighting power supplies support additional plug-and-play accessories sold separately such as a photocell (SKU 9000-PCH-GY or 9000-PCR-GY) that turns the system on at dusk and off at dawn or a mechanical timer (SKU 9000-MTI-WT) that allows you to control when the system turns on and off. Smooth and continuous dimming to 10 with a Magnetic Low Voltage Dimmer. WAC Landscape Lighting offers 100ft, 250ft, or 500ft, 12-guage 2-wire low voltage burial landscape cable sold separately for a complete installation (9100-12G-BK – 100ft Spool, 9250-12G-BK – 250ft Spool, 9500-12G-BK – 500ft Spool).

• Input: 120 VAC, 50/60Hz
• Construction: Stainless steel
• Outdoor rated stainless steel transformer contains an outdoor rated 3-prong plug for power
• Knock outs for power and photosensor connections
• 3-prong outlet for timer
• Taps for 12V, 13V, 14V and 15V
• 6′ lead input wire, except for the 600W which comes with a 5′ lead wire
• UL 1838 Listed
• MLV Dimming capable, dimming dependent upon fixture type
• IP65 Rating

12V Magnetic Transformer (Outdoor) Accessory

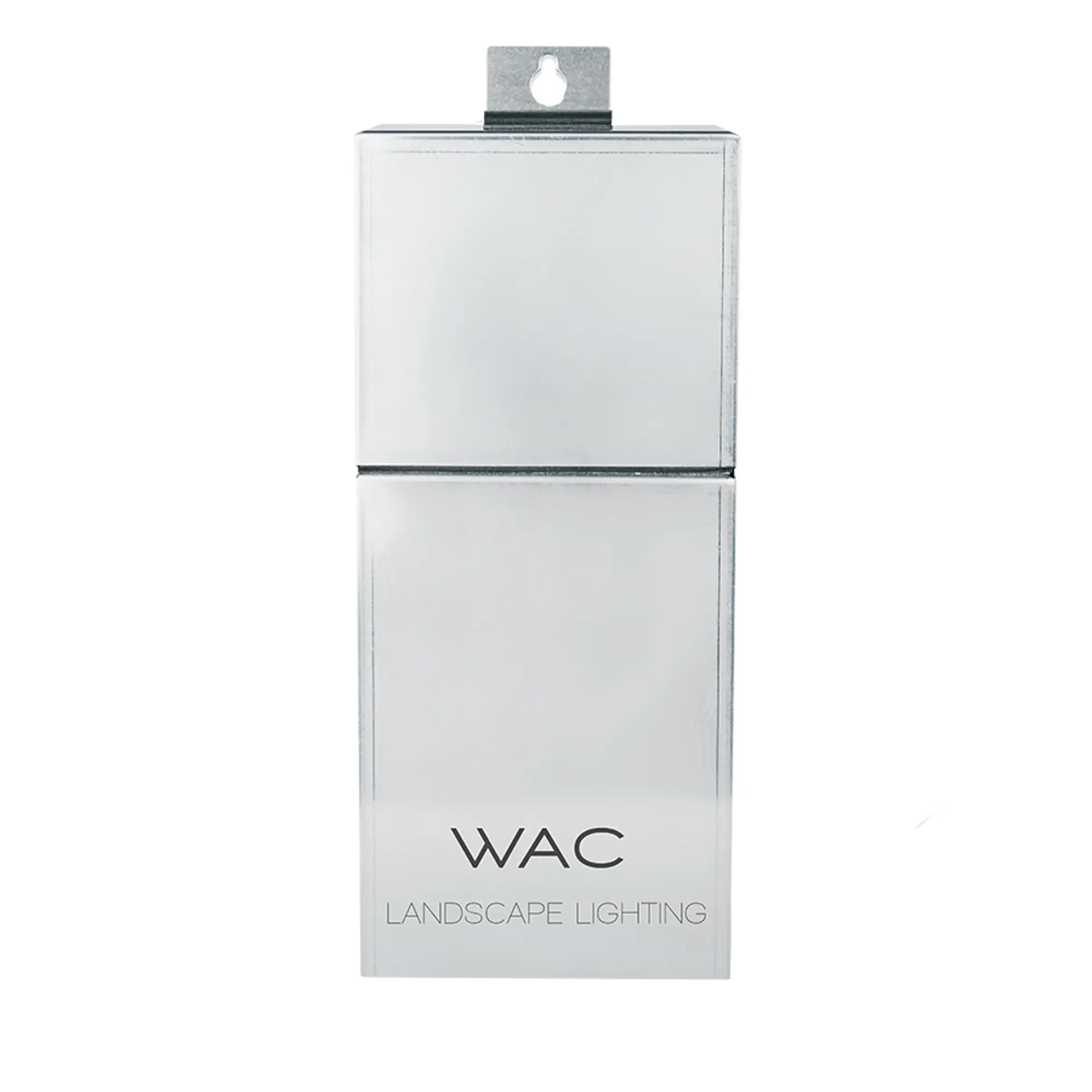

300W Magnetic Landscape Lighting Power Supply in Stainless Steel
