Evolution EVSP1013

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: VAN-EVSP1013

MPN: EVSP1013

Description

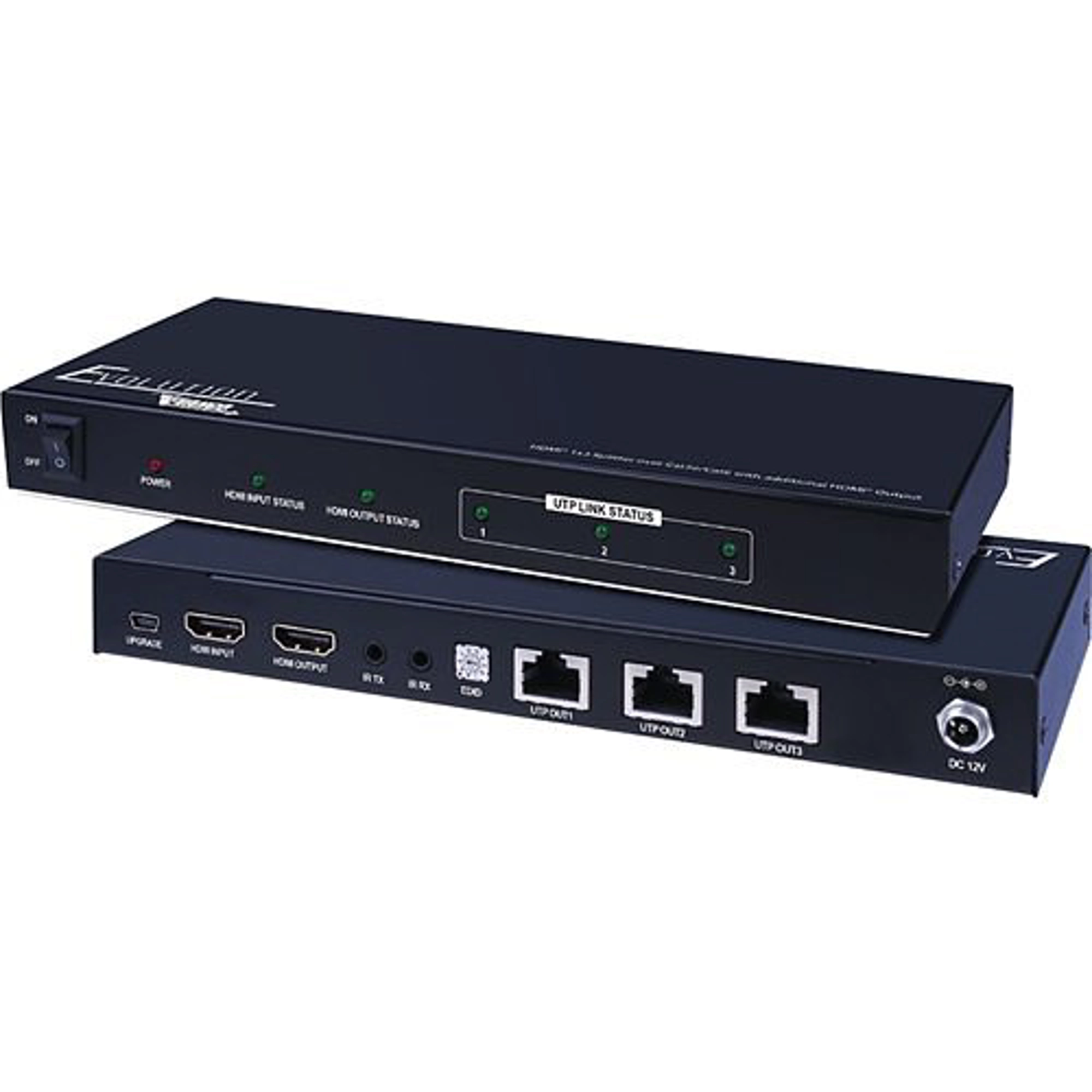

1x3 HDMI Over CAT Splitter 50m 1080p HDMI Loopout HDCP 2.0

Send to a friend!

Allows for 1 HDMI input to be split and sent to 4 different displays
(3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p @60Hz video with audio and control up to 164ft/50m
Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
Supports 20-60kHz wideband bi-direction IR communication
Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
Supports multiple audio formats including Dolby True HD- DTS-master- etc.
Supports all 3D Signal Formats
Supports manual or dynamic EDID management
HDCP 2.0 compatible
Dimensions: 8.1 W x 1 H x 3.5 D

Evolution HDMI® 13 Splitter over Cat5e/Cat6 Cable with Additional HDMI Output

EVSP1013

Tech Support Tips:

With recent changes to many new source and display components, we have updated the EVSP1013, EVSP1017, and EVRX2006 to improve compatibility. There are now 2nd Generation versions of each of these products for improved compatibility
Ensure that both the splitter(s) (EVSP1013 and EVSP1017) and receiver(s) (EVRX2006) match generation versions. For example, if using a 2nd Generation splitter, a 2nd Generation EVRX2006 receiver must be used. All 2nd Generation Products are marked as such on the product and box. If no version or version number is listed, this would be a 1st Generation unit
