Vaddio 999-99110-000W

This Package Includes:

• RoboSHOT 30E camera (black or white)
• Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
• Vaddio IR Remote Commander
• Quick-Connect USB Mini Interface (QMini)
• 24V power supply with AC cord set(s)
• Quick-start cards
• 6′ (1.83m) USB 2.0 cable, type A to B

Introducing the RoboSHOT Elite Series Vaddios next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom^TM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E cameras powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddios industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.

The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs. The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.

The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 100′ using the Vaddio standard two Cat. 5 wiring platform. The USB Mini also offers easy mounting either on-wall or under-table with an integrated mounting tab.

• 30x Zoom
• 1/2.5-type Exmor R CMOS sensor
• 70.2° horizontal field of view
• Power/Video/Control on two Cat-5s up to 100 (30.5m) for RoboSHOT Elite series cameras
• USB 2.0 Output

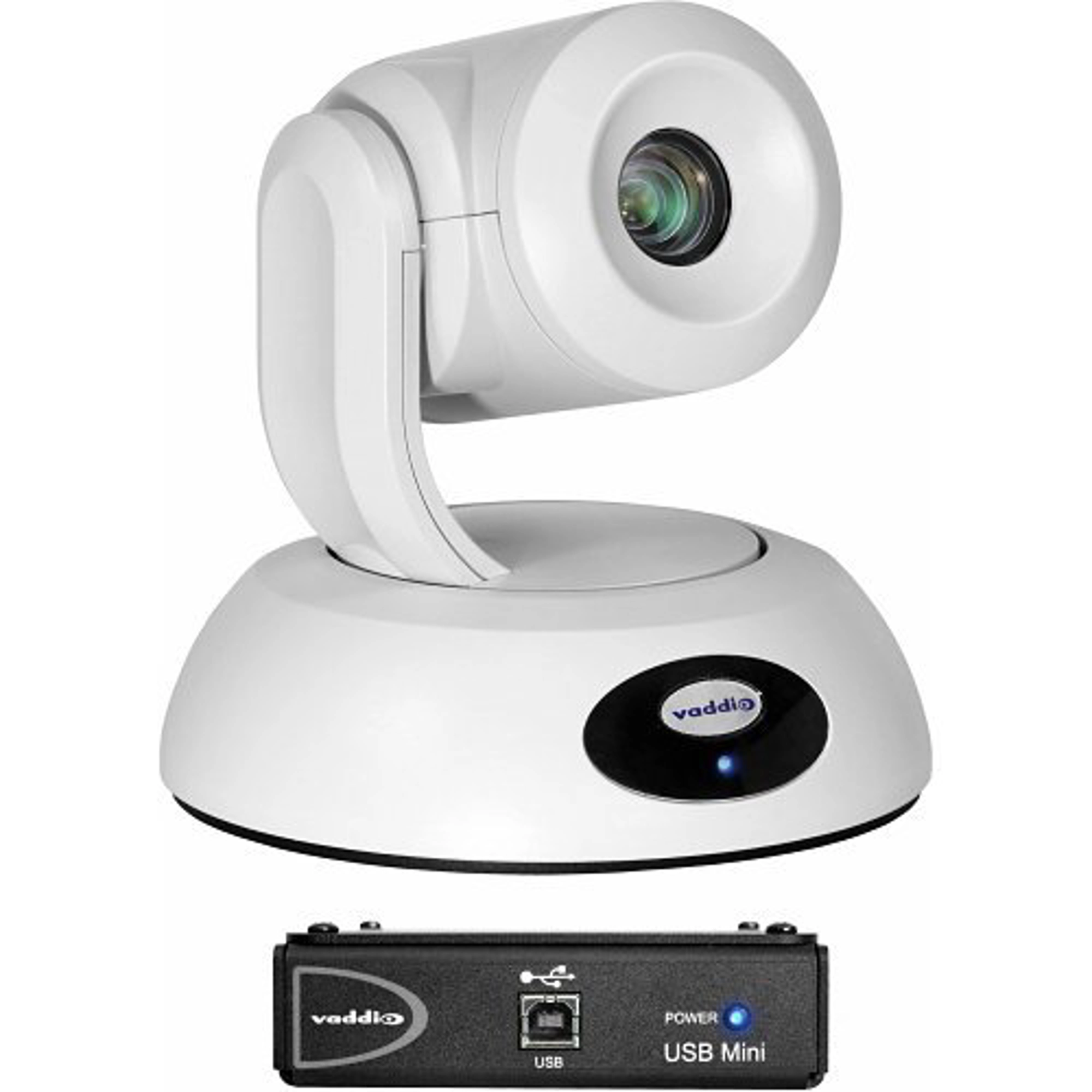

RoboSHOT 30E QMini System

999-99110-000W

RoboSHOT Elite Series cameras are professional A/V presentation cameras. RoboSHOT 30E QMini System delivers high-quality HD video, power and control over two Cat. 5 cables up to 100′ and includes a USB 2.0 output based on UVC standards.

• Quick Start Guide
