Vaddio 999-9675-000

Specifications Specifications for Cisco Codec Kit for OneLINK Bridge to Vaddio HDBaseT Cameras Dimensions & Measurements Depth 6 Distance 328 Height 1.72 Operating Temperature 32° to 104°F (0° to 40°C) Product Weight 3.3 Width 8.38 Characteristics & Features 3rd Party Control RS232 Telnet Bridged Signal Audio and Video Browser-based User Interface for Remote Control Built-in Color Black Compatible With Cisco Vaddio Extension Type Camera Camera Codec Input Ports HDbT Line Level Audio Mic Level Audio OneLINK Bridge adds 328ft (100M) Power Video Control Extension 3G SDI Audio Mixer HDMI USB 3.0 OneLINK Compatibility Native Output Ports 3G SDI Audio HDMI USB 3.0 Type B Power Cord US Cord Power Supply 1.36A 48VDC Power Type Local Power Quick-Connect Compatibility No

For Cisco Telepresence SX20*, SX80 or C-Series codecs; compatible with RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD, and DocCAM 20 HDBT.

More Flexibility for Room Design and Installation

Get more from your codec. With Vaddio’s OneLINK Bridge Codec Kits, you can bridge traditional videoconferencing equipment into USB-based conferencing applications such as Skype for Business, Google Hangouts, or Zoom.

Use the camera you want: OneLINK Bridge gives you the flexibility to pair a Vaddio camera with your Cisco codec.

Sounds complicated – but it’s not. Tailored for Cisco codec systems and compatible with RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD, and DocCAM 20 HDBT cameras, this OneLINK Bridge kit simplifies installation by extending power, video and control to your camera over a single Cat-5e cable up to 328 ft (100 m).

• Simple, clutter-free camera extension with HDBaseT technology
• Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
• Bridges audio and video for easy soft-client conferencing
• Configurable audio matrix with AEC
• Simultaneous HDMI, USB 3.0, IP Streaming, and HD-SDI outputs
• Up to 1080p/60 resolution available over uncompressed USB
• More flexibility in camera and/or codec placement no longer dependent on the location of the codec
• HDBaseT interface extends power, video and control up to 328 ft (100 m) Cisco systems can now go into larger rooms
• Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing, making traditional codecs more flexible
• Connects to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
• Plug and play usability for BYOD conferencing environments
• Intuitive browser-based user interface for configuration and system administration

*Please note: When connecting a Cisco SX20 codec to a OneLINK Bridge, you will need to provide a Cisco CAB-PHD4XS2-SPLIT cable.

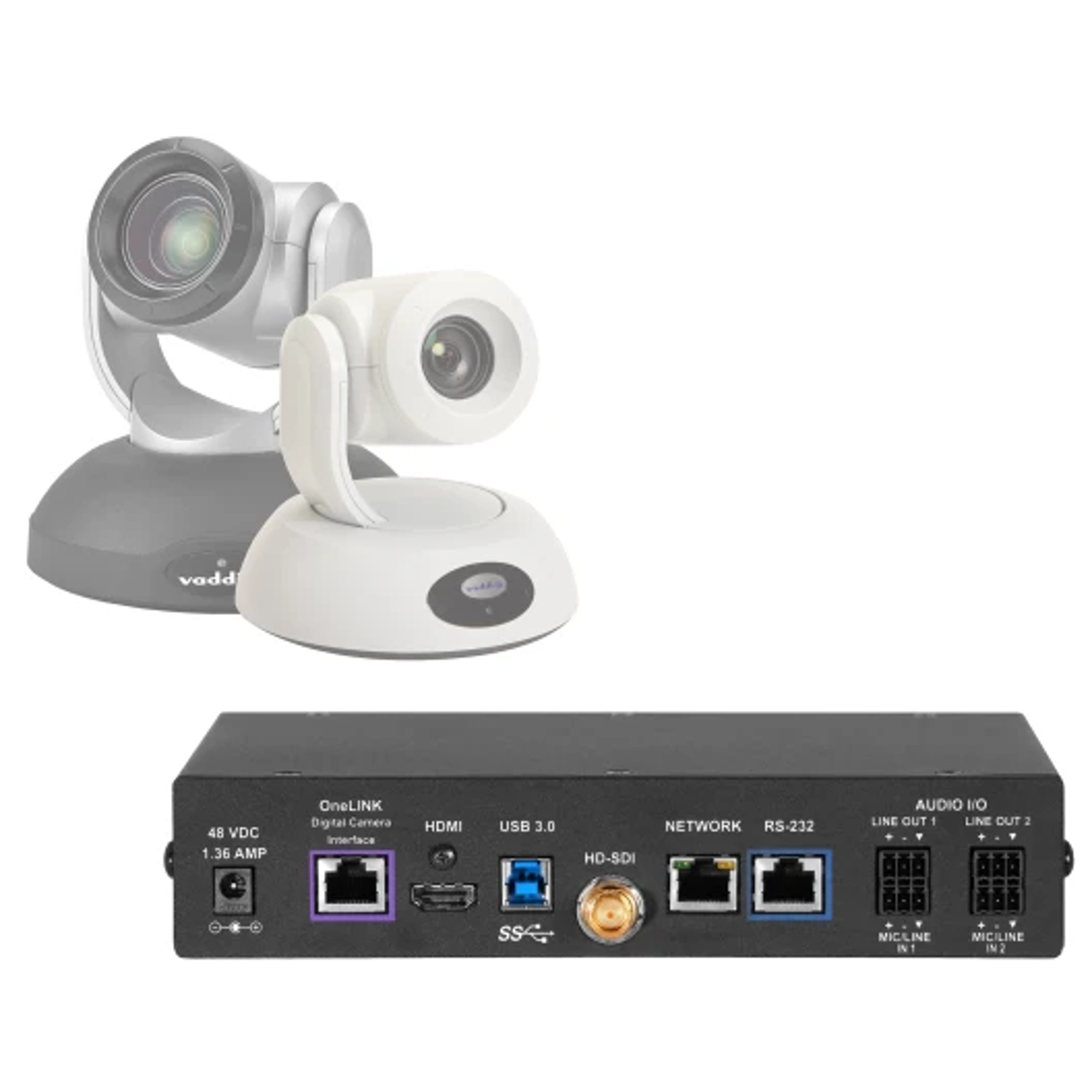

Cisco Codec Kit for OneLINK Bridge to Vaddio HDBaseT Cameras

999-9675-000

Brings your Vaddio HDBaseT camera and non-USB audio components into your USB conferencing environment and enables you to pair them with a Cisco codec for traditional videoconferencing quality. Extends power, video and control to your camera over a single category cable.

Packaged for Cisco SX20*, SX80 or C-Series codecs; compatible with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW and DocCAM 20 HDBT.

• Quick Start Guide
