Vaddio 999-82000-000

• Shipping Dimensions 30″ x 9″ x 11.25″ (762 x 228.6 x 285.8 mm)
• Shipping Weight 19.5 lbs (8.9 kg)

QuickCAT is a universal ceiling camera mount that is compatible with most invertible PTZ cameras and fixed cameras. This ceiling mounting solution is designed for suspended ceilings and is compatible with 2×2, 2×4′, 60×60 cm, and 62.5×62.5 cm ceiling grids and works even with irregular grids. In addition, its Q-Lock Quick Release Lever provides quick connect/disconnect of the camera. Its integrated key and lock system offers greater security.

QuickCAT packages are also available with a Vaddio OneLINK extension system which lets you extend power, video and control up to 100 m (328 ft) over a single Cat-5e/6 cable. Packages are available for select Vaddio, Sony, Panasonic and Cisco camera models.

Also compatible with the following camera models: 400-U3, 500-H, 700-S, 700-U3, TLC-1000-U3S, VC-300, VC-A20P, VC-A50S, VC-A60S, VC-A70H, VC-B20D, VC-B20DU, VC-B20U, VC-B20UA, VC-G30, VC-G30SU, VC-G50, SRG-300, SRG-120, EVI-HD7V, EVI-HD3V, EVI-HD1, EVI-H100, EVI-D100, EVI-D90, EVI-D80, EVI-D70, BRC-Z330, BRC-H900, BRC-H700, 400-S, 300-S, 300-U3, 300-U3S, 300-U2S, 300-U3-IP, TLC-1000-DS, 1000-U3S, 1000-U2S, TLC-600-S, Unite 200, Unite 100, VPTZH-02 Compass, AW-HE120, AW-HE130, AW-HE40, AW-HE50, AW-HE60, AW-UE70, 10X, HD, Precision HD, Precision 60, XU-80, XU-81, VC-C50iR, CV610-U2, CV610-UB, CV630-IP, CV630-IPW, CV620-WH2, CV620-BK2, CV620-NDI, CV620-NDIW, CV630-NDI, CV620-IP, CV620-IPW, CV612HT-4K, CV612HT-4KW, Rally, PTZ2, PTZUHD, CR-N300, CR-X300, CAM520 PRO, CAM520 PRO 2, TR530, TR320, PTZ330N, PTZ310N, PTZ330, PTZ310.

• Compatible with most invertible pro AV cameras
• Easy installation
• Adjustable camera positioning 0 to 12″ (0 to 305 mm) height adjustment
• Aesthetically pleasing
• Flexible camera positioning
• Quick connect/disconnect of camera
• Enhanced security with an integrated key and lock system

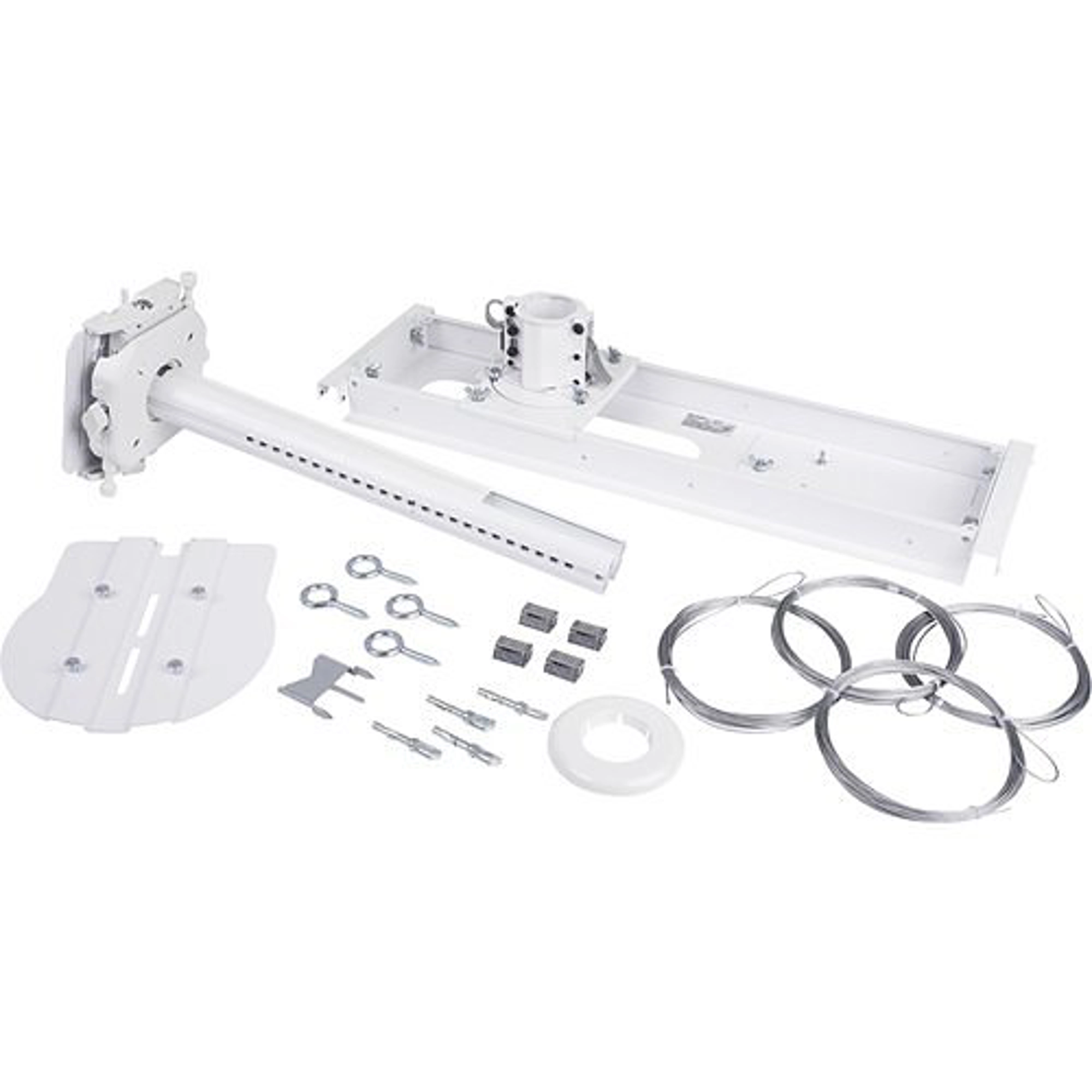

QuickCAT Universal Suspended Ceiling Camera Mount

999-82000-000

The easy-to-install ceiling solution compatible with most invertible pro AV cameras including Vaddio ZoomSHOT, WideSHOT, WideSHOT SE, ConferenceSHOT 10, ConferenceSHOT FX, PowerVIEW HD, RoboSHOT 12/12E, RoboSHOT 30/30E, RoboSHOT 20 and 40 UHD, and EasyIP 10 and 20.

• Cutsheet
