Vaddio 999-2225-014

This Package Includes:

• Wall box enclosure for the camera
• Face frame
• Heavy-duty camera platform
• Mounting hardware
• Quick-start card

Using the depth of the wall cavity to minimize the cameras extension into a room, the IN-Wall Enclosure is an attractive way to integrate a PTZ camera into any room. The entire enclosure can be painted to match any rooms dcor and the reinforced camera platform is made of cold-rolled steel, for rigidity and durability. The modular design allows the in-wall mounting box to be installed during initial room build-out, with the camera platform and face frame to be added later.

The camera enclosure is designed to house a camera and the EZCamera Interface Module (EZIM™) of a OneLINK camera extension system, for greater flexibility in camera placement when a OneLINK-compatible camera is used.

Compatible Cameras AVer CAM540 PTZOptics PT 20X-USB-WH-G2, PT 12X-NDI-WH, PT 20X-SDI-GY-G2, PT 20X-SDI-WH-G2, PT 20X-USB-GY-G2, PT 30X-SDI-GY-G2, PT 30X-SDI-WH-G2, PT 20X-NDI-GY, PT 20X-NDI-WH, PT 30X-NDI-GY, PT 30X-NDI-WH, PT 12X-NDI-GY, PT 12X-USB-GY-G2, PT 12X-USB-WH-G2, PT 12X-SDI-WH-G and PT 12X-SDI-GY-G, QSC PTZ-IP 20×60, PTZ-IP 12×72 Sony EVI-HD7V, EVI-HD3V, EVI-HD1

• Supports phased installation: in-wall mounting box can be installed during initial room build-out; camera platform and face frame can be added later
• Camera platform extension from wall: 6.9 inches
• Cold-rolled steel construction

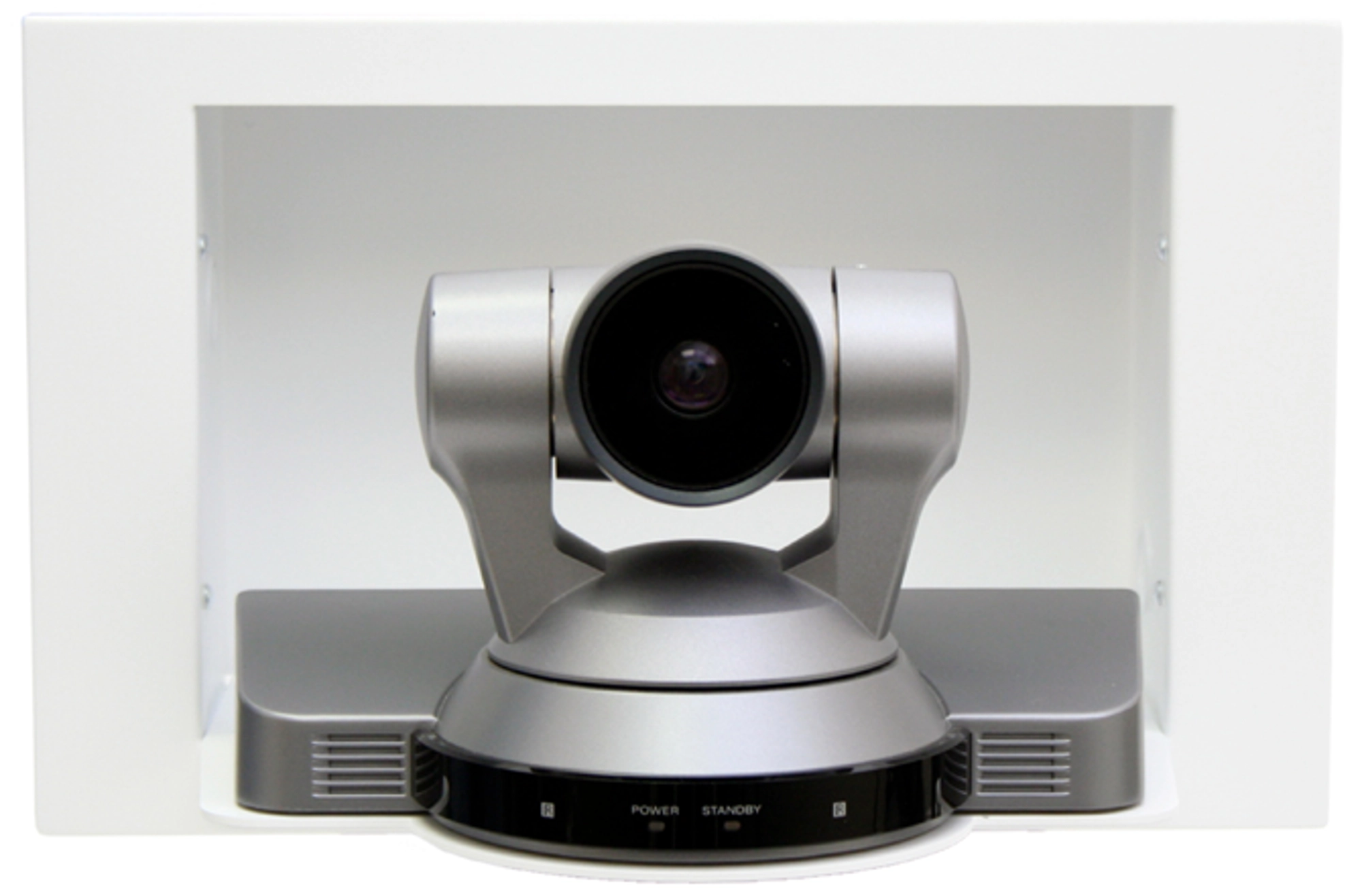

IN-Wall Enclosure for Sony EVI-HD1

999-2225-014

A recessed in-wall mounting solution for a sleek camera installation.

• Cutsheet
