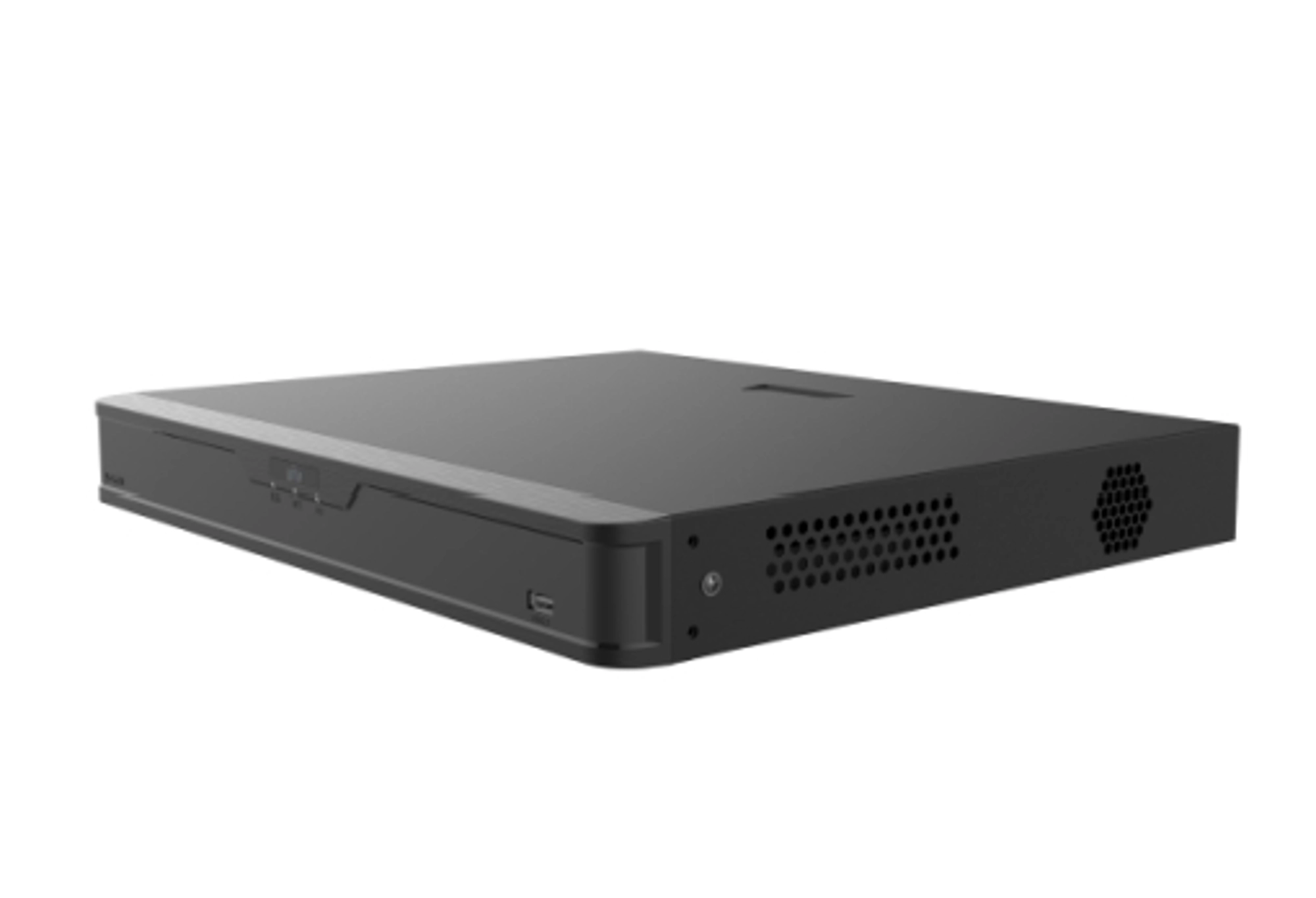

Uniview XVR302-16U3

Video/Audio Input Description
IP Video Input 16-ch
Analog Video Input 16-ch, BNC
Max IP Video Input 32-ch
Supported Analog Camera Types Support AHD input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input:
8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input:
8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
BNC Audio Input 16-ch, channel audio
RCA Audio Input 4-ch
Video/Audio Output Description
HDMI Output HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
BNC Video Output 1-ch
RCA Audio Output 1-ch
Live View Display HDMI/VGA: 1/4/6/8/9/25/32
Encoding/Decoding Description
Recording Resolution 8MP/5MP/4MP/1080P/720P/D1
Recording Frame Rate Main stream: 8MP@8fps
Sub stream: D1@8fps
Main stream: 5MP@12fps
Sub stream: D1@12fps
Main stream: 4MP@15fps
Sub stream: D1@15fps
Main stream: 1080P@25fps
Sub stream: D1@25fps
Main stream: 720P@30fps
Sub stream: D1@30fps
Audio Sample Rate 8KHz,16 bit per channel
Audio Bit Rate 64Kbps per channel
Decoding Capability Analog: 8 x 8MP@8, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 16 x 720@30
IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Coaxial Cable Description
Audio over Coaxial Cable(Form) 16-ch, One-way Audio(TVI)
Two-way Audio Description
Two-way Audio 1-ch, RCA(Using the audio input and output)
Analog Snapshot Description
FTP/Schedule/Event Snapshot Schedule/FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution
Network Description
Incoming Bandwidth 80 Mbps (Up to 112 Mbps after all analog channel conversion)
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP
Browser(Plugin) Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Smart Description
Analog Smart by XVR SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Face Detection;Ultra Motion Detection(UMD)
IP Smart by IPC Face Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking
VCA Search Face Search;Behavior Search
Smart Functions by XVR 16-ch(UMD), 8-ch(SIP), 2-ch(Face Detection)
Alarm Description
General Alarm Motion
Alert Alarm IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
Hard Disk Description
SATA 2 SATA interfaces
Capacity Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface Description
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0
RS485 1
RS232 NA
Alarm In 8-ch
Alarm Out 4-ch
Power Supply DC 12V/5A
Working Environment Description
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity = 90% RH(non-condensing)
Power Consumption (without HDD) = 38W
Dimensions Description
Weight (without HDD) =2.3 Kg ( 5.07lb )
Dimensions 380mm × 326mm × 53mm (15.0″ × 12.8″×2.1″)
Certification Description
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC Part15 Subpart B

Type: Hybrid Video Recorder (XVR)
Model: XVR302-16U3
Channel Support: Up to 16 channels
Camera Compatibility: Supports analog and IP cameras
Features: Hybrid capability, multiple recording resolutions, user-friendly interface, remote access

Support H.265/H.264 video formats

Support audio over coaxial cable(TVI cameras)

Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access

16 channel BNC input

Support 1 ch CVBS output, 1 ch VGA output, 1 ch HDMI output at up to 4K(3840 x 2160)

HDMI and VGA simultaneous output

Long transmission distance over coaxial cable

Support mainstream cameras of ONVIF and RTSP protocols
