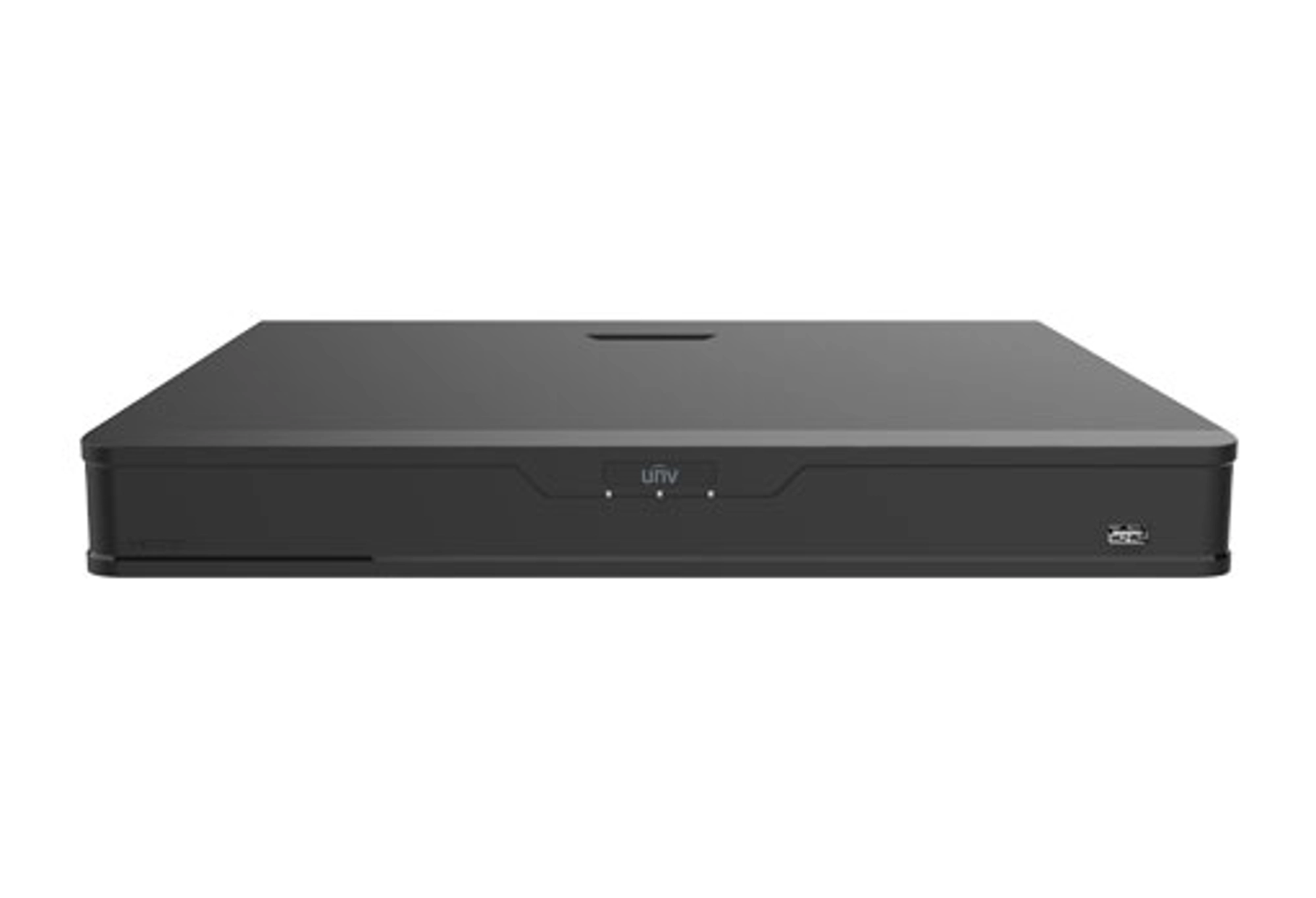

Uniview XVR302-08U3

Video/Audio Input Description IP Video Input 8ch Analog Video Input 8ch, BNC Max IP Video Input 16ch Supported Analog Camera Types Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20ps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25ps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input BNC Audio Input 8ch, channel audio RCA Audio Input 4ch Video/Audio Output Description HDMI Output HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA Output VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz BNC Video Output 1ch RCA Audio Output 1ch Live View Display HDMI/VGA: 1/4/6/8/9/16 Encoding/Decoding Description Recording Resolution 8MP/5MP/4MP/1080P/720P/D1 Recording Frame Rate Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 3K@12fps Sub stream: D1@12fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps Audio Sample Rate 8KHz,16 bit per channel Audio Bit Rate 64Kbps per channel Decoding Capability Analog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30 IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30 Coaxial Cable Description Audio over Coaxial Cable(Form) 8ch, Oneway Audio(TVI) Two-way Audio Description Two-way Audio 1ch, RCA(Using the audio input and output) Analog Snapshot Description FTP/Schedule/Event Snapshot Schedule/FTP/Event snapshot:8ch snapshot, up to 704*576 resolution Network Description Incoming Bandwidth 80 Mbps (Up to 96 Mbps after all analog channel conversion) Outgoing Bandwidth 160Mbps Remote Users 128 Protocols TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP Browser(Plugin) Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) Smart Description Analog Smart by XVR SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD) IP Smart by IPC Face Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking VCA Search Face Search;Behavior Search Smart Functions by XVR 8ch(UMD), 4ch(SIP) Alarm Description General Alarm Motion Alert Alarm IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal Hard Disk Description SATA 2 SATA interfaces Capacity Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) External Interface Description Network Interface 1 RJ45 10M/100M/1000M selfadaptive Ethernet Interface USB Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 RS485 1 RS232 NA Alarm In 8ch Alarm Out 4ch Power Supply DC 12V/3A Working Environment Description Working Temperature 10°C ~ + 55°C ( +14°F ~ +131°F ) Working Humidity = 90% RH(noncondensing) Power Consumption (without HDD) = 12W Dimensions Description Weight (without HDD) =2.0 Kg ( 4.4lb ) Dimensions 380mm 326mm 53mm (15.0″ 12.8″2.1″) Certification Description Certification CE, FCC, UL, RoHS, WEEE CE EN 55032, EN 6100033, EN IEC 6100032, EN 55035

Video recorders are the heart of your cctv system. With the XVR302-08U3 you can be sure that your security cameras are in good hands. This HD-TVI video recorder is perfect for standard installations with up to 8 security cameras. In addition to being a 8 channel DVR, the XVR302-08U3 is also considered a Tribrid DVR, which means you also have the ability to add up to 16 IP security camera ; effectively making this 24 channel DVR. The XVR302-08U3 is just what your system needs to ensure fast, powerful, and reliable surveillance 24/7.

XVR302-08U3 The XVR302-08U3 is a Hybrid Digital Video Recorder (XVR) designed to support both analog and IP cameras, making it a flexible and scalable solution for security surveillance. This model is ideal for users who want to upgrade from traditional analog systems to network-based IP cameras, while still supporting existing analog cameras for a smooth transition. The XVR302-08U3 can manage up to 8 channels, offering robust features for recording, monitoring, and managing video footage across both types of cameras. It typically includes HDMI/VGA output, motion detection, and remote access capabilities.
