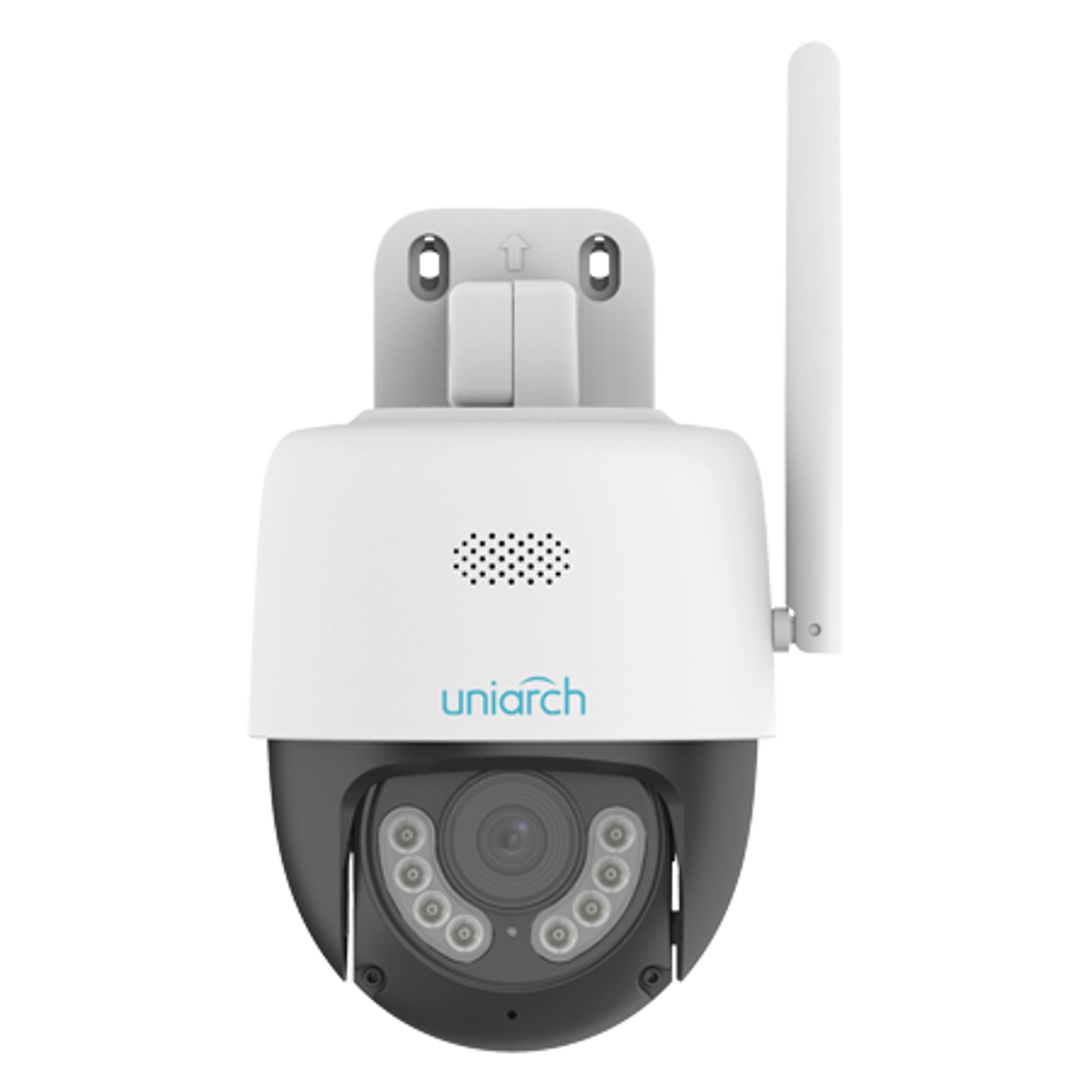

Uniview Uho-P1A-M3F4D

Camera Uho-P1A-M3F4D
Sensor 1/2.8″ progressive scan, 3.0 megapixel, CMOS
Min. Illumination Colour:0.005 lux (F1.6,AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, shutter time: 1s ~ 1/100000s
WDR Digital
S/N >52 dB
Lens
Lens type [email protected]
Digital Zoom 4
Iris Fixed
Field of View (H) 90.5°
Field of View (V) 44.4°
Field of View (D) 111.3°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4mm 73.5 (241.0ft) 29.4 (96.4ft) 14.7 (48.2ft) 7.3 (24.1ft)
Illuminator
IR Range Up to 30m (98ft)
Warm Light Range Up to 10m (33ft)
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264
Frame Rate Main Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 640*360, Max 20fps;
Video Bit Rate 128 Kbps~6144 Kbps
ROI Up to 8 areas
Video Stream Dual streams
OSD Up to 2 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC N/A
BLC N/A
Defog Digital Defog
Events
Basic Detection Cross line, intrusion(based on human body detection), Human body detection, Motion detection, Audio detection
Auto tracking Support
General Function IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression G.711U,G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Wi-Fi 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration API
Client Uniarch Client
Uniarch APP
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Pan & Tilt
Pan Range 0° ~ 345°
Pan Speed 1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range 0° ~ 90°
Tilt Speed 1°/s ~ 30°/s
Preset speed: 30°/s
Number of Presets 20
Home Position Support
Interface
Built-in Mic Support
Built-in Speaker Support
Wi-Fi Support
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certifications
EMC CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130)
FCC (FCC 47 CFR part15 B)
RF FCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety CE LVD (EN 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP66 (IEC 60529)
General
Power DC 12V ± 25%
Power consumption: Max 10.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) F118mm*118mm*199mm (F4.6”x 4.6”x 7.8”)
Weight 0.53kg (1.17lb)
Working Environment -30°C ~ 60°C (-22°F to 140°F), Humidity:=95% RH(non-condensing)
Surge Protection 4KV
Reset Button Support
LED indicator 1, red/green

High quality image with 3MP, 1/2.8″CMOS sensor

• 2304*1296@20fps in the main stream

• Ultra 265, H.265, H.264

• Support digital WDR (Wide Dynamic Range)

• Built-in Mic & Speaker, support two-way audio, offer better interaction

• Support sound and light warning, makes warning and alarming more noticeable

• Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more scenes

• Self-contained bracket, support two kinds of mounting

• Supports 256 GB Micro SD card

• Wi-Fi connection and easy installation

• IP66 ingress protection

• The front face is made of grapheme, which has better heat dissipation and more environmental protection
