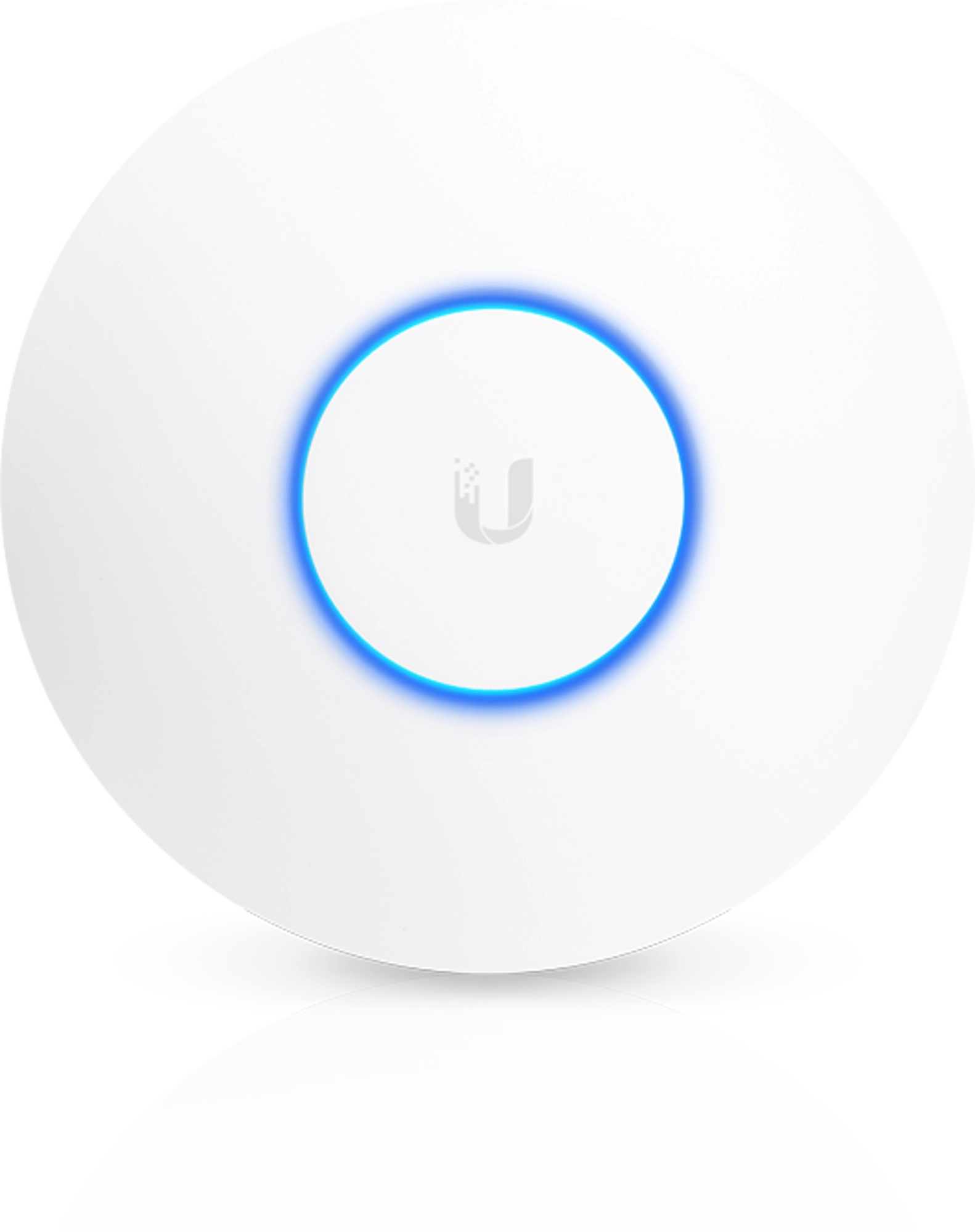

Ubiquiti UAP-AC-HD-US
SKU: UBI-UAP-AC-HD-US
MPN: UAP-AC-HD-US
Description
Dual-band, 802.11ac Wave 2 access point designed to support high-density networks and critical system applications.
Send to a friend!
SKU: UBI-UAP-AC-HD-US
MPN: UAP-AC-HD-US
Dual-band, 802.11ac Wave 2 access point designed to support high-density networks and critical system applications.
Send to a friend!
| SKU | UAP-AC-HD-US |
|---|---|
| Manufacturer | Ubiquiti |
| Type | Access Point |
| Standard | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n |
| Frequency Band | Dual-Band |
| Data Rate | 1733Mbps, 800Mbps |
| Security | WEP, WPA, WPA2 |
| Weatherproof | Indoor, Outdoor |
The UAP-AC-HD-US from Ubiquiti is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4×4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
Features
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of deploying the compact UniFi Cloud Key with built-in software.
The UniFi HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Configure and manage your APs with the easy-to-learn user interface.
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a fivepack) and expand to thousands while maintaining a single unified management system.
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFis rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
The UniFi Controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an APs radio.
| SKU | UAP-AC-HD-US |
|---|---|
| Manufacturer | Ubiquiti |
| Type | Access Point |
| Standard | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n |
| Frequency Band | Dual-Band |
| Data Rate | 1733Mbps, 800Mbps |
| Security | WEP, WPA, WPA2 |
| Weatherproof | Indoor, Outdoor |
Ubiquiti
The UAP-AC-HD-US from Ubiquiti is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4×4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.
