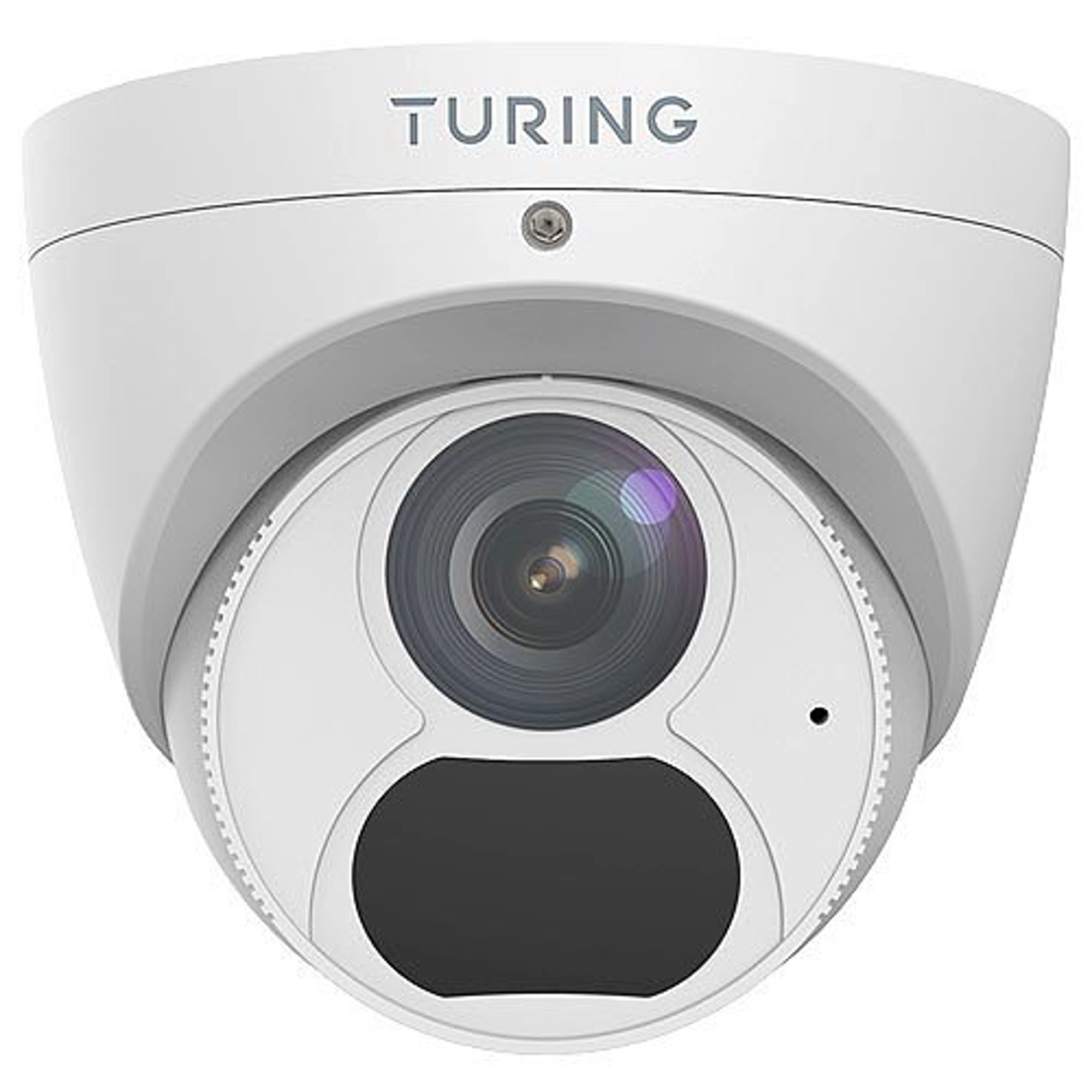

Turing TP-MED5M28

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: TUR-TP-MED5M28

MPN: TP-MED5M28

UPC: 810087240523

Description

5MP TwilightVision IP Camera 2.8mm, Mic, IP67 Human Vehicle AI

Send to a friend!

CAMERA

VIDEO

Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate
Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;
CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas


AUDIO

STORAGE

INTELLIGENCE

EVENTS

Basic Detection Motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

NETWORK

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
INTERFACES Networks 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported

CERTIFICATIONS

GENERAL

Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Dimensions ( x H) 110.5 x 94.1mm (4.4 x 3.7)
Net Weight 0.425kg (0.93lb)
Material Metal
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F), Humidity: =95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: =95% (non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button N/A
