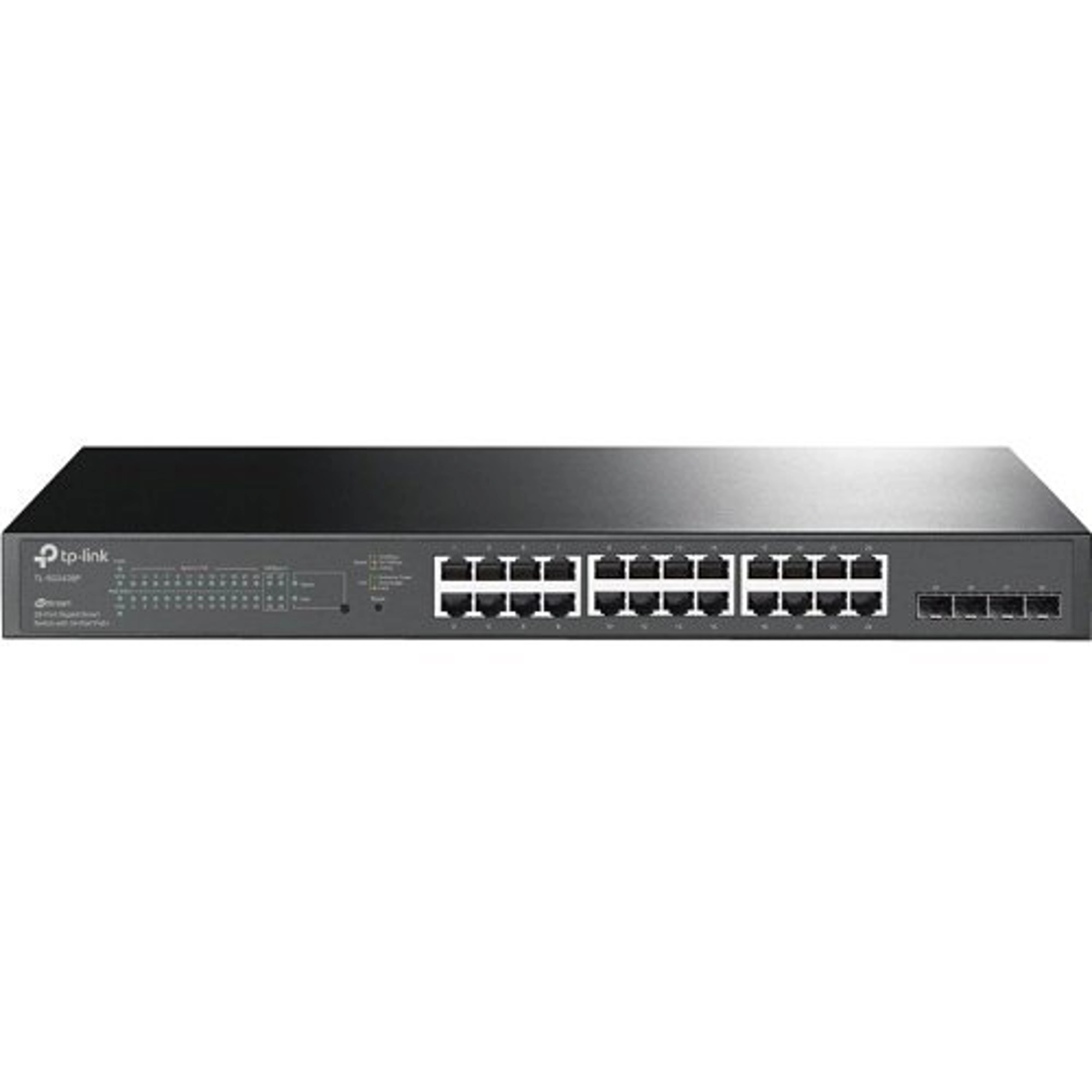

TP-Link SG2428P

Brand NameTP-LinkManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SG2428PProduct LineJetStreamProduct ModelTL-SG2428PProduct NameJetStream 28-Port Gigabit Smart Switch with 24-Port PoE+Product TypePoE, Managed

Expansion Slot TypeSFP (mini-GBIC)Number of SFP Slots4Number of Total Expansion Slots4

ModularYesNetwork (RJ-45)YesPort/Expansion Slot Details24 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet Expansion SlotTotal Number of Network Ports28

ManageableYes

Network Technology10/100/1000Base-T, 1000Base-X

• Environmental CertificationRoHSEnvironmentally FriendlyYesPackage ContentsJetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

TAA CompliantNo

Ethernet TechnologyGigabit EthernetLayer Supported4Networking StandardsIEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Compatible Rack Unit1UDepth8.7″Depth (mm)220.98Form FactorDesktop Mount, Rack MountHeight1.7″Height (mm)43.942Width17.3″Width (mm)439.42

Frequency50 Hz|60 HzFrequency (Hz)50.000, 60.000Input Voltage120V AC, 230V ACPoE (RJ-45) PortYesPoE Budget250WPoE Budget (W)250Power Consumption (W)32.100Power SourcePoE, Power Supply

Media Type SupportedOptical Fiber, Twisted PairPower Consumption32.10W

Limited Warranty5-year

Software Defined Networking (SDN) with Cloud Access

Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable networkall controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• 250 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
• Full Gigabit Ports: 24 gigabit PoE+ ports and 4 gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

TL-SG2428P

Realize More Possibilities with Omada
