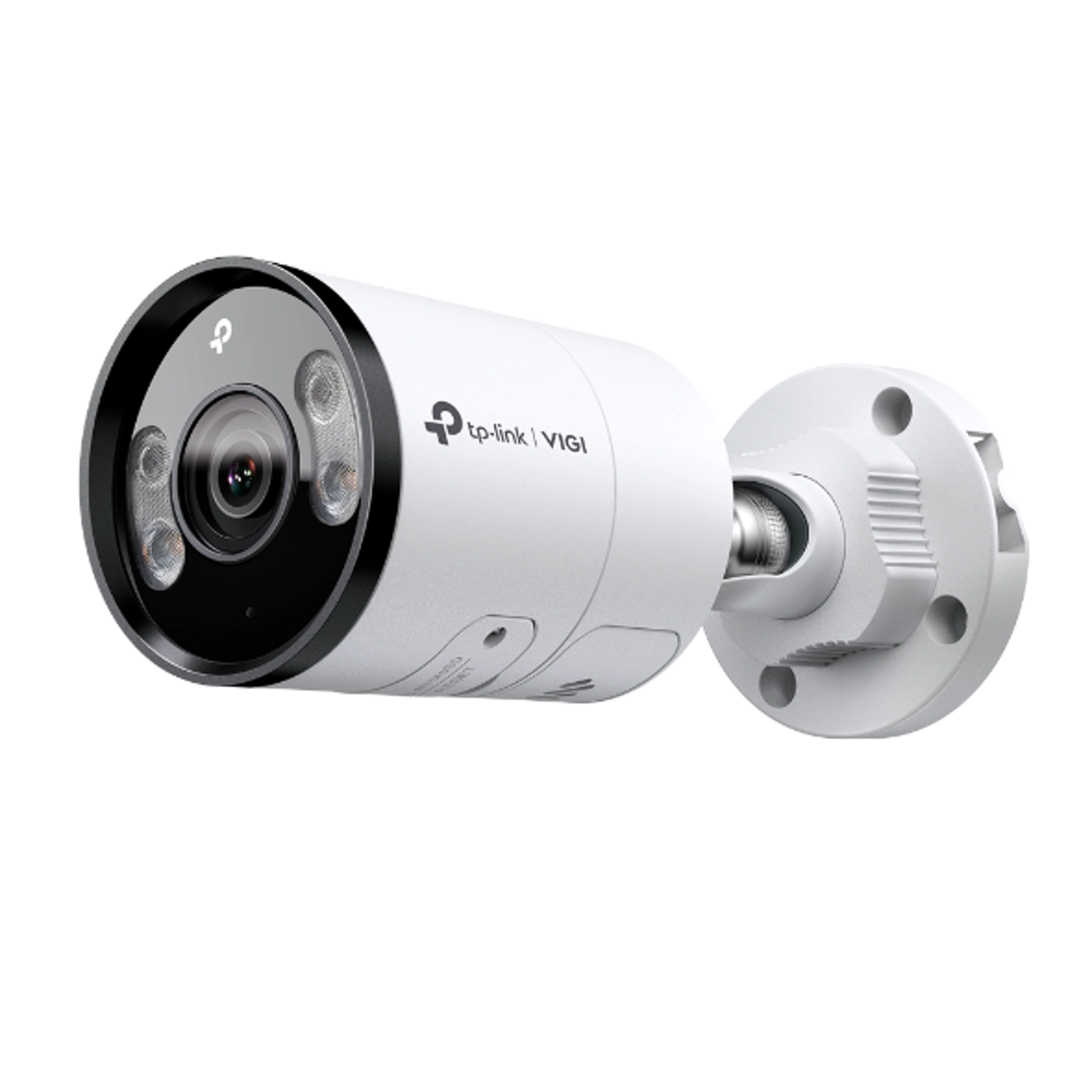

TP-Link InSight S385 (4mm)

CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 2.8/4 mm
Aperture F1.6
FOV • 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

• 4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
Lens Mount M12*P 0.5
DORI Distance • 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 3840 X 2160
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080,
1280×720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
848×480, 704×576, 640×480, 640×360, 352×288, 320×240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 8 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR = 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API ONVIF (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS,VIGI Cloud VMS
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight 0.525 Kg
Power Supply • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 11.5 W
Protection IP67
Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC

4K (8MP) Ultra HD and 24h Full-Color
People & Vehicle Analytics§
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology
12V DC/PoE

InSight S385
