TechLogix MM9-LC

SKU: TLX-MM9-LC

MPN: MM9-LC

Description

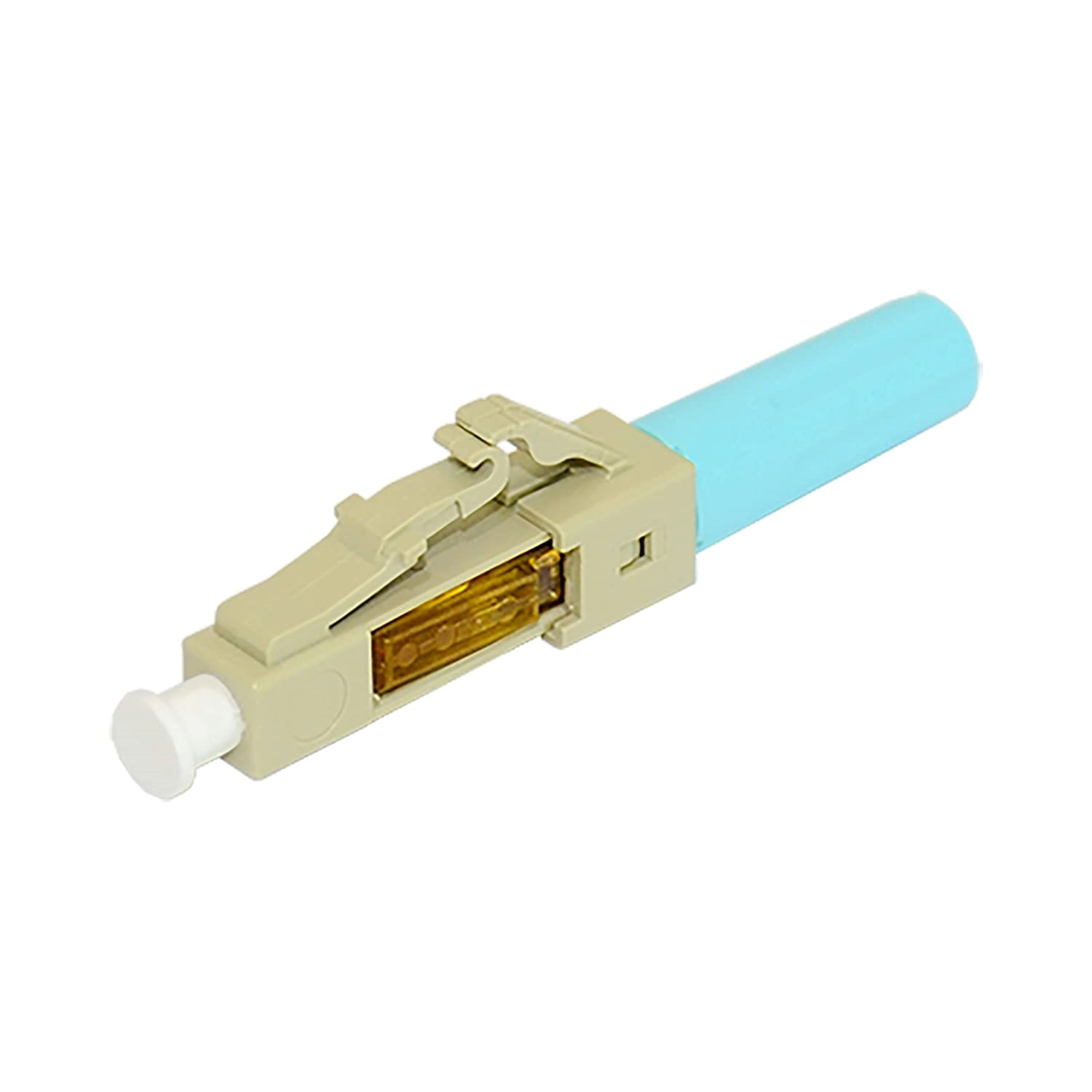

Multimode 900um LC click-on connector -- 1 unit

Send to a friend!

Brand Name

Platinum Tools

Manufacturer

Platinum Tools, Inc

Manufacturer Part Number

MM9-LC

Packaged Quantity

Product Name

Netwok Connector

Product Series

ECO Series

Product Type

Network Connector

Connector Type

LC Network Male

Environmental Certification

RoHS 3

Environmentally Friendly

Yes

Features

Dust Protection, Latch Lock, Strain Relief

Color

Blue

Connector Details

LC Network Male

LC type connectors
Pre-polished for UPC (standard) and APC (angled) connections
Compatible with single mode (OS1 and OS2) and multimode (OM1, OM2, OM3 and OM4) cable
Compatible with 250m, 900m and 2.0mm cable, including distribution and zip-cord formats
No proprietary tools required
No epoxy, crimping or polishing required
Built-in verification window showing proper termination
Self-centering alignment groove for easy and reliable insertion of the fiber optic strand
Built-in button for one click termination and locking jig release
Average termination time around two minutes

LC type connectors
Pre-polished for UPC (standard) and APC (angled) connections
Compatible with single mode (OS1 and OS2) and multimode (OM1, OM2, OM3 and OM4) cable
Compatible with 250m, 900m and 2.0mm cable, including distribution and zip-cord formats
No proprietary tools required
No epoxy, crimping or polishing required
Built-in verification window showing proper termination
Self-centering alignment groove for easy and reliable insertion of the fiber optic strand
Built-in button for one click termination and locking jig release
Average termination time around two minutes
