Speco Technologies A8P

• Lock power located on left / right sides
• 5 IEC Cord Included
• 8 Auto Resetting Fused Outputs
• Isolated power for readers & controller
• Selectable 12 or 24 VDC per output
• LED status for voltage, power short and fire input triggered
• Fire Drop Input
• Power Supervision log and action
• Battery Backup (batteries not included)
• Battery Backup for 12- and 24-volt outputs

• Equivalent to having two A2E4Ps in one can
• Contains two 4-door modules in one housing
• Each module can function as a Server, Client or Elevator
• Integrated 150-Watt power supply for complete system power

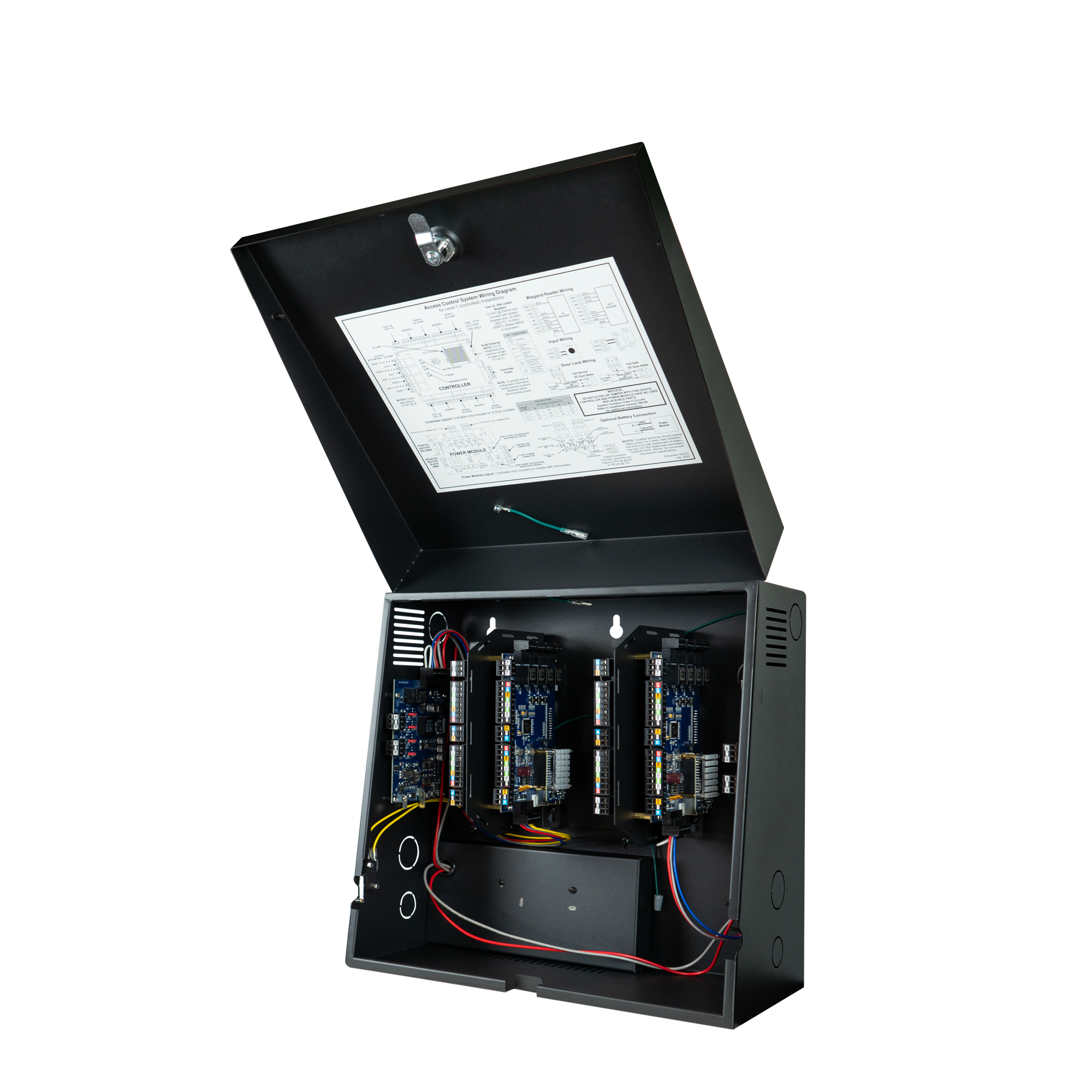

• Wedge Open enclosure design provides easy access to wiring
• Lid removal disconnect pins for fast access to hardware
• Tie downs support dual sided strapping for wire management
• Cut Back Housing allows for wiring accessibility
• and easier to see your work
• Mounting bar has wiring tie down slots for wire management
• on both sides of bar
• ETL UL 294
• 5 year hardware warranty

Eight Door Controller with Lock Power

A8P

Integrated power for all of the panels, readers and locks

• Cutsheet
