Shure MX153T/O-TQG
SKU: SHR-MX153T/O-TQG
MPN: MX153T/O-TQG
UPC: 42406060875
Description
Headworn Mic omnidirectional Tan
Send to a friend!
SKU: SHR-MX153T/O-TQG
MPN: MX153T/O-TQG
UPC: 42406060875
Headworn Mic omnidirectional Tan
Send to a friend!
Transducer Type : ………………… Electret Condenser
Polar Pattern: ………………………..Omnidirectional
Frequency Response from: ……..20 to 20,000 Hz
Output Impedance……………N/A
Frequency Response to:………………. 20,000 KHz
Sensitivity (open circuit voltage, @ 1 kHz, typical)………-41 dBV/Pa (9 mV)
Equivalent Selfnoise: …………………34 dB
Maximum SPL 1 kHz at 1% THD (1000O load) ………. 2500 O load: 107 dB SPL || 1000 O load: 107 dB SPL
Signal-To-Noise Ratio……………….60 dB
Dynamic Range @ 1 kHz(1000O load)………….. 2500 O load: 73 dB || 1000 O load: 73 dB
Self Noise (equivalent SPL, A-weighted, typical)……………34 dB
Common Mode Rejection (20 to 20,000 Hz) ………………N/A
Polarity………….Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1
Power Requirements………….+1-5 V DC (500 µA maximum)
Weight…………19.76g
Fit the earset over the ear with the ear support piece placed behind the earlobe. The wire extends over the ear to the tip of the mouth. Adjust the earset with small bends. Do not bend the boom arm beyond 20°
Features
Subminiature, omnidirectional cartridge offers superior speech clarity and enhanced plosive protection with no proximity effect
Terminated with TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
Ultra-Lightweight, Comfortable, Flexible design is stable and easy to place over either ear
CommShield® Technology guards against interference from Cellular RF devices and digital bodypack transmitters
Kevlar® Reinforced, Soft Flex Cable
Matte Black, Tan, and Cocoa color options available
Includes protective storage pouch, 3 windscreens, and collar clip
Shure

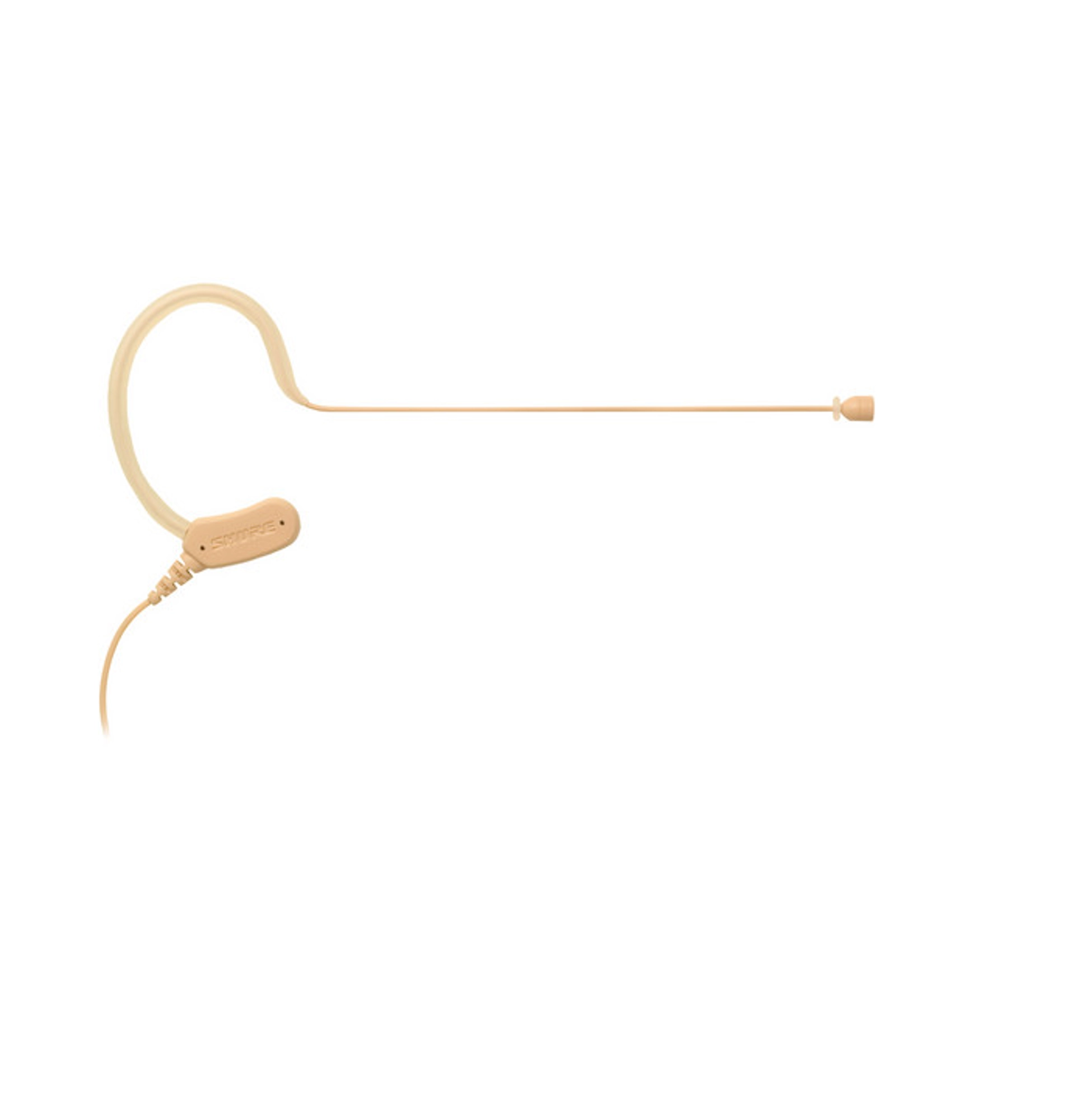

The Shure Microflex® MX153 is a professional subminiature earset microphone ideal for speech and other applications requiring low-profile discreet placement where improved gain before feedback over lavalier microphones is desired.
Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A/V conferencing and live sound reinforcement.
Additionally, Commshield® Technology offers superior RF immunity from cellular devices and digital bodypack transmitters.
Available in three color options and direct TA4F connectivity to Shure bodypacks, the MX153 provides outstanding clarity in an extremely comfortable, over the ear design.
