Shure GLXD6+=-Z3
SKU: SHR-GLXD6+=-Z3
MPN: GLXD6+=-Z3
UPC: 42406696319
Description
GLXD6+ WIRELESS GUITAR PEDAL RECEIVER
Send to a friend!
SKU: SHR-GLXD6+=-Z3
MPN: GLXD6+=-Z3
UPC: 42406696319
GLXD6+ WIRELESS GUITAR PEDAL RECEIVER
Send to a friend!
Wireless Technology
Digital 2.4 GHz/5.8 GHz
Diversity
True Digital Diversity
Max Operating Range
100′ / 30.5 m (Line of Sight)
Receiver Type
Pedalboard
Number of Audio Channels
1
Audio I/O
1x 1/4″ TS Female Unbalanced Instrument Input
1x 1/4″ TRS Female Balanced Instrument Output
Network I/O
No
Power Requirements
AC/DC Power Adapter
Diversity
True Digital Diversity
RF Frequency Band
Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth
208.5 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
100′ / 30.5 m (Line of Sight)
Max Transmitters per Band
8
Timecode Support
No
Mobile App Compatible
No
Modulation
Proprietary
Receiver
Receiver Type
Pedalboard
Mounting Options
Pedalboard (with Included Hardware)
Antenna
2x External, Fixed (Top-Mount)
Number of Audio Channels
1
Audio I/O
1x 1/4″ TS Female Unbalanced Instrument Input
1x 1/4″ TRS Female Balanced Instrument Output
Audio Output Level
1/4″ Output:
+8.5 dBV
Frequency Response
20 Hz to 20 kHz (Dependent on Mic)
Network I/O
No
Network Protocols
No
Word Clock I/O
No
USB/Lightning Connectivity
1x USB-C Female (Firmware Update)
USB Class-Compliant
No USB Connectivity
Standalone Audio Interface Capable
No
Approximate RF Sensitivity
-88 dBm
RF Output Power
10 mW (EIRP, Max)
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
9 to 15 VDC at 400 mA, Center-Positive or Negative (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Display & Indicators
1x Backlit LED (Channel, Group)
1x Multi-Segment LED (Transmitter Battery Status)
Housing
Aluminum
Operating Temperature
32 to 122°F / 0 to 50°C
Dimensions
3.7 x 1.9 x 5.4″ / 95 x 48 x 138 mm
Weight
19.8 oz / 560 g

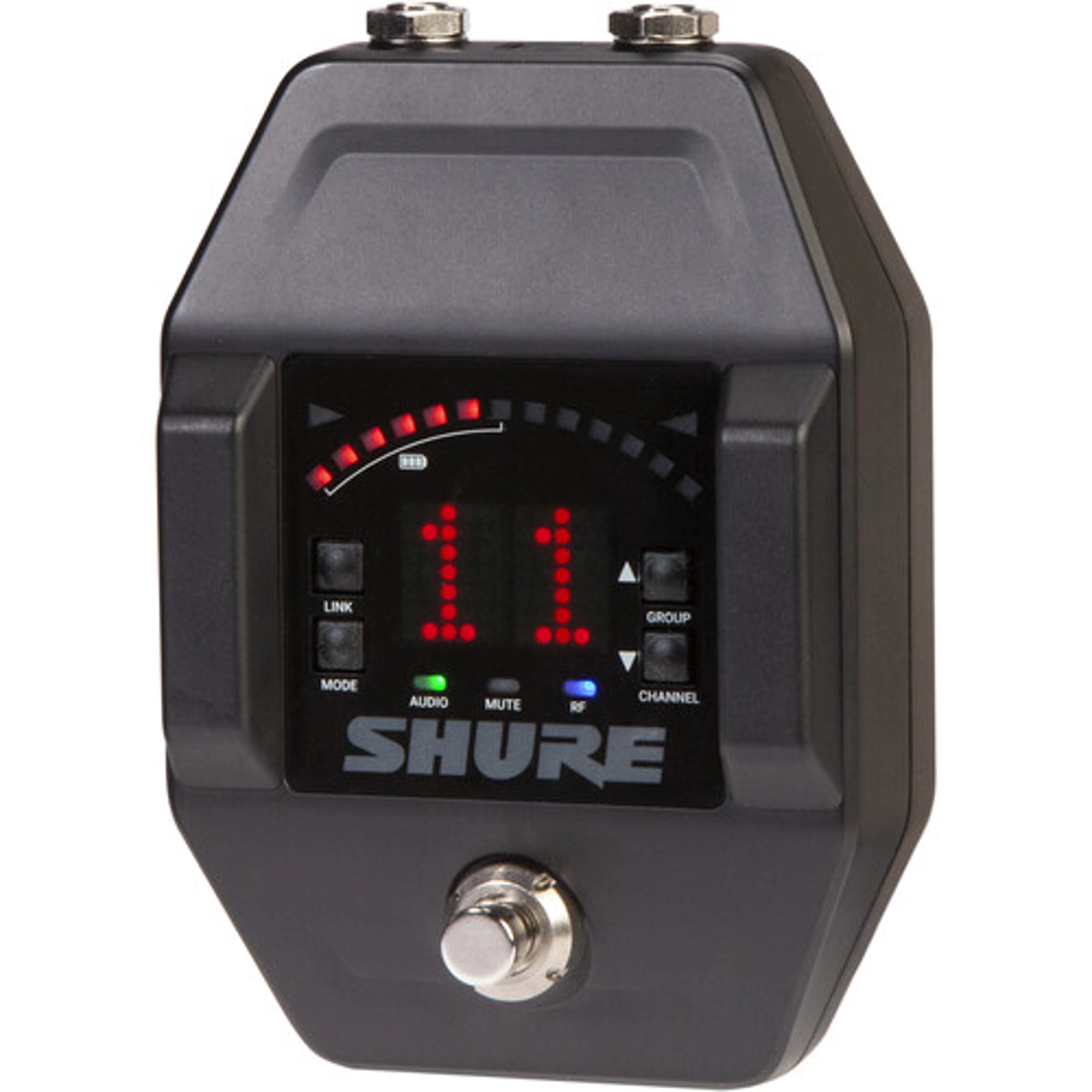

Part of the Shure GLX-D+ system and available as an individual component to be used as an additional or backup receiver, or as a replacement unit, the GLXD6+ is a single-channel digital wireless audio receiver compatible with the GLXD1+ bodypack transmitter (available separately). The unit is housed in a rugged metal pedalboard-ready chassis with two fixed faceplate antennas, and it features a built-in tuner with an easy-to-see display.
Dual-Band Technology for Easy and Reliable Wireless Performance
GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.
The previous GLX-D only worked in the 2.4 GHz range, which offers 83.5 MHz of bandwidth. By expanding into the 5.8 GHz range, the GLX-D+ provides an additional 125 MHz worth of potential open frequencies for available channels, helping to minimize dropouts and enhance reliability.
The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.
In addition, the GLX-D+ transmits on its own main frequency just like a traditional system, but it also transmits on 2 extra “backup frequencies” at the same time. If the system detects interference on the main frequency, it will switch to one of the backups automatically without the user even knowing.
Besides the additional spectrum, there are other benefits to in operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range is home for Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers, and more. Operating in this range means competing with these devices for the same space.
GLX-D+ receivers typically allow you to run up to 4 transmitters simultaneously in the same space. Under ideal conditions, up to 8 systems can be used.
If you need more transmitters at once, consider the GLXDR+ half-rack receiver, which offers removable antennas and can accommodate the GLXD+FMZ3/LC Frequency Manager (available separately). The frequency manager allows up to 11 transmitters to operate simultaneously (16 under highly optimal conditions) making it ideal for installations with multiple wireless systems.
