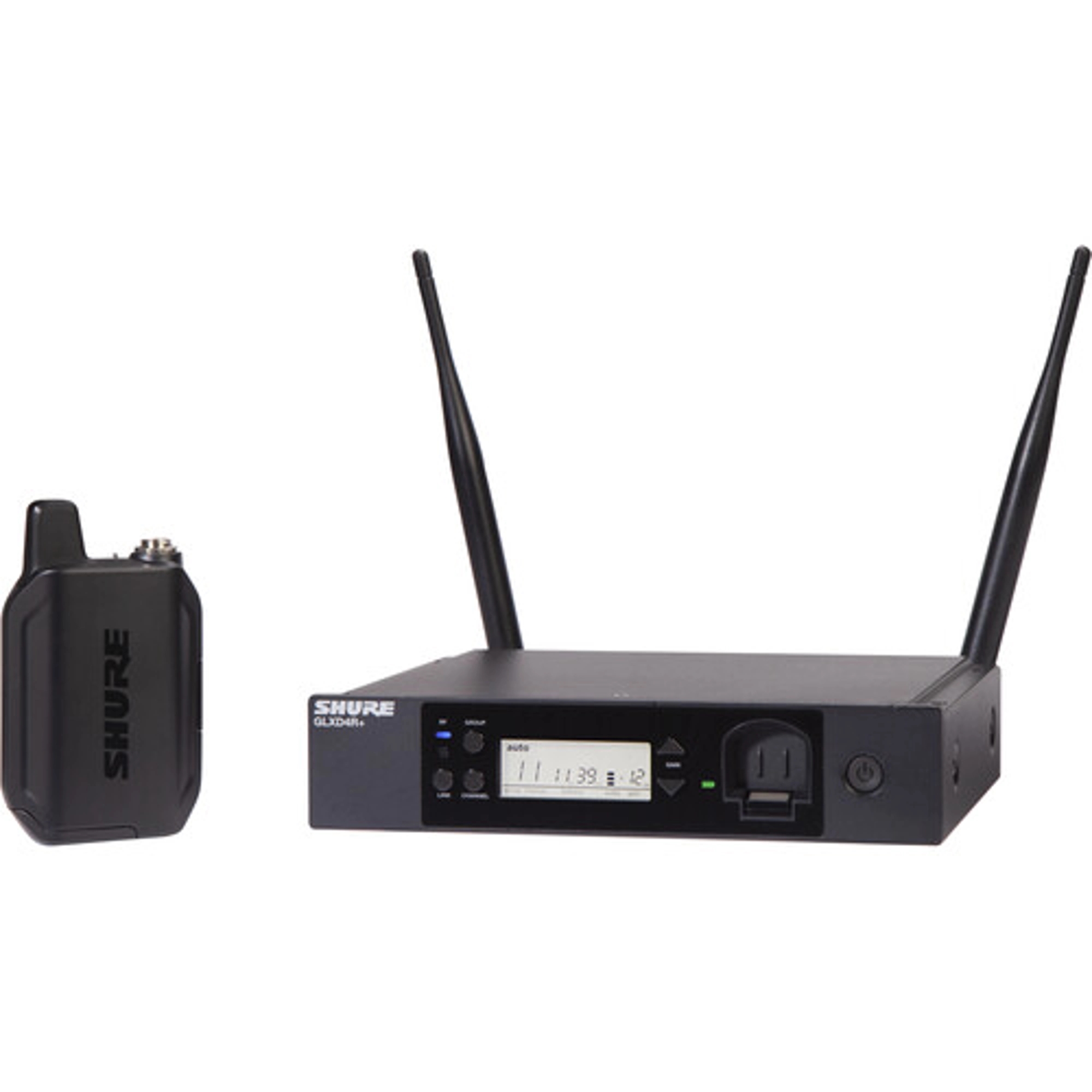

Shure GLXD14R+ (Z3)
SKU: SHR-GLXD14R+-Z3
MPN: GLXD14R+-Z3
UPC: 42406695749
Description
1-Channel Dual-Band Digital Rack Mount Half-Rack Wireless Microphone Reciever System with WA302 Guitar Cable Z3 Frequency
Send to a friend!
Key Specs
Wireless Technology
Digital 2.4 GHz/5.8 GHz
Included Transmitters
1x Bodypack
Diversity
True Digital Diversity
Max Operating Range
100′ / 30.5 m (Line of Sight)
Receiver Type
Rackmount
System
Wireless Technology
Digital 2.4 GHz/5.8 GHz
Included Transmitters
1x Bodypack
Diversity
True Digital Diversity
RF Frequency Band
Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
RF Bandwidth
208.5 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
100′ / 30.5 m (Line of Sight)
Max Transmitters per Band
8
Mobile App Compatible
No
Latency
4.5 to 8 ms
Dynamic Range
120 dBA
Modulation
Proprietary
Receiver
Receiver Type
Rackmount
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Output
1x 1/4″ TRS Female Balanced Output
Pad
30 dB
Audio Output Level
XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4″ Output:
+12 dBV
Frequency Response
20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity
1x USB-C Female (Firmware Update)
Impedance
XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
Approximate RF Sensitivity
-88 dBm
Spurious
Rejection: >35 dB
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
14.5 to 17 VDC at 600 mA (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Display & Indicators
1x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Operating Temperature
32 to 113°F / 0 to 45°C
Dimensions
7.8 x 1.7 x 6.4″ / 197 x 42 x 163 mm (without Antennas)
Weight
30.5 oz / 866 g
Transmitter
Transmitter Type
Bodypack
RF Output Power
10 mW (EIRP)
Audio I/O
1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
Included Cable Connector
No
Pad
No
Muting
Off/On Switch
Audio Input Level
-8.4 dBV / 7.5 V p-p
Gain Range
-18 to +42 dB (1 dB Steps)
Sync Method
Proprietary
Antenna
1x Internal, Fixed (Beltpack)
Power Requirements
Battery
Battery Type
1x Shure SB904 (Included, Replaceable)
Internal Battery Capacity
2420 mAh
Battery Charging Time
.25 to 3 Hours
Approx. Battery Life
12 Hours (Lithium Rechargeable)
USB/Lightning I/O
1x USB-C (Charging)
Display & Indicators
1x LED (Battery Status, Sync)
Housing
Metal
Dimensions
2.6 x 4.5 x 1.1″ / 67 x 115 x 28.5 mm
Weight
5.4 oz / 153.1 g (without Batteries)
Packaging Info
Package Weight
6.925 lb
Box Dimensions (LxWxH)
18.6 x 13.8 x 4.4″
Bodypack Transmitter and WA302 Guitar Cable
This version of the GLXD14+ is configured with a bodypack transmitter and the WA302 guitar cable, a 2.5′ instrument cable with a 4-pin mini connector (TA4F) on one end and a 1/4″ connector on the other.
The rugged, metal chassis on the GLXD1+ transmitter offers an ergonomic design and a comfortable fit with a convenient on/off switch that can be operated by feel.
Up to 12 hours of operation are supplied by the included SB904 rechargeable lithium-ion battery. A red and green LED indicator shows sync and battery statuses at a glance.
Half-Rack Receiver
This configuration includes a metal half-rack receiver with front-panel charging for the SB904 battery and an easy-to-read display that shows pertinent information.
The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components.
The transmitter’s input gain can be wirelessly adjusted right from the receiver’s front panel to optimize the audio signal.
The rear panel provides a balanced XLR output switchable between mic and line levels along with a balanced 1/4″ Inst/Aux output.
Reliable Dual-Band Technology
GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.
The previous GLX-D only worked in the 2.4 GHz range, which offers 83.5 MHz of bandwidth. By expanding into the 5.8 GHz range, the GLX-D+ provides an additional 125 MHz worth of potential open frequencies for available channels, helping to minimize dropouts and enhance reliability.
The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.
In addition to the main transmission frequency, the GLX-D+ is constantly monitoring 2 extra “backup frequencies”, so if the system detects interference, it will switch to one of the backups automatically without the user even knowing.
Besides the additional spectrum, there are other benefits to in operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range is home for Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers, and more. Operating in this range means competing with these devices for the same space.
Intelligent Battery Rechargeability
The GLXD1+ bodypack transmitter runs on an intelligent SB904 rechargeable lithium-ion battery (included).
The battery provides up to 12 hours of continuous use on a full charge.
The transmitter automatically powers off after approximately 1 hour to conserve battery life if the signal from a linked receiver is not detected.
The SB904 battery can be recharged in the GLXDR4+ receiver’s charging bay (located on the front panel). The charging bay can also be used to recharge a spare battery while the transmitter is in use.
Alternately, the SB904 can be recharged while in the bodypack transmitter with a USB charging cable.
Just a 15-minute quick charge provides 1.5 hours of use.
The SB904’s remaining battery life is displayed in hours and minutes from the receiver’s front panel.
Expandable to 11 Microphone Channels
GLX-D+ receivers typically allow you to run up to 4 mics simultaneously in the same space without using remote antennas and a frequency manager. Under ideal conditions, up to 8 systems can be used this way.
This GLXDR+ half-rack receiver includes removable antennas, allowing you to mount the antennas on the front panel for improved reception (cables and hardware included) and expand the system to accommodate more microphone channels.
If you’re only using two or three receivers at once, consider adding the UA221DB-RSMA kit, which includes two passive antenna splitters to route the RF signals from a single pair of antennas to all the receivers. Using only two antennas for all the receivers helps to avoid intermodulation problems for better reception.
If you need four or more microphone channels, consider adding the GLXD+FM Frequency Manager, which allows up to 11 mics to operate simultaneously (16 under highly optimal conditions) making it ideal for installations with multiple wireless systems.
To maximize signal reception and reliability, consider adding a pair of PA805DB-RSMA Dual-Band Passive Directional Antennas, which offer improved filtering of interference and deliver a 24 dB front-to-back rejection ratio of off-axis signals to improve reception by up to 8 dB.
Add Functionality to Your System
Shure offers a variety of headset, instrument, and handheld microphone options to adapt your GLX-D+ system as your needs evolve.
Instrumentalists
The WB98H/C flexible gooseneck instrument microphone attaches to brass, woodwind, and percussion instruments.
Presenters/Performers
The WL93 omnidirectional lavalier mic offers consistent pickup, even when the performer turns away from the mic.
The WL183 lavalier mic features a cardioid pickup pattern that helps to focus audio capture on the talent, reducing feedback when sound reinforcement equipment is used.
The discreet MX153 miniature earset mic provides exceptional clarity in spoken word applications.
Shure offers several headset options. Choose a PGA31 headset for everyday applications or try the SM31 Fitness or SM35 Performance models for more active presentations.
Vocalists/Presenters
The GLXD2+ handheld transmitter is available with a variety of mic capsule options for presenters and performers who prefer the flexibility of a handheld microphone including the SM58, BETA 58A, and BETA 87A capsules.
Key Features
For Performers & Musicians
WA302 Guitar Cable
Lightweight Bodypack Transmitter
Metal Half-Rack Receiver
-
Brand:
Shure
The Shure GLXD14R+ is a rackmountable digital wireless guitar system that offers reliable performance and outstanding sound quality in a package that’s simple to use, even if you’ve never operated a wireless system before. Shure’s next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your application at a typical range of up to 100′ indoors and 65′ outside.
