Seco-Larm SM-4104-TQ/W
SKU: SEC-SM-4104-TQ/W
MPN: SM-4104-TQ/W
Description
3/4"" RECESSED CONTACT HW WHITE WITH TERMINALS
Send to a friend!
SKU: SEC-SM-4104-TQ/W
MPN: SM-4104-TQ/W
3/4"" RECESSED CONTACT HW WHITE WITH TERMINALS
Send to a friend!
Loop Type Closed loop
Electrical Configuration N/O
Operation Gap 1″ (25mm)
Color White
Material – Case High-impact ABS plastic
Material – Terminals Gold-plated
Contacts Iridium-plated
Contact Rating 1.0A@10VDC (max), 10W (max)
Operating Temperature -15°~160°F (-25°~70°C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 1-3/16″ x 15/16″ x 3/8″ (30 x 24 x 9 mm)
Magnet Dimensions 1-3/16″ x 15/16″ x 1/2″ (30 x 24 x 13 mm)
Magnet Type Rare-earth Neodymium alloy
Loop Type Closed loop
Electrical Configuration N/O
Operation Gap 1″ (25mm)
Color White
Material – Case High-impact ABS plastic
Material – Terminals Gold-plated
Contacts Iridium-plated
Contact Rating 1.0A@10VDC (max), 10W (max)
Operating Temperature -15°~160°F (-25°~70°C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 1-3/16″ x 15/16″ x 3/8″ (30 x 24 x 9 mm)
Magnet Dimensions 1-3/16″ x 15/16″ x 1/2″ (30 x 24 x 13 mm)
Magnet Type Rare-earth Neodymium alloy
Seco-Larm

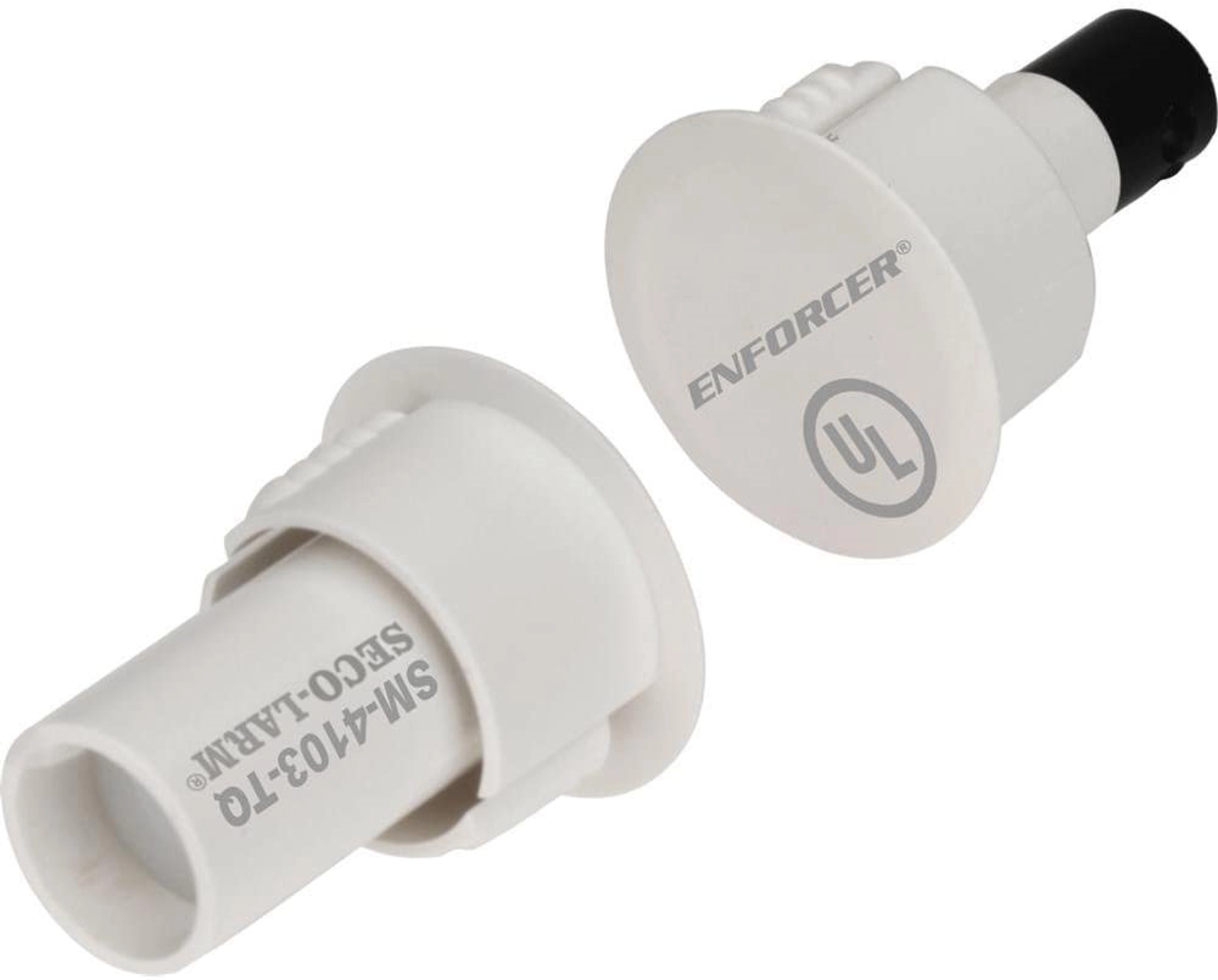

3/4″ Steel-Door Quick-Connect Terminals Recessed-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop, UL Listed
SM4104-TQ-W
