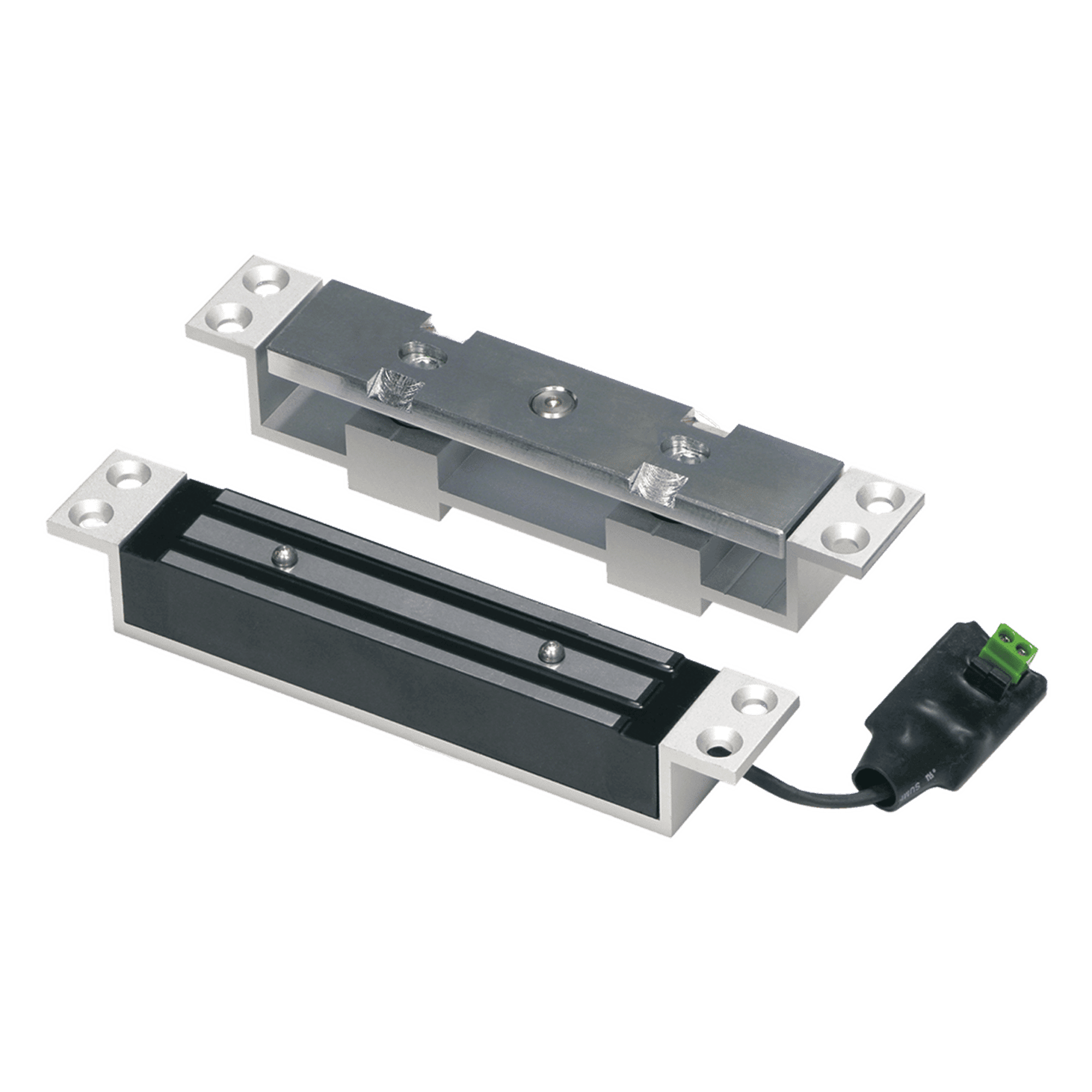

Seco-Larm SD-993B-SS

SKU: SEC-SD-993B-SS

MPN: SD-993B-SS

Description

Electric shear lock. 1,500-lb Holding force. Fail-safe (door unlocks when power is lost) operation. 12 or 24 VDC Operation.

Add to Wishlist

Send to a friend!

Spring-loaded locking bolts and magnetic bond holds doors securely in place with approximately 1,500 pounds (680kg) of shear holding force
No residual magnetism
MOV Surge protection
Concealed security for remote access and exit control of aluminum and steel doors or gates
Smaller size for use with most metal door jambs
Zinc-plated magnet and armature, anodized aluminum housing
Works with sliding, single-action, and double-action (swing-through) doors and gates
Use with an optional digital keypad for keyless high security
Easily connects to SECO-LARMs Electronic Keypads
Fail-safe operation (unlocks if power is lost)
Armature plate adjusts to compensate for gaps between door and frame
Complete mounting hardware for typical installations
Additional brackets available for surface mounting or glass-door mounting
12/24VDC Selectable
Multiple UL listings
UL294 Access Control System Units USA
UL1034 Burglary Resistant Electric Lock USA

Operating Voltage12VDC or 24VDC

Current Draw420mA@12VDC, 210mA@24VDC

Door GapMax. 1/16 (2mm)

Holding Force1,500 lbs. (680 kg.)

Armature Assembly

Dimensions (Faceplate)7-1/8 x 1-3/16 x 1-5/8 (180 x 30 x 42 mm)

Magnet Housing Dimensions (Faceplate)7-1/8 x 1-3/16 x 1-1/16 (180 x 30 x 27 mm)

Weight2lbs., 8oz. (1.1kg)

Type:
Door Hardware
Door Hardware Type:
Maglock
Brand:
Seco-Larm

SD-993B-SS

1,500-lb Electromagnetic Shear Lock, UL Listed

Concealed security for remote access and exit control of aluminum and steel doors or gates. Works with sliding, single-action, and double-action (swing through) doors and gates. Plated steel plugs and magnetic bond holds doors securely in place with approximately 1,500 pounds (680 kg) of shear holding force. Surface-Mount Brackets and U-Brackets also available for surface-mount and glass-door-mount applications.
