Seco-Larm EV-Y6501-A3WQ
SKU: SEC-EV-Y6501-A3WQ
MPN: EV-Y6501-A3WQ
Description

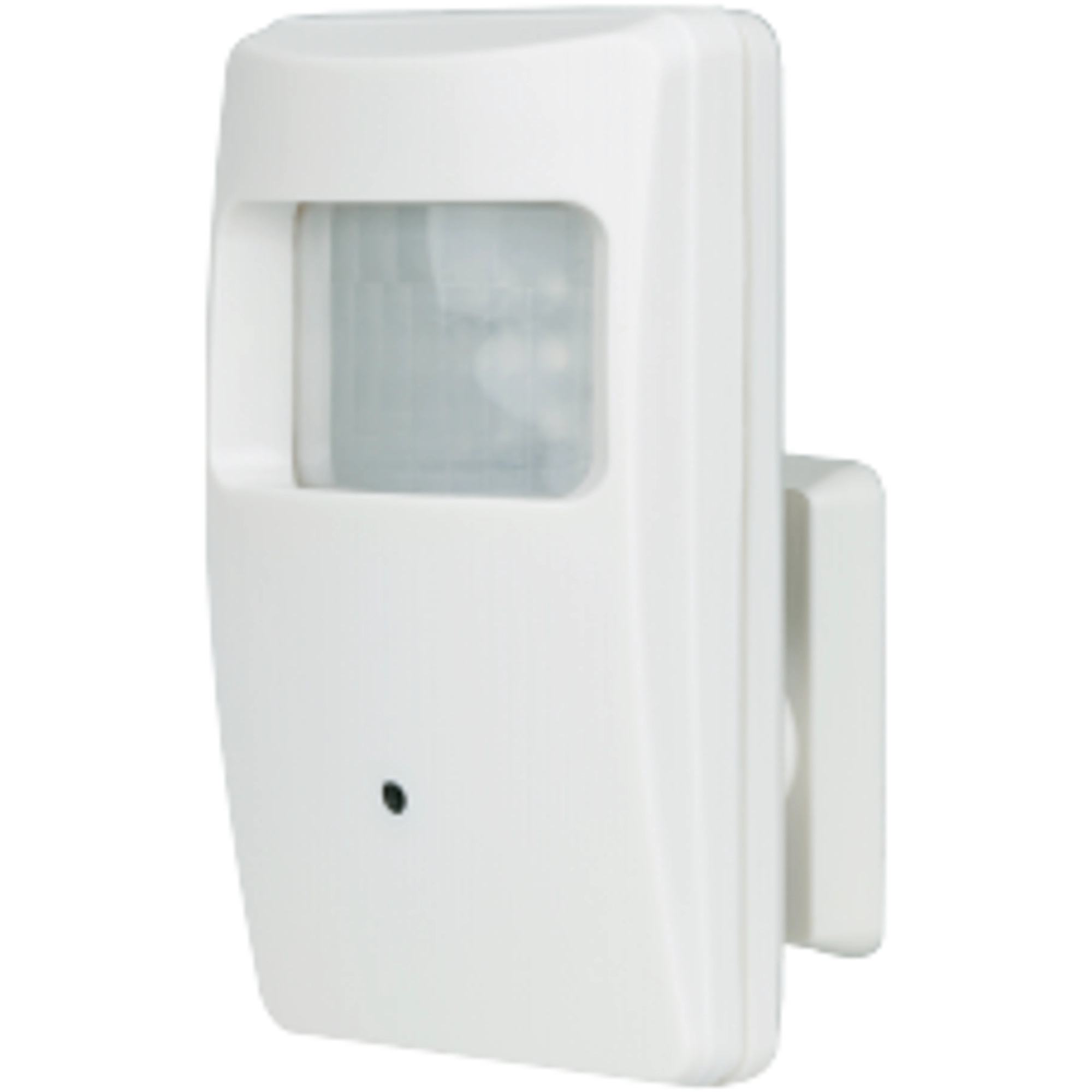

HD 5MP COVERT PIR CAMERA 3.7MM FIXED PINHOLE WDR 12VDC
Send to a friend!
SKU: SEC-EV-Y6501-A3WQ
MPN: EV-Y6501-A3WQ
HD 5MP COVERT PIR CAMERA 3.7MM FIXED PINHOLE WDR 12VDC
Send to a friend!
| Brand Name | Seco-Larm |
| Manufacturer Part Number | EV-Y6501-A3WQ |
| Item Description | 4-in-1 HD TVI, CVI, AHD, Analog Covert PIR Camera |
| Formats | TVI (Default) / CVI / AHD / Analog |
| CMOS | 1/2.8? 5MP Sony CMOS |
| Resolution (HD) | 25921944, 1440p |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 3.7mm Pinhole Lens |
| Viewing Angle | 120° |
| # of IR LEDs | 18 Covert (940nm) |
| IR Range | Up to 50ft (15m) |
| FPS | 20FPS |
| F Stop | 2.2 |
| Minimum illumination IR On | 0.1 Lux |
| Minimum illumination IR Off | 0.01 Lux |
| S/N Ratio | 50dB |
| Shutter control | AES (Auto Electric Shutter), 1/60~1/50,000 s |
| Gain control | Yes |
| Operating voltage | 80mA@12VDC |
| IP Rating | IP65 |
| Operating temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 4-1/16?x2-3/8? x1-5/16? (104x60x34 mm) |
| Weight | 12.3-oz (350g) |
| Signal Process | Digital |
| UNSPSC Code | 46171610 |
| Category | CCTV |
