Seco-Larm EV-Y2501-AMWQ
SKU: SEC-EV-Y2501-AMWQ
MPN: EV-Y2501-AMWQ
Description
HD 5MP OUTDOOR TURRET 2.8-12MM VF 12VDC ONVIF WHITE
Send to a friend!
SKU: SEC-EV-Y2501-AMWQ
MPN: EV-Y2501-AMWQ
HD 5MP OUTDOOR TURRET 2.8-12MM VF 12VDC ONVIF WHITE
Send to a friend!
| Brand Name | Seco-Larm |
| Manufacturer Part Number | EV-Y2501-AMWQ |

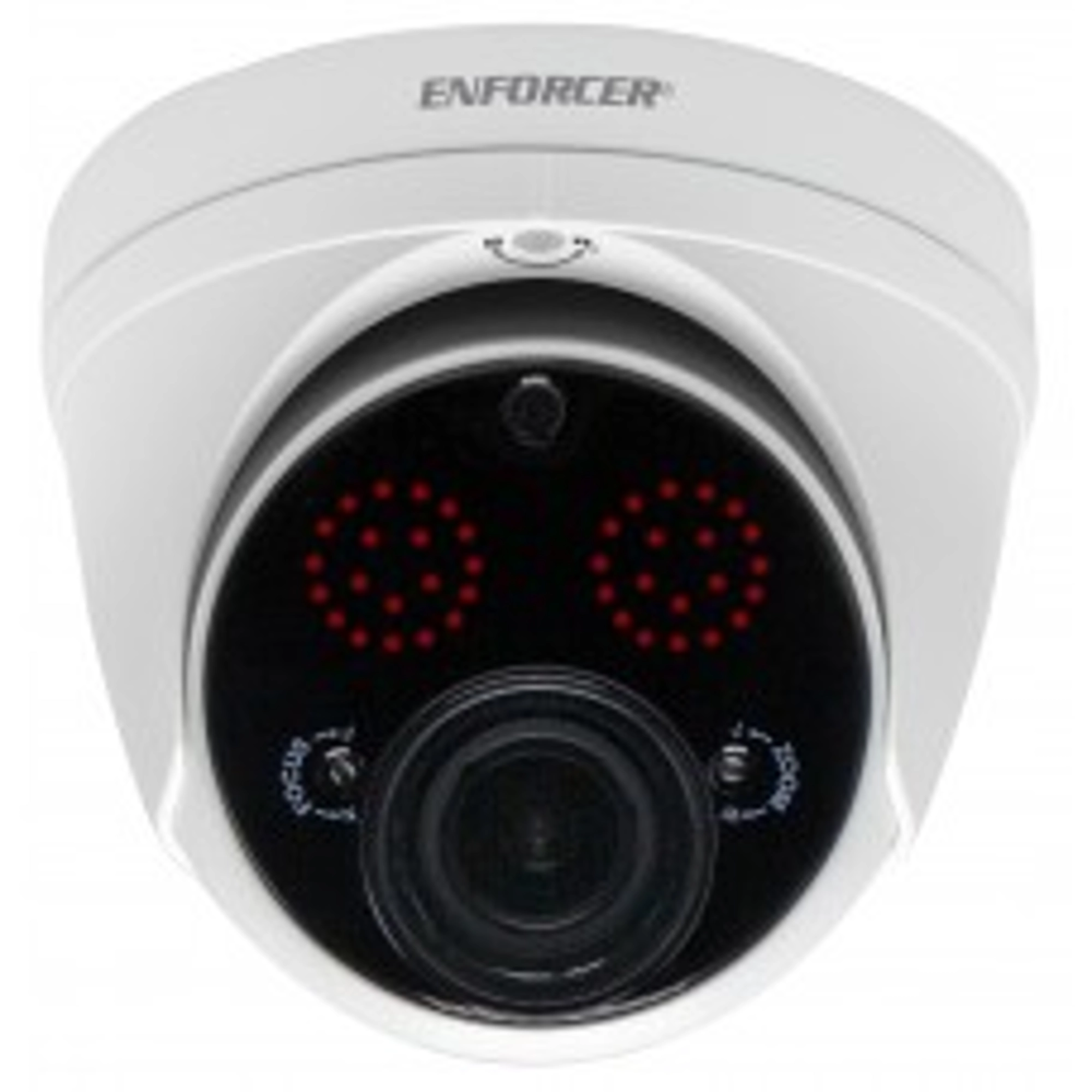

| Item Description | 4-in-1 HD TVI, CVI, AHD, Analog Varifocal Turret Camera |
| Housing color | White |
| Formats | TVI (Default) / CVI / AHD / Analog (CVBS) |
| CMOS | 1/2.7? 5MP CMOS |
| Resolution (HD) | 25921944 |
| 2DNR | Yes |
| D-WDR | Yes |
| OSD (On-Screen Display) | Yes |
| Cable OSD control | Yes |
| Megapixels | 5MP |
| Lens | 2.8~12mm ICR |
| Viewing Angle | 38°~138° |
| # of IR LEDs | 40 (SMT) |
| FPS | 20FPS |
| F Stop | 2.0 |
| Minimum illumination IR On | 0Lux |
| Minimum illumination IR Off | 0.05Lux |
| S/N Ratio | 35dB |
| Shutter control | Auto |
| Gain control | Auto |
| Operating voltage | 12VDC |
| Current Draw IR On | 440mA |
| Current Draw IR Off | 80mA |
| IP Rating | Weatherproof IP66 |
| Operating temperature | -22°~131° F (-30°~55° C) |
| Dimensions | 4-15/16?x4-5/16? (125x110mm) |
| Weight | 1-lb, 9.3-oz (720g) |
| UNSPSC Code | 39120000 |
