Holding Force12VDC: 80-lb (36kg)

24VDC: 110-lb (51kg)Operating Voltage12~24 VDC±10%Current Draw12VDC: 60mA

24VDC: 120mA

Destructive attack levelLevel ILine securityLevel IEndurance levelLevel IStandby powerLevel IOperating Temperature14º~131º F (-10º~55º C) DimensionsMagnet: 2-3/4 x 1-1/4 x 3/4 (70 x 31 x 19 mm)

Armature: 2-3/8 x 1-1/4 x 3/8 (60 x 31 x 9 mm)

Weight0.9-lb (410g)

• ETL, Conforms to UL Std. 294
• 80-lb (36kg) Holding force
• For spaces where small size is required, including cabinets, drawers, etc.
• Low current draw
• No residual magnetism
• MOV Surge protection
• Complete mounting hardware for typical installations

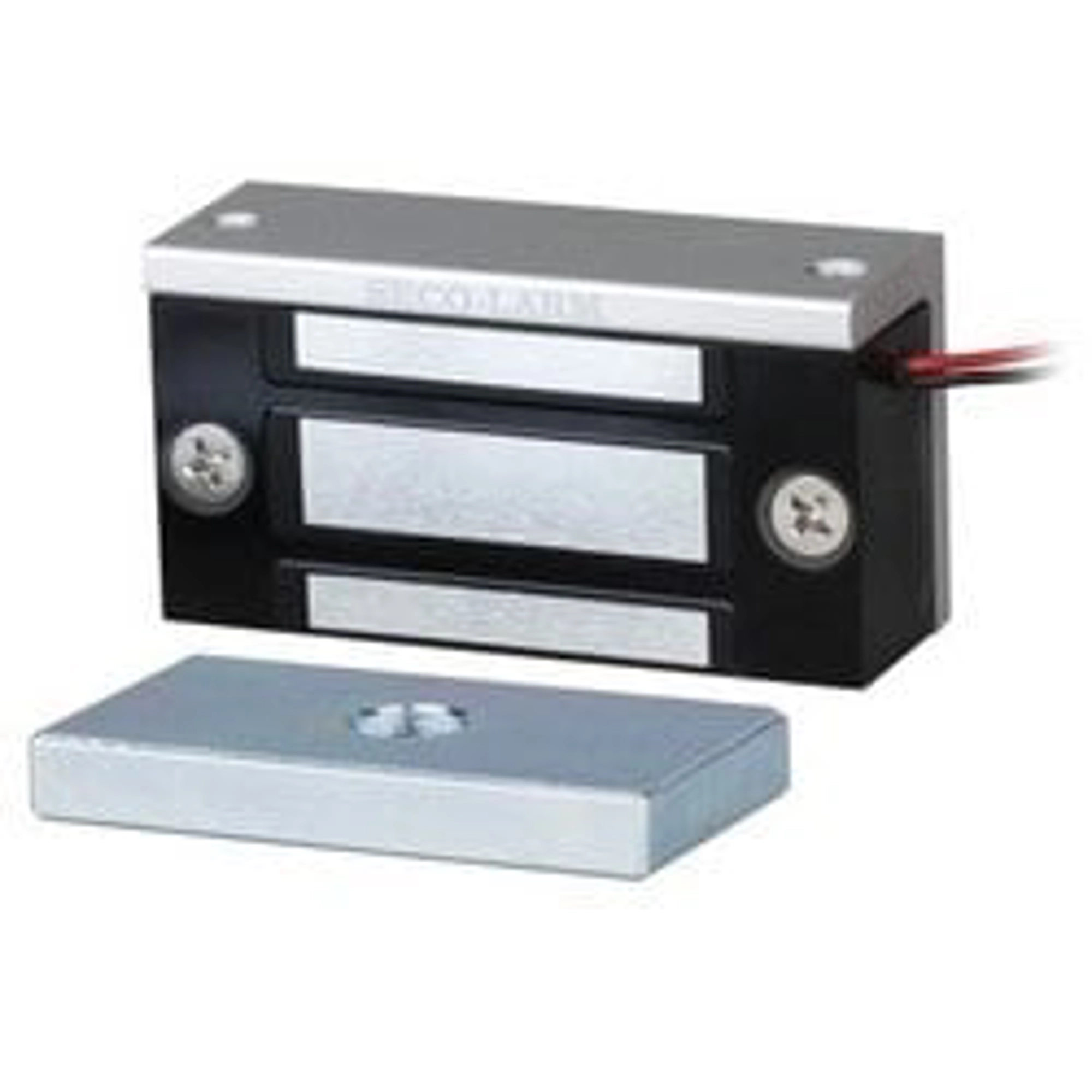

E-941SA-80Q

80-lb Electromagnetic Lock

When power is applied to an electromagnetic lock, it activates a built-in electromagnet that attracts a door-mounted steel armature plate, preventing the door from opening. When power is removed, the electromagnet releases the armature, allowing the door to open.
