SCP LUT-QS-1000

LUT-QS-1000 is comparable to:

• Liberty LUTRON*-QSC
• LUTRON* QSH-CBL-M-500

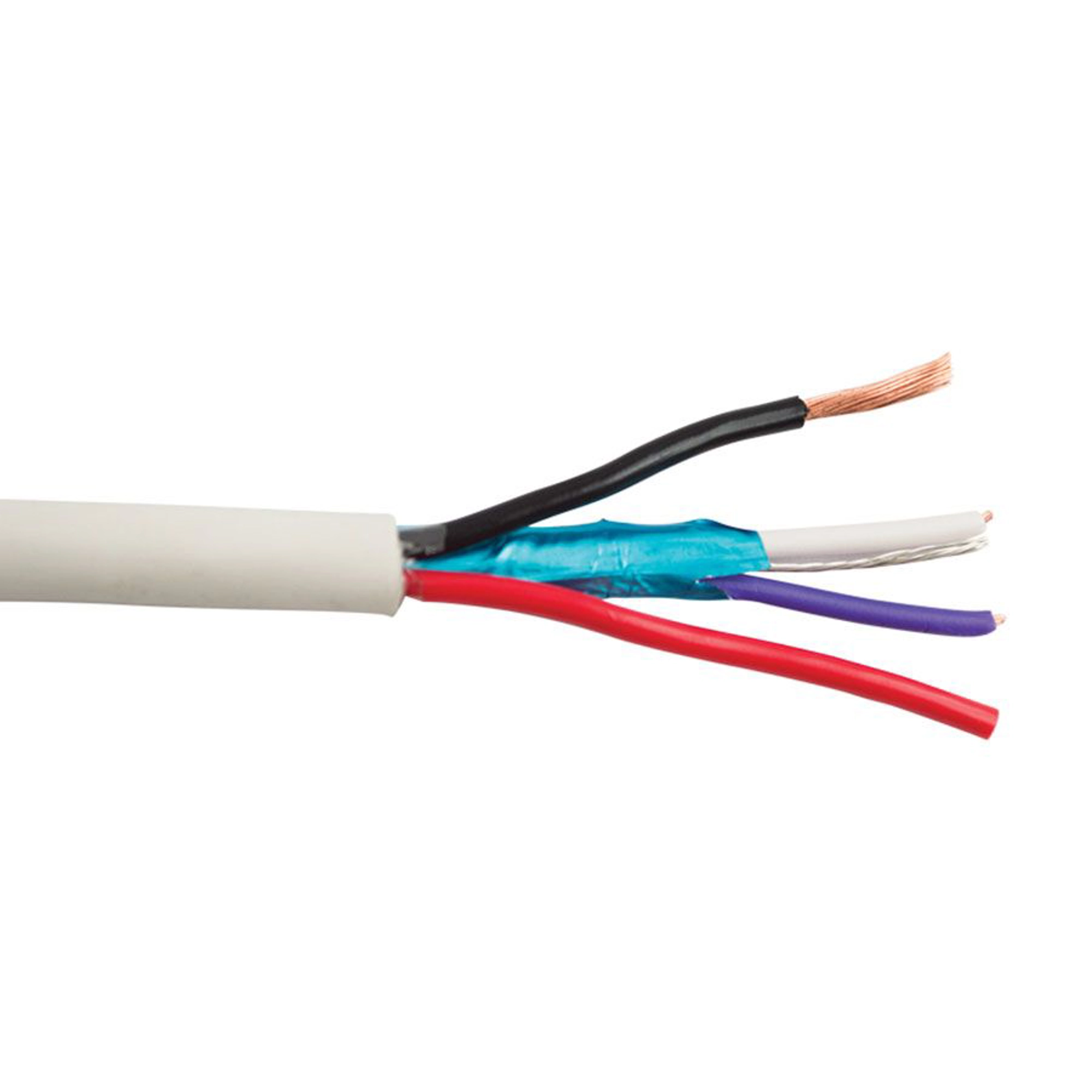

• This cable consists of (1) 2 conductor 16 AWG insulated stranded bare copper, twisted pair, unshielded, plus; (1) 2 conductor shielded 22 AWG insulated stranded bare copper, twisted pair, with overall AL foil shield, and TC drain with an overall PVC jacket.
• Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
• UL listed, NEC: CL3 rated, CEC: CMG FT4, UL 13 and 444, NEC Article 725 and 800. EU RoHS, CE. UL 1685 vertical tray. CPR Euroclass Eca or Dca-s3,d2,a3

SCP carries a complete line of composite cables for use with Lutron* various lighting and shade control systems. These include composite data/communications cables and composite data/control cables which are available in PVC rated CM, Plenum CMP, and Low Smoke Zero Halogen, (LSZH/LSOH) for commercial, marine, and institutional applications. CPR Euroclass Eca or Dca-s3,d2,a3

Lutron Grafix Eye Control Cable 16/2 + 22/2 Shielded with Drain 1000′ Spool

LUT-QS-1000

SCPs LUT-QS cable is for use with Lutron* Quantum Systems®, Grafik Eye®, Grafix Integrale®, and Homeworks® systems. The SCP LUT-QS is comparable to the Lutron* QSH-CBL-M-500 cable. The SCP LUT-QS applications include data/communications and controls.

• Cutsheet
