SCP CAT6A-U/FTP-WT-ETL

• SCP CAT6A-U/FTP cables exceed 10GBaseT performance standards for: ANSI/TIA 568.2-D Category 6a; ISO/IEC 11801 Class Ea; and EN 50173-1:2011 Class Ea.

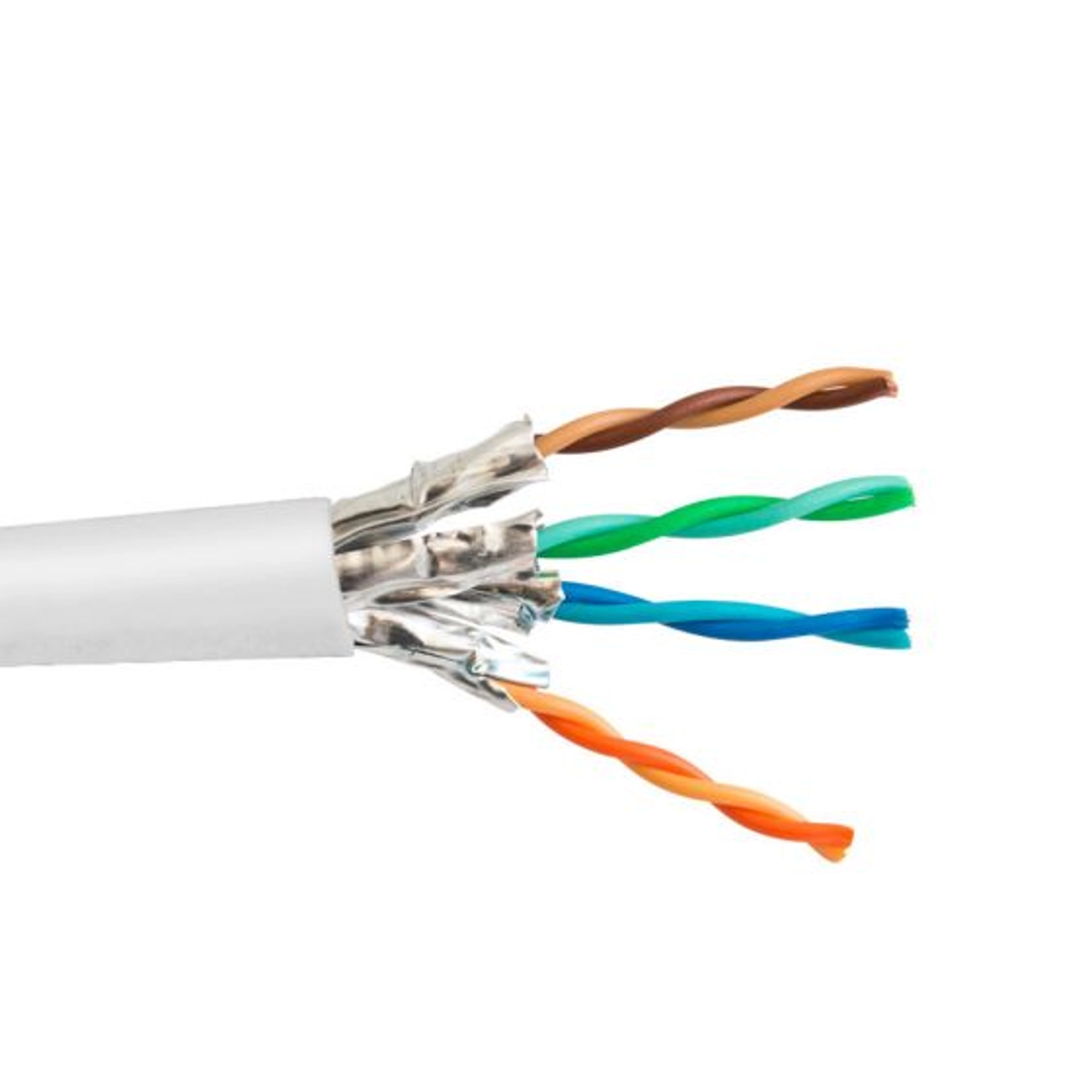

• Each CAT6A-U/FTP cable is performance optimized with 4 balanced twisted pairs on 23 AWG insulated solid bare copper conductors with each pair AL foil shielded. CAT6A-U/FTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.
• The SCP CAT6A-U/FTP-WT cables are packaged on a 1000ft/305M spool/drum with a Blue PVC Jacket.

• Maximum pair separation increases key electrical performance parameters
• Eliminates both internal and external alien crosstalk
• Increases CAT6A performance headroom and outperforms CAT6A UTP cables
• Provides excellent signal isolation
• Superior EMI/RFI protection
• Increased data security

Category 6A Foil Shielded Twisted Pair Cable U/FTP 600Mhz ETL Riser Rated 1000′ Spool

CAT6A-U/FTP-WT-ETL

• Cutsheet
