Rolls RM316

SKU: ROL-RM316

MPN: RM316

Description

3-Zone Mixer 3 Mic XLR Inputs with Phantom Power and 3 RCA Stereo Inputs

Add to Wishlist

Send to a friend!

Input Impedance: 10K Ohms balanced Line
Output Impedance: 50 Ohms balanced
Max Input Level: Mic: -30 dB Source: 22 dB
Phantom Power: 15 Volts DC
Max Gain: 60 dB mic 30 dB line
S/N Ratio: >75 dB
THD: < .3%
IMD (SMPTE): < .3%
CMRR: 60 dB
Frequency Response: 20Hz to 20kHz /- 0 dB
Size: 19 x 1.75 x 6.5
Three Mic Inputs with independent switchable phantom power
Three RCA source inputs and one front panel 3.5mm stereo input
Three Balanced Phoenix Connector Zone Outputs
Remote Volume for each output

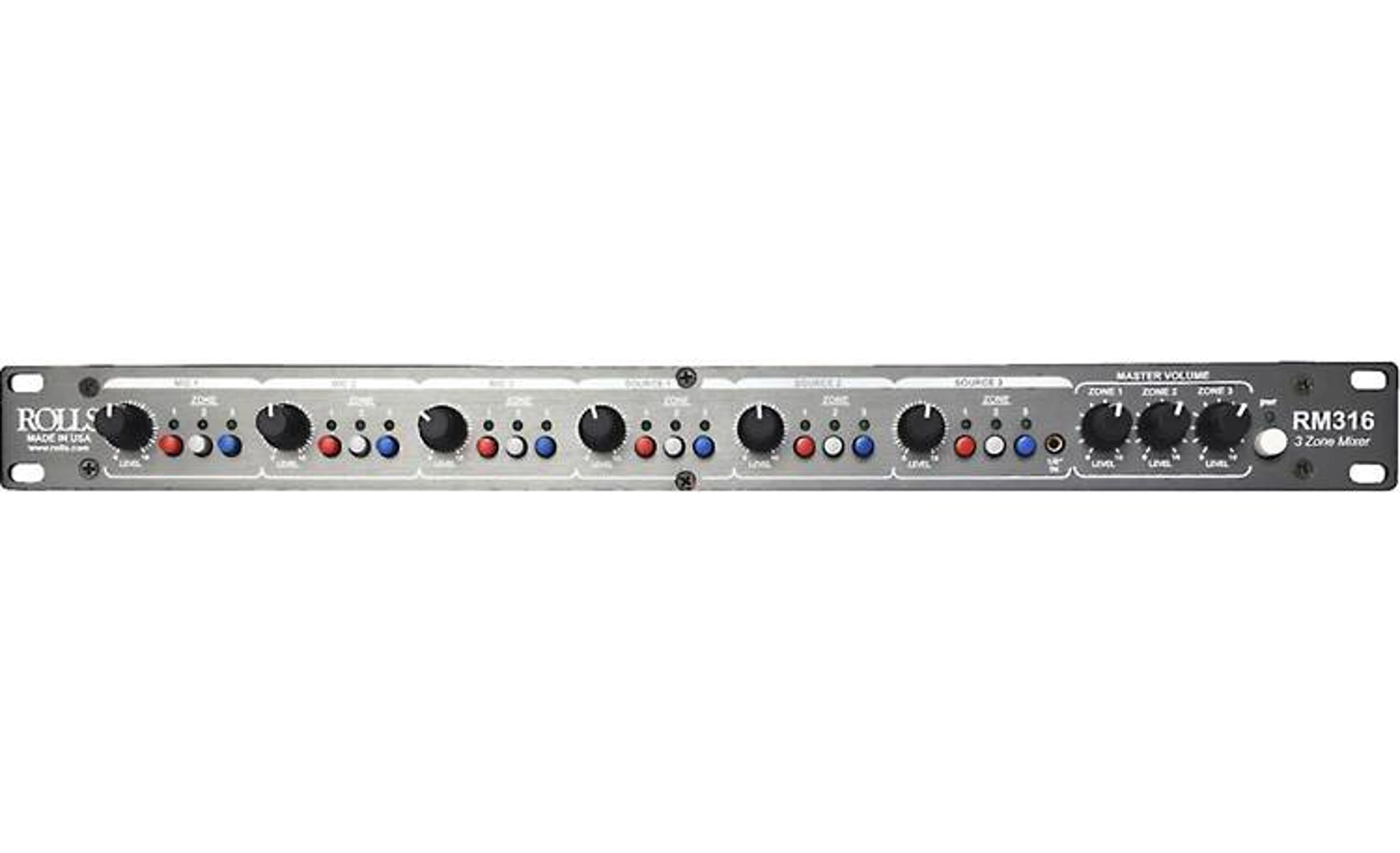

Three Zone Mixer

RM316

Introducing the all-new ROLLS RM316 Three Zone Mixer, a versatile audio solution that effortlessly combines three microphones or XLR line level signals with three RCA line level source inputs. With convenient switch selection, you can easily direct the signals to any combination of three zone outputs. Each output is equipped with balanced phoenix connectors, ensuring reliable connections.

Experience ultimate control with the remote volume feature, allowing you to adjust the volume externally for each zone. The Microphone inputs also boast convenient selectable ducking and paging options for individual zones.

Whether youre in the front or rear, the RM316 offers user-friendly operation while meeting the demands of even the most intricate three zone installations. Its seamless functionality makes it the perfect choice for a variety of settings, including restaurants, offices, nightclubs, and more. Elevate your audio experience with the ROLLS RM316 Three Zone Mixer.
