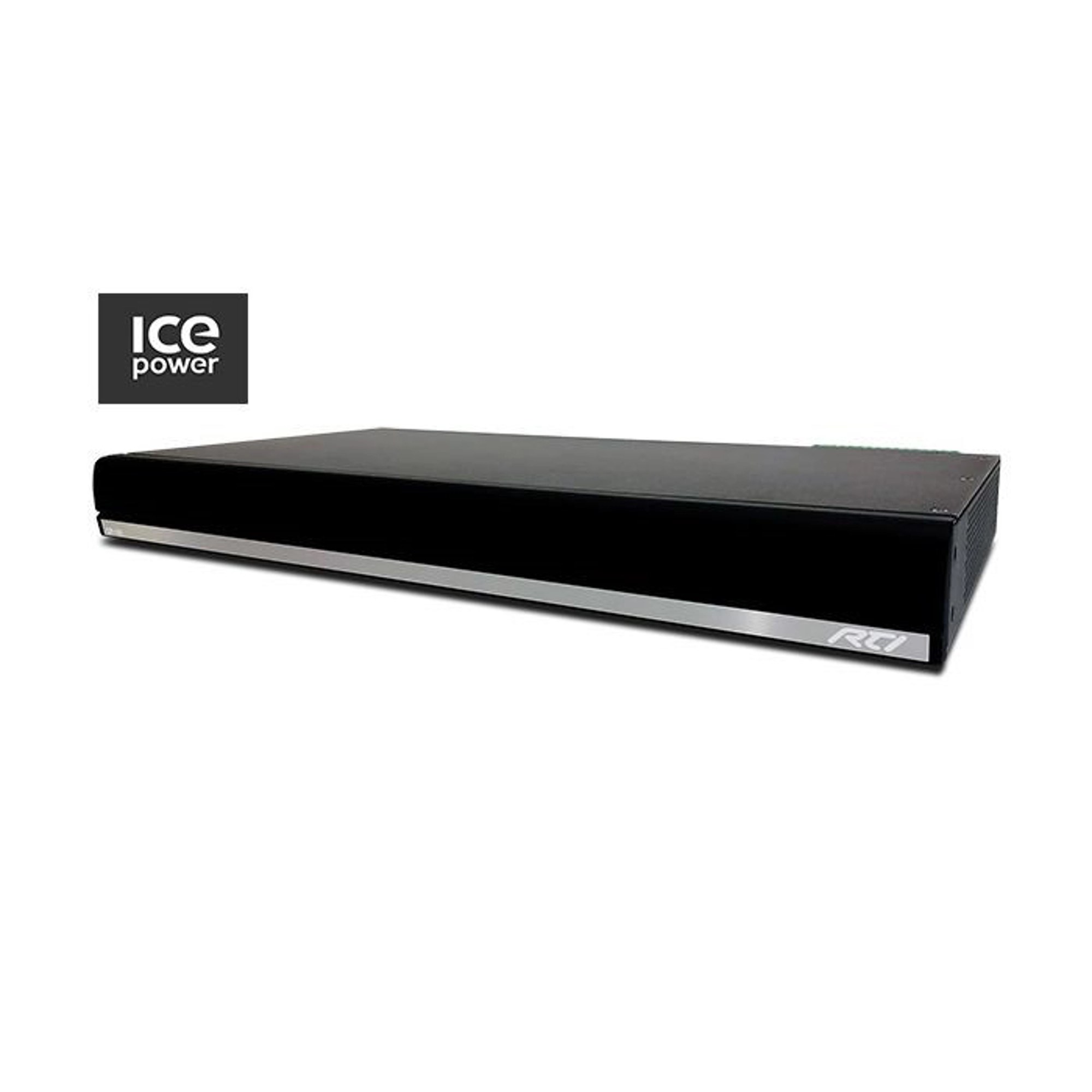

Remote Technologies CP16i

AC Input Voltage 115VAC or 240VAC (Switchable), 230W
Power Switch Front Panel On/Off with LED
Mounting Rack mount (1RU) or free standing
Dimensions (HxWxD) 44mm x 438mm x 228mm
Weight 4.08kg
Signal Sense Audio input sense, 12V trigger and 3-5V trigger
Standby Power Consumption Less than 0.25W
Number of Channels 16 channels in 8 stereo zones: each zone can be bridged
Output Power 100W per ch. in SE, 4O (1.0%THD+N, 20 Hz – 20kHz)
200W per ch. in BTL, 😯 (1.0%THD+N, 20Hz – 20kHz)
Amplifier Gain: (20Hz – 20kHz) 25.8dB ±0.5dB
Amplifier Input: Single Ended input – 1 Vrms max Input Voltage without clipping
Amplifier Output: Single Ended output stage – GND referenced
28Vp max Output Voltage without clipping
THD + N 1.0%, 4O, SE, f=100Hz, Po=1W
Dynamic Range 110dBA SE, 115dBA BTL
Frequency Response ±0.4dB, 10Hz – 20kHz, all loads
Environmental Operating Temperature 0°C to +45°C
Thermal dissipation 2 low noise fans mounted in side panels

Sixteen channel amplifier utilizes Cool Power® technology
Power output is 100 watts per channel at 4 ohms
Bridging audio outputs increases power to 200 watts per channel
Easily expands the RTI AD-4x/AD-8x Audio Distribution Systems and AD-16x Audio Matrix.
Compatible with virtually any audio distribution system
Power control via voltage triggers or audio signal sense
VSignal Sense feature automatically powers the CP-16i on when an audio signal is detected or puts the unit is standby mode when no signal is present
Voltage trigger pass-through for powering on/off additional amplifiers
Thermal overload and OC (Overcurrent) monitor indicators protect the amplifier
Rackmounting requires just 1RU or use included feet for free standing installations
Class-D amplifier technology ensures efficient heat dissipation and low power consumption

The CP-16i Audio Amplifier is ideal for discerning listeners who demand the highest quality audio in every room. Capable of delivering 100W of true audiophile-grade sound to 16 channels, the Cool Power amplifier easily expands the reach of any audio distribution system.

Engineered to perform as well as it sounds, the CP-16i features highly efficient, Class-D amplification, overload detection and a compact chassis that fits nicely into one rack space.

Perfect for residential and commercial settings, the experience is the same in every room – amazing. Put RTI technology to the test – you’ll never miss a beat.

NOTE: Note that the CP-16i requires an external preamp for volume control
