RDL DS-SH1M
SKU: ESC-RDL-DS-SH1M
MPN: DS-SH1M
Description

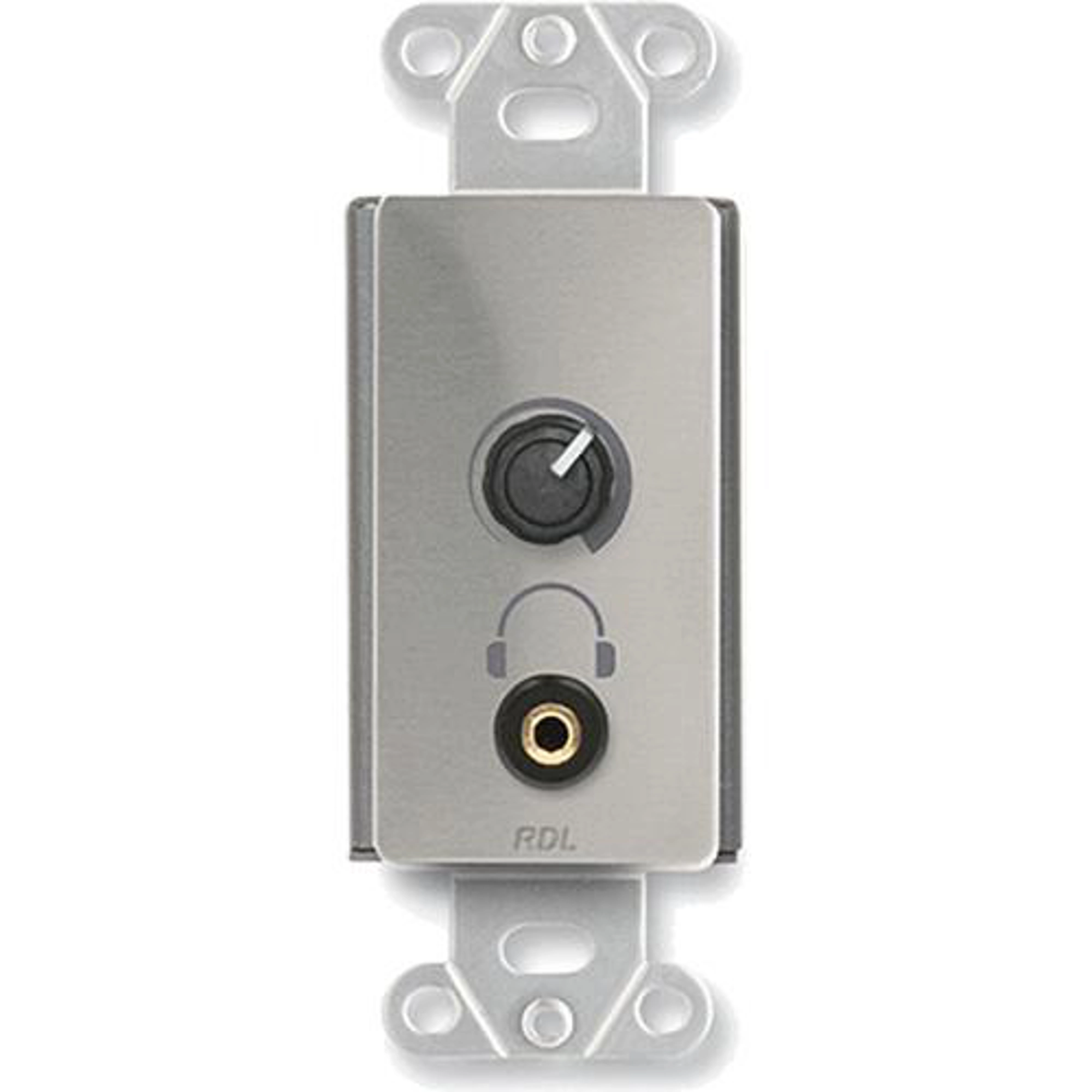

RDL DS-SH1M, Decora Headphone Amp
Send to a friend!
SKU: ESC-RDL-DS-SH1M
MPN: DS-SH1M
RDL DS-SH1M, Decora Headphone Amp
Send to a friend!
Number of Headphone ChannelsSingle ChannelHeadphone Output Power50 mW (Max)Analog Audio I/O1x 1/8″ / 3.5 mm Output2x Screw Terminal 3-Pin Input (1 StereoPair)Frequency Response30 Hz to 20 kHz ±2 dB
Number of Headphone ChannelsSingle ChannelHeadphone Output Power50 mW (Max)DisplayNo
Analog Audio I/O1x 1/8″ / 3.5 mm Output2x Screw Terminal 3-Pin Input (1 StereoPair)
Frequency Response30 Hz to 20 kHz ±2 dBTHD+N< 0.5% (1 kHz)SNR< -70 dB
Dimensions2.46 x 1.9″ / 0.97 x 0.75cm
Package Weight0.5 lbBox Dimensions (LxWxH)8 x 6 x 3″
Key Features
Show More
The Radio Design DS-SH1M is a surface mounted, stereo / mono, headphone amplifier for audio installations of any kind. Museum exhibits, private audio monitoring installations, and listening stations are among some of the possible applications the DS-SH1 is suitable for. The module mounts conveniently in a precut opening in a wood or metal enclosure or in various RDL mounting accessories.
The dual-channel headphone amplifier features balanced/unbalanced left and right inputs that accept operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One of the switches sets the input sensitivity, the other selects between stereo and mono operation. The front panel level control is a long-life potentiometer. Because audio does not pass through this control, it can provide years of noise-free level adjustment.
RDL
The Radio Design DS-SH1M is a surface mounted, stereo / mono, headphone amplifier for audio installations of any kind. Museum exhibits, private audio monitoring installations, and listening stations are among some of the possible applications the DS-SH1 is suitable for. The module mounts conveniently in a precut opening in a wood or metal enclosure or in various RDL mounting accessories.
The dual-channel headphone amplifier features balanced/unbalanced left and right inputs that accept operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One of the switches sets the input sensitivity, the other selects between stereo and mono operation. The front panel level control is a long-life potentiometer. Because audio does not pass through this control, it can provide years of noise-free level adjustment.
