QSC unDX2IO+

Audio Inputs
Input types 3-pin XLR (balanced and RF filtered)
Gain -18 dB, -3dB, +25dB, +40dB, software
selectable
Input impedance >1.8 K? at any gain setting
Maximum input levels: 1 & 2
+20 dBu @ 0 dB w/ -15 dB Pad
+5 dBu @ 0 dB gain,
-22 dBu@ +25 dB gain,
-38 dBu @ +40 dB gain
Maximum input levels: 3 & 4 +4 dBu Mode: +20 dBu
-10 dBV Mode: +12 dBu
Phantom power +48v, software selectable
Audio Performance
EIN -115 dBu (+40 dB gain)
THD+N < -85 dBu @ 0 dB gain Frequency response < 0.05% at any gain, input signal 3 dB below maximum Audio Outputs Output type Balanced line level with automatic muting on loss of Dante signal Output gain 0 dB Maximum output level +20 dBu Dante Network Physical level Standard ethernet Connector Single RJ-45 Cable quality CAT-5e or better Transmisssion speed 100 Mbps Supported sample rates 44.1 kHz, 48 kHz Minimum Dante network latency 1 ms General Dimensions (HWD) 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Weight 0.6 lb (.27 kg) Operating temperature 0 to 40° C Regulatory compliance FCC CFR 47 Parts 15B Class A ICES-003 CE (EN55022) RoHS REACH Environmental PoE 802.3af PoE PD compliant Power consumption < 5 W ma

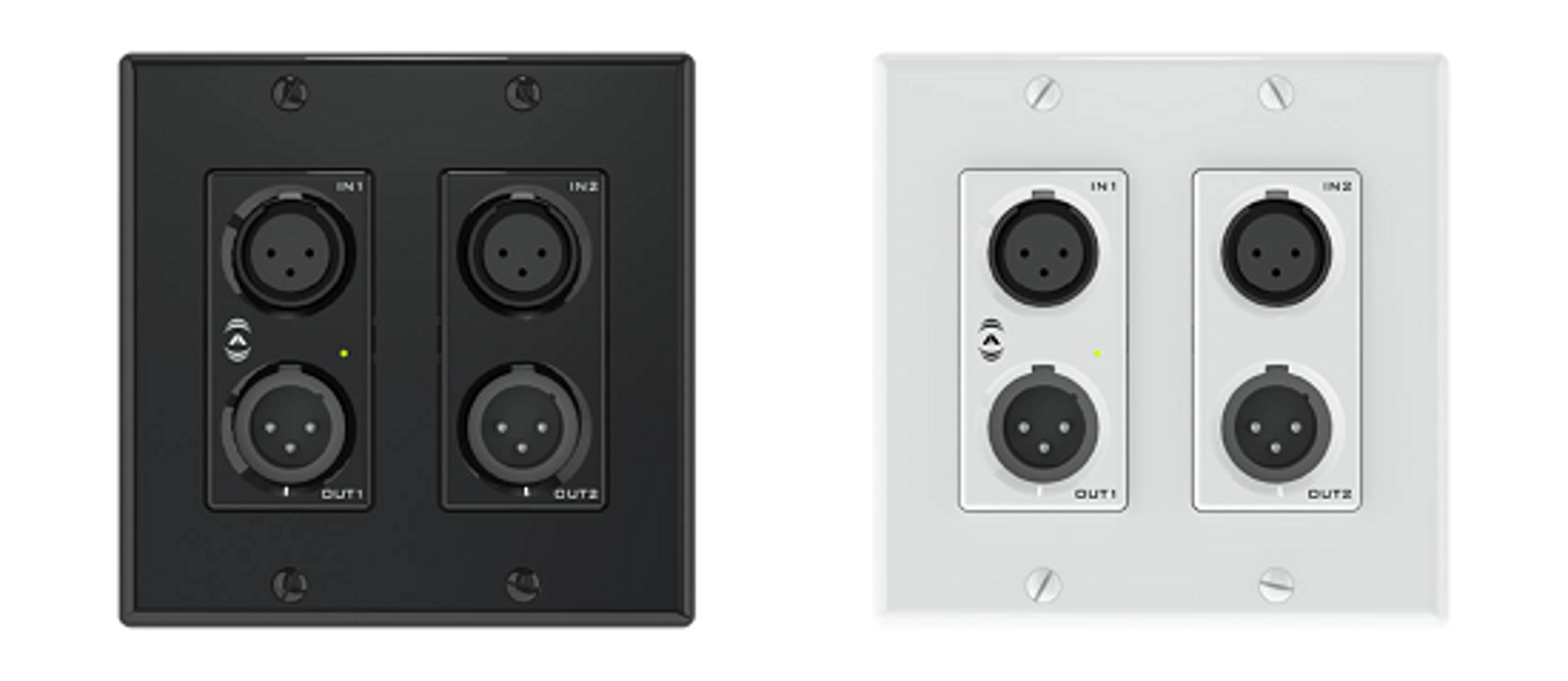

The unDX2IO+ is a cost-effective multi-IO DanteTM audio network wall plate. The unDX2IO+
features two balanced mic/line XLR inputs, two balanced XLR line outputs, and two
balanced line outputs on depluggable connectors on the side of the unit. All inputs and
outputs can be used simultaneously and all audio channels are available separately. The
unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings, and old work
brackets. The unDX2IO+ is PoE enabled, so all connectivity (power, control, and data) is
provided by a single CAT-5/6 cable. The wall plate’s size and I/O density make it easy to put
Dante connectivity wherever it’s needed.

Features
Dante Domain ManagerTM ready
Small form factor allows for easy co-location near analog sources or sinks
PoE powered (802.3af)
Four input gains to accommodate common line levels and dynamics
+48 V phantom power per channel
Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment – both consumer and professional levels
Industry standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
Audio Inputs
Input types 3-pin XLR (balanced and RF filtered)
Gain -18 dB, -3 dB, +25 dB, +40 dB, software-selectable
Phantom power +48 V, software-selectable
Audio Outputs
Output type Balanced line level with automatic muting on loss of Dante signal
Maximum output level +20 dBu
Dante Network
Physical level Standard ethernet
Connector Single RJ-45
Supported sample rates 44.1 kHz, 48 kHz
General
Dimensions (HWD) 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm)
Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
Weight 0.6 lb (.27 kg)

The unDX2IO+ is a cost-effective multi-IO Dante™ audio network wallplate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.
