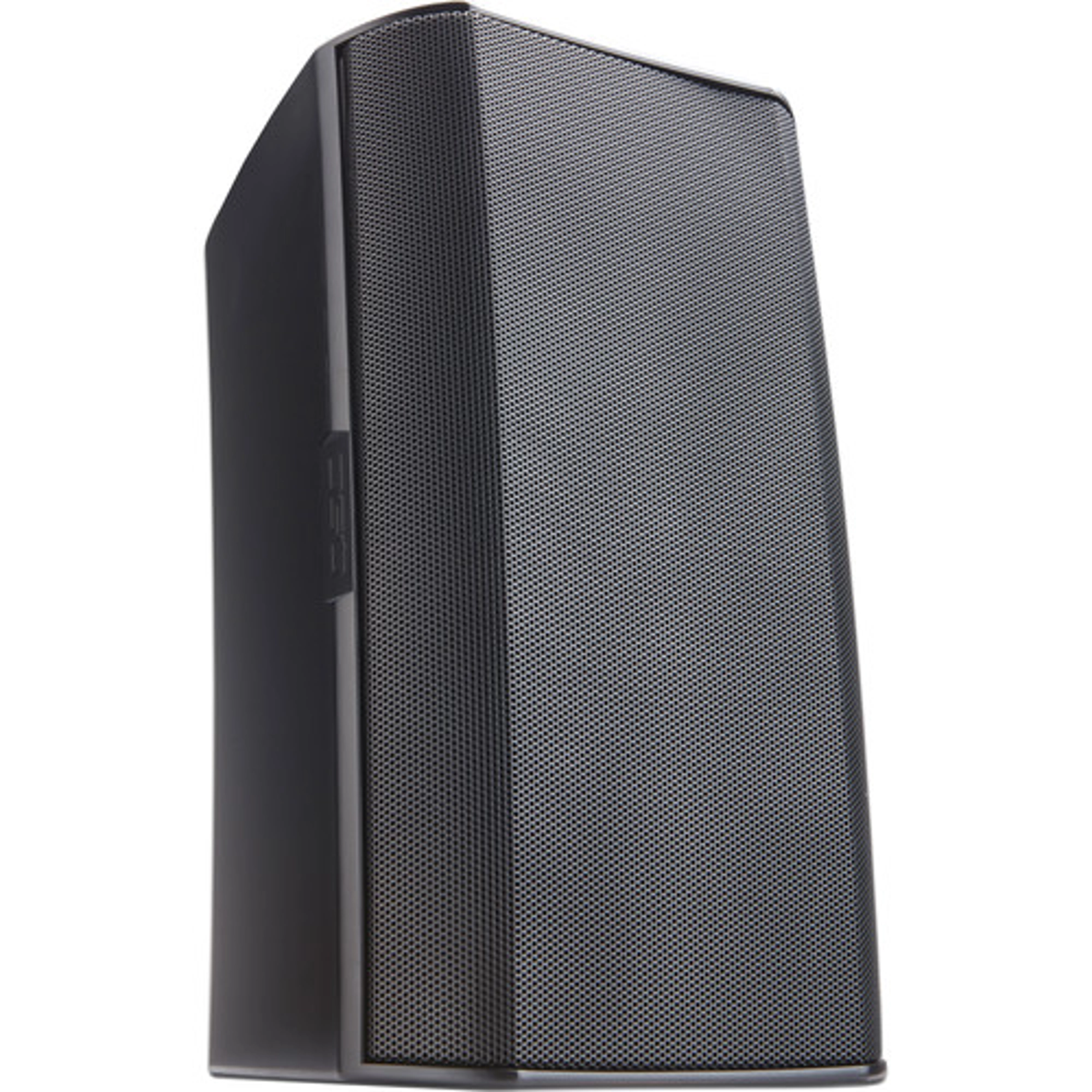

QSC AD-S8T (black)
SKU: QSC-AD-S8T-BK
MPN: AD-S8T-BK
Description
Q-SYS 8" Outdoor Surface Mount Speaker 70v 60w 105° Conical DMT IP54 MS Teams Certified Includes X-Mount Black
Send to a friend!
SKU: QSC-AD-S8T-BK
MPN: AD-S8T-BK
Q-SYS 8" Outdoor Surface Mount Speaker 70v 60w 105° Conical DMT IP54 MS Teams Certified Includes X-Mount Black
Send to a friend!
Active/PassivePassiveNumber of Included Speakers1Speaker Configuration2-WayPower HandlingFor 2 Hours / At Low-Z:200 W RMSConstant Voltage / Transformer Taps70 V:60 / 30 / 15 / 7.5 W or 8 Ohms Bypass100 V:60 / 30 / 15 W or 8 Ohms BypassImpedance8 Ohms (Transformer Bypassed)HF Driver1x 1″ / 2.54cm Compression DriverLF Driver1x 8″ / 20.32cm Paper WooferFrequency Range55 Hz to 20 kHz -10 dBColorBlack
Active/PassivePassiveNumber of Included Speakers1Speaker Configuration2-WayPower HandlingFor 2 Hours / At Low-Z:200 W RMSRecommended Amplifier Power400 WConstant Voltage / Transformer Taps70 V:60 / 30 / 15 / 7.5 W or 8 Ohms Bypass100 V:60 / 30 / 15 W or 8 Ohms BypassImpedance8 Ohms (Transformer Bypassed)Transformer Wattage60 WEnclosure TypeSealedShieldedNo
HF Driver1x 1″ / 2.54cm Compression DriverHF Voice Coil1.4″ / 3.56cmLF Driver1x 8″ / 20.32cm Paper WooferLF Voice Coil2″ / 5.08cm
Frequency Range55 Hz to 20 kHz -10 dBMaximum SPL113 dB (Continuous)119 dB (Peak)Sensitivity90 dB SPLCoverage Angle105° (Conical)Directivity7 (Directivity/Q Factor)9 dB (Directivity Index)Maximum Input Voltage40 V RMS
Inputs/Outputs1x Block 4-Pole Speaker Input/Thru (Removable)
Environmental ResistanceDust/Humidity/Water-Resistant (IP54)Operating Conditions-4 to 122°F / -20 to 50°CColorBlackMounting1x Bracket Point (Rear)2x M10 Suspension (Bottom)Construction MaterialABS, Aluminum Grille, PolymerDimensions17.3 x 10 x 9.9″ / 43.94 x 25.4 x 25.15cmWeight24.1lb / 10.9kg
Package Weight34 lbBox Dimensions (LxWxH)29 x 14 x 13″
Key Features
Show More
The black AcousticDesign Series QSC AD-S8T is a transformer-equipped 8″ surface-mount loudspeaker supplied with the award-winning X-Mount system, making it suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.
70 Volt
Yes
QSC
Surface Mount
The black AcousticDesign Series QSC AD-S8T is a transformer-equipped 8″ surface-mount loudspeaker supplied with the award-winning X-Mount system, making it suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.
