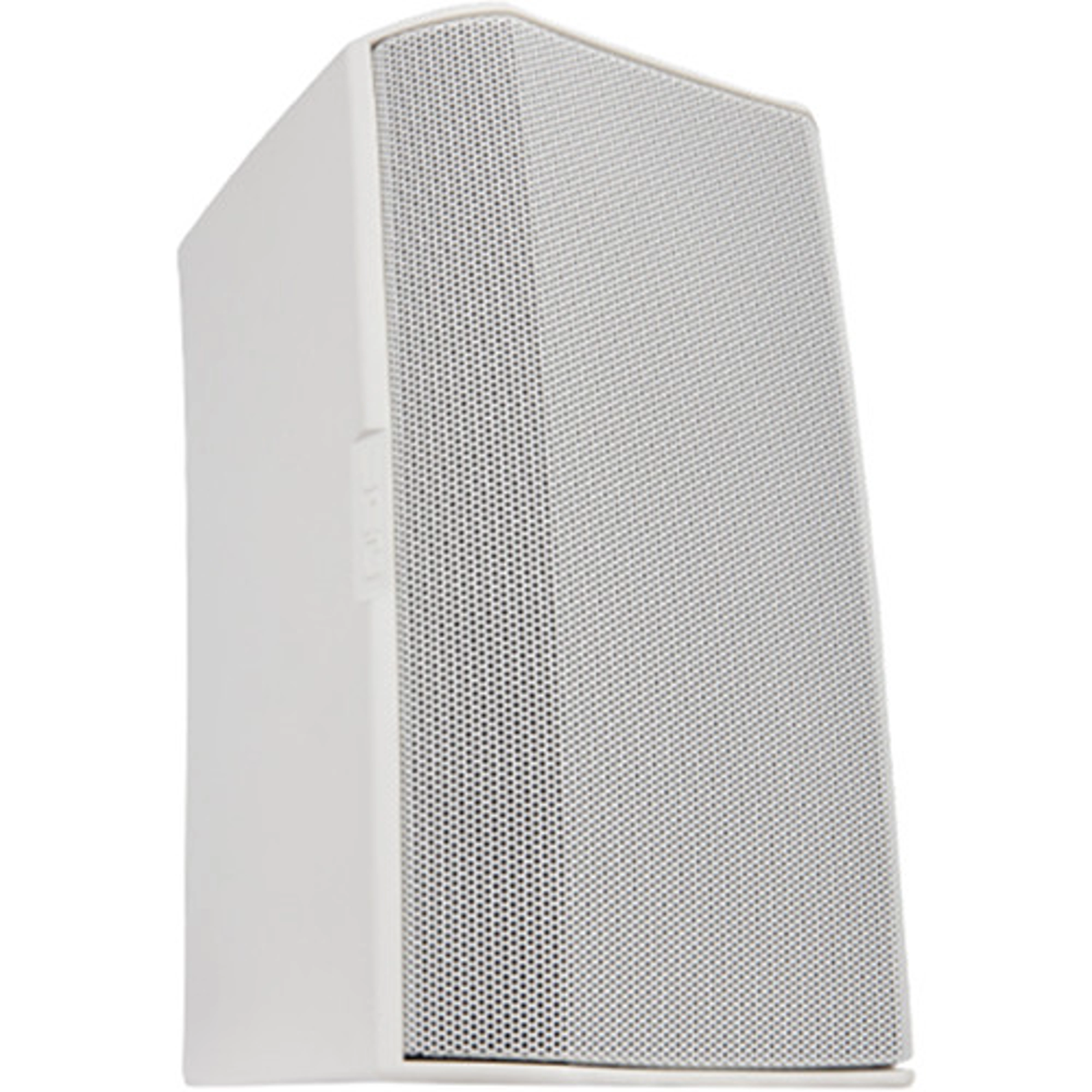

QSC AD-S6 (white)
SKU: QSC-AD-S6-WH
MPN: AD-S6-WH
Description
Q-SYS 6.5" Outdoor Surface Mount Speaker 16ohm 300w 105° Conical DMT IP54 MS Teams Certified Includes X-Mount White
Send to a friend!
SKU: QSC-AD-S6-WH
MPN: AD-S6-WH
Q-SYS 6.5" Outdoor Surface Mount Speaker 16ohm 300w 105° Conical DMT IP54 MS Teams Certified Includes X-Mount White
Send to a friend!
Active/PassivePassiveNumber of Included Speakers2Speaker Configuration2-WayPower Handling150 W RMS300 W ProgramImpedance16 OhmsHF Driver1x 1″ / 25.4mm Waveguide-Coupled Silk Dome TweeterLF Driver1x 6.5″ / 165.1mm Paper WooferFrequency Range58 Hz to 20 kHzColorWhite
Active/PassivePassiveNumber of Included Speakers2Speaker Configuration2-WayPower Handling150 W RMS300 W ProgramRecommended Amplifier Power300 WImpedance16 OhmsEnclosure TypeSealed
HF Driver1x 1″ / 25.4mm Waveguide-Coupled Silk Dome TweeterHF Voice Coil1″ / 25.4mmLF Driver1x 6.5″ / 165.1mm Paper WooferLF Voice Coil1.5″ / 38.1mm
Frequency Range58 Hz to 20 kHzMaximum SPL116 dB SPL (Peak)110 dB SPL (Continuous)Sensitivity89 dB SPL (Average)Coverage Angle105° (Conical)Directivity7 dB (Directivity Index)5 dB (Directivity/Q Factor)Maximum Input Voltage49 V RMS
Inputs/Outputs1x Block 4-Pin Speaker Input/Thru
Environmental ResistanceDust/Water-Resistant (IP54)Operating Conditions-4 to 122°F / -20 to 50°CColorWhiteMountingBall Mount (Rear)Construction MaterialABS, AluminumDimensions14.4 x 8.5 x 8.5″ / 36.58 x 21.59 x 21.59cmWeight11.6lb / 5.3kg
Package Weight28 lbBox Dimensions (LxWxH)22.75 x 20 x 12″
Key Features
Show More
This pair of white 6.5″ QSC AcousticDesign Series AD-S6 is a surface mounted, 16 ohm, 6.5″ passive two-way loudspeaker system ideally suited for a wide variety of foreground and background sound reinforcement applications, including restaurants, retail, audio/visual, education, concourses, casinos, transportation terminals, houses of worship, and large system ancillary support. Designed for integrators looking for a premium-quality installed sound solution where coverage, performance, and aesthetics are paramount. The speakers are easy to install and offer high weather resistance (IP54) for use outdoors.
QSC
This pair of white 6.5″ QSC AcousticDesign Series AD-S6 is a surface mounted, 16 ohm, 6.5″ passive two-way loudspeaker system ideally suited for a wide variety of foreground and background sound reinforcement applications, including restaurants, retail, audio/visual, education, concourses, casinos, transportation terminals, houses of worship, and large system ancillary support. Designed for integrators looking for a premium-quality installed sound solution where coverage, performance, and aesthetics are paramount. The speakers are easy to install and offer high weather resistance (IP54) for use outdoors.
