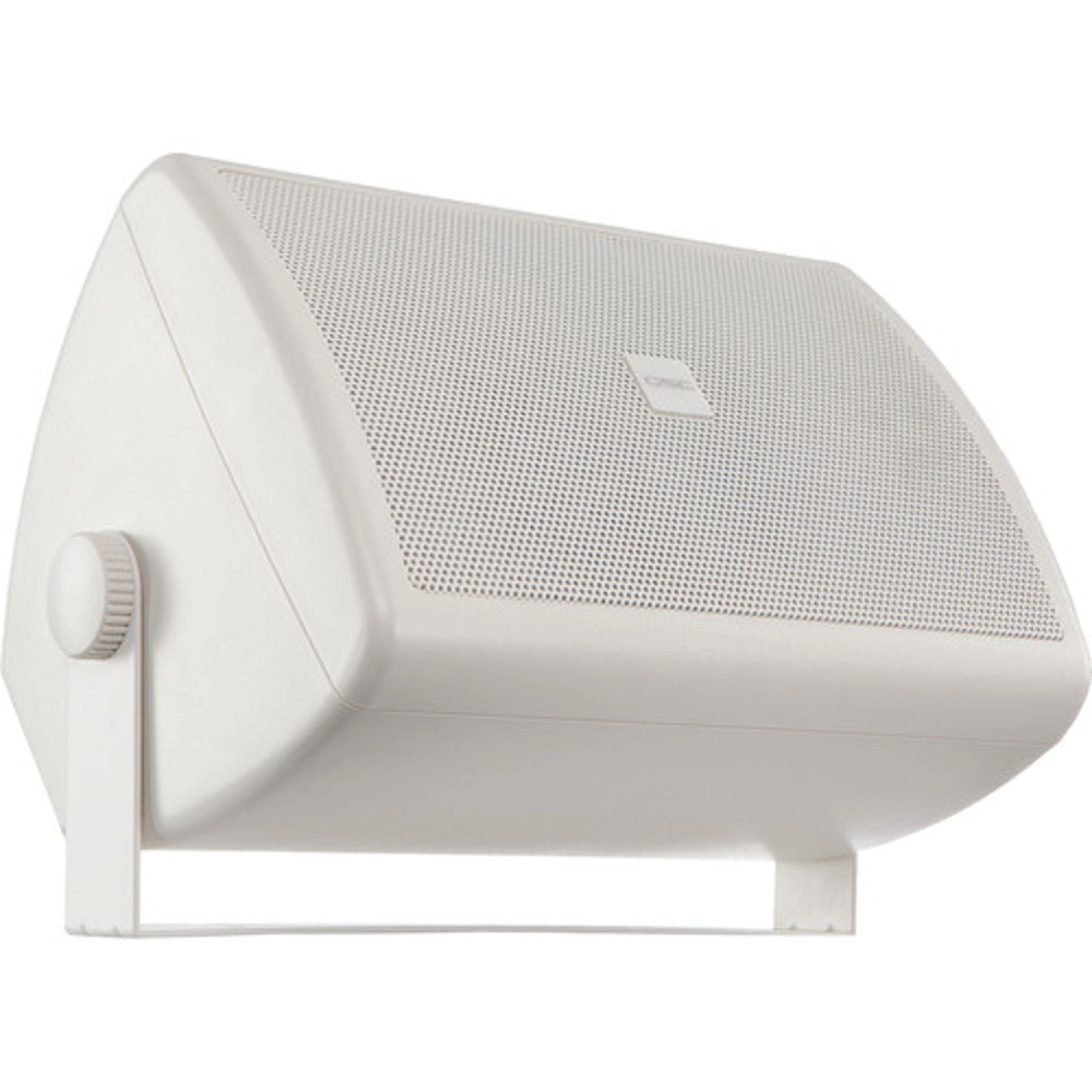

QSC AC-S6T (white)
SKU: QSC-AC-S6T-WH
MPN: AC-S6T-WH
Description
Q-SYS 6.5" Surface Mount Speaker 70v 30w 130° Conical IP44 Indoor White
Send to a friend!
SKU: QSC-AC-S6T-WH
MPN: AC-S6T-WH
Q-SYS 6.5" Surface Mount Speaker 70v 30w 130° Conical IP44 Indoor White
Send to a friend!
| Active/Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours:30 W RMS |
| Constant Voltage / Transformer Taps | 70 V:30 / 15 / 7.5 / 3.7 / 1.9 W or 8 Ohms Bypass100 V:30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Transformer Bypassed) |
| HF Driver | 1x 1″ / 2.54cm Aluminum Dome Tweeter |
| LF Driver | 1x 6.5″ / 16.51cm Polypropylene Woofer |
| Frequency Range | 60 Hz to 20 kHz -10 dB |
| Color | White |
| Active/Passive | Passive |
| Number of Included Speakers | 2 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours:30 W RMS |
| Recommended Amplifier Power | 60 W |
| Constant Voltage / Transformer Taps | 70 V:30 / 15 / 7.5 / 3.7 / 1.9 W or 8 Ohms Bypass100 V:30 / 15 / 7.5 / 3.8 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Transformer Bypassed) |
| Transformer Wattage | 30 W |
| Enclosure Type | Bass-Reflex |
| Shielded | No |
| HF Driver | 1x 1″ / 2.54cm Aluminum Dome Tweeter |
| HF Voice Coil | 1″ / 2.54cm |
| LF Driver | 1x 6.5″ / 16.51cm Polypropylene Woofer |
| LF Voice Coil | 1″ / 2.54cm |
| Frequency Range | 60 Hz to 20 kHz -10 dB |
| Maximum SPL | 101 dB (Continuous)107 dB (Peak) |
| Sensitivity | 86 dB SPL |
| Coverage Angle | 130° (Conical) |
| Directivity | 6 (Directivity/Q Factor)8 dB (Directivity Index) |
| Maximum Input Voltage | 15.5 V RMS |
| Inputs/Outputs | 1x Block 4-Pole Speaker Input/Thru (Removable) |
| Maximum Wire Gauge | 18 AWG |
| Environmental Resistance | Dust/Water-Resistant (IP44) |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Color | White |
| Mounting | 1x Bracket Point (Each Side) |
| Construction Material | ABS, Metal Grille |
| Dimensions | 11.9 x 8.5 x 7.8″ / 30.23 x 21.59 x 19.81cm |
| Weight | 8.3lb / 3.8kg (Each Speaker) |
| Package Weight | 18.8 lb |
| Box Dimensions (LxWxH) | 15.8 x 11.9 x 9″ |
