Platinum Tools 100024C

SKU: PLA-100024C

MPN: 100024C

Description

ezEX44 CAT6 Shielded Connector Category 6 Internal Ground 25-Pack Clamshell

Add to Wishlist

Send to a friend!

Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 5e/6/6A compliant
Insulation Diameter (Conductor) – Size range: 0.039 0.044 (1.0 1.12mm)
Max Outer Diameter: 0.280 (7.1mm)
50 micron gold plated contacts
Solid or Stranded 24-22 AWG
TAA, TIA, RoHS, UL & FCC compliant
US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.

Connector Type:
Cat6 Shielded
Brand:
Platinum Tools

ezEX 44 Shielded CAT6 Connector Internal Ground 25-Pack Clamshell

100024C

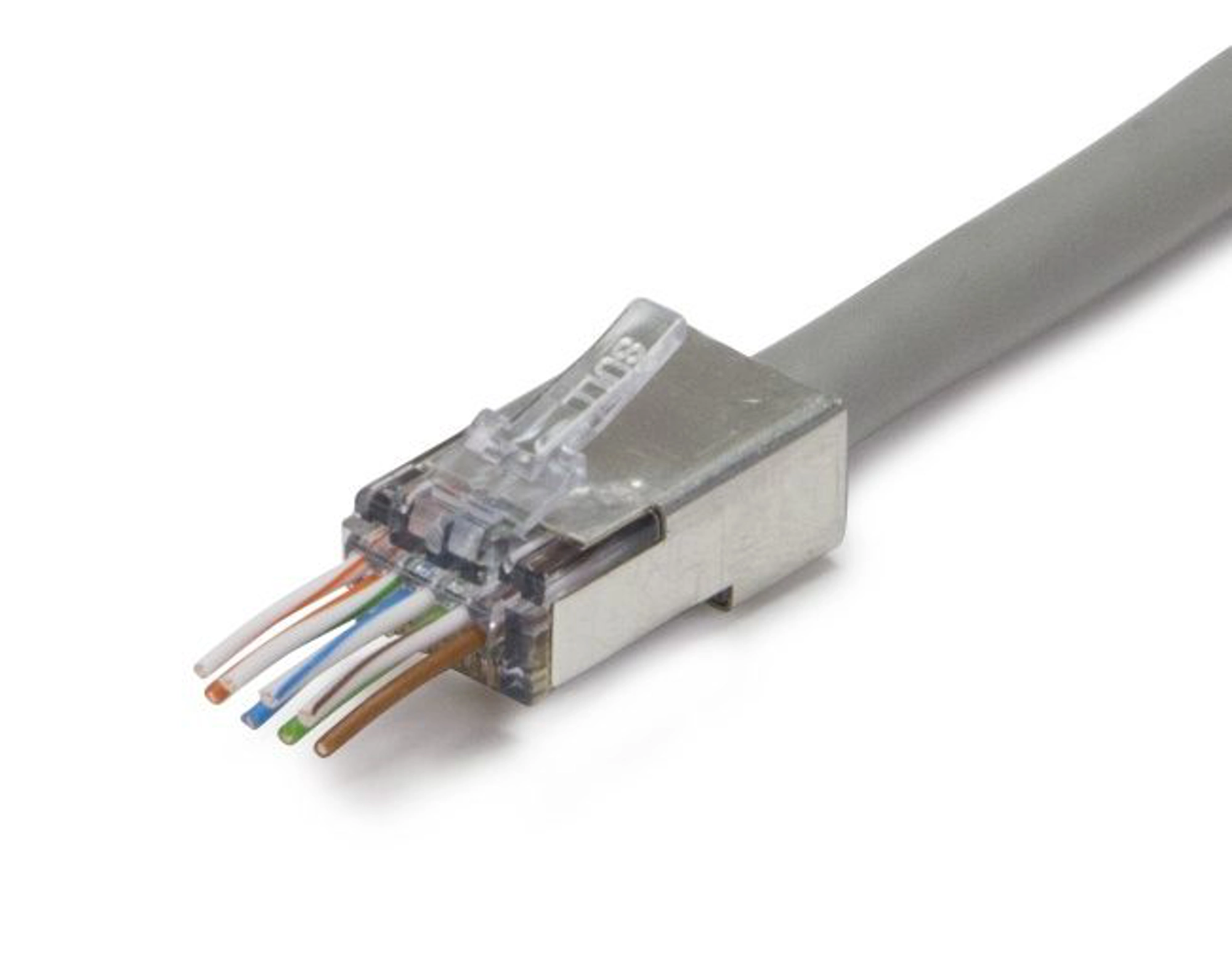

This shielded, patented ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows big conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).
