• Maximum Load Capacity 350 lb
• Minimum Screen Size Supported 46″
• Maximum Screen Size Supported 90″
• VESA Mount Compatible Yes
• Mounting Pattern 200 x 200 to 400 x 600

• Universal mount fits displays with mounting patterns up to 494 x 650mm (19.45″ W x 25.59″ H)
• Low-profile design holds display only 1.70″ (43mm) from the wall
• Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
• Lateral display adjustment up to 3.38″ (85.9mm)
• 1″ of post-installation vertical adjustment provides flexibility in the installation
• Includes fastener pack with all necessary mounting and display attachment hardware (including M10)

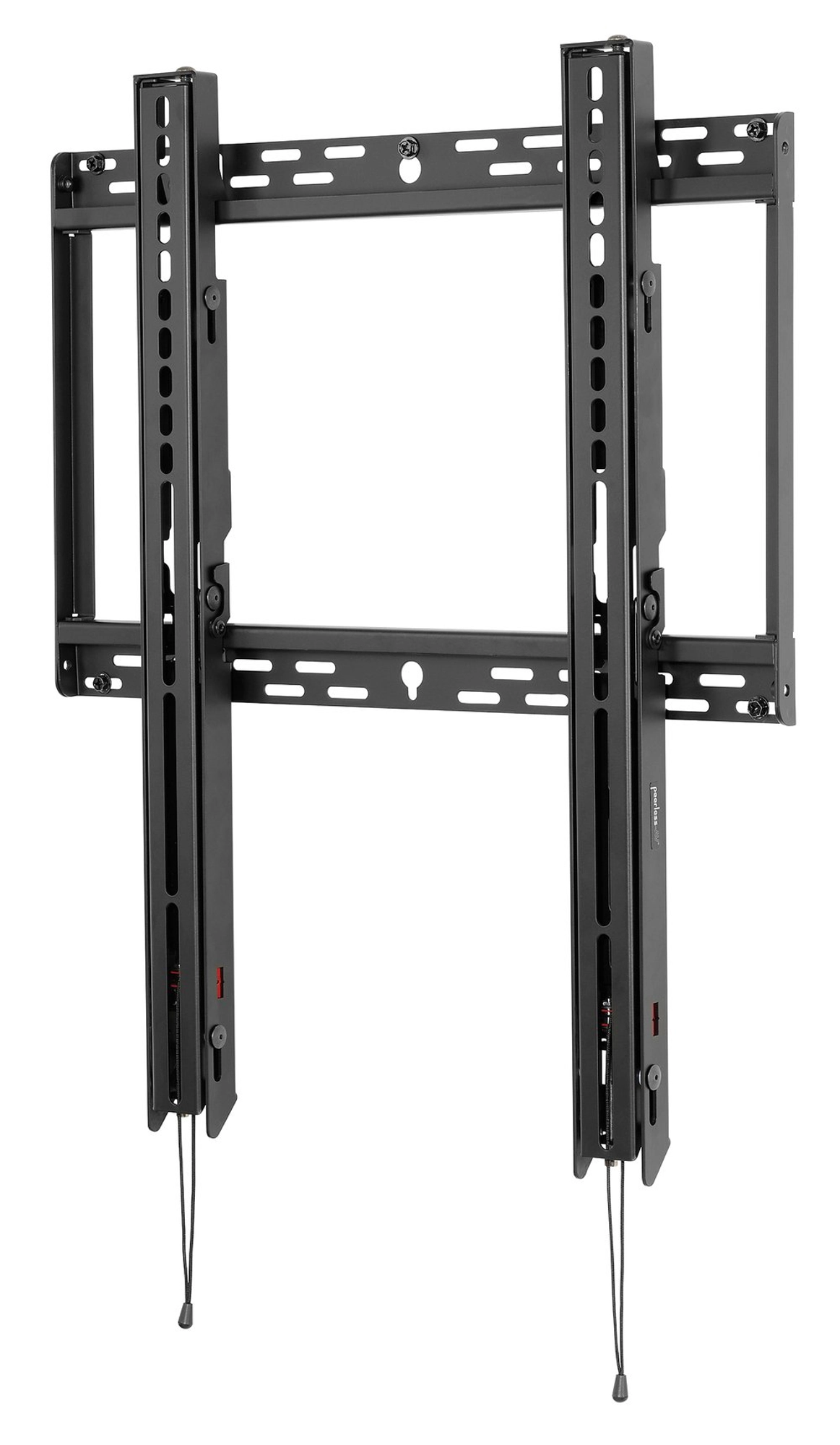

SmartMount Universal Portrait Flat Wall Mount

SFP680

Peerless-AV’s SmartMount® Universal Portrait Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SFP680’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
