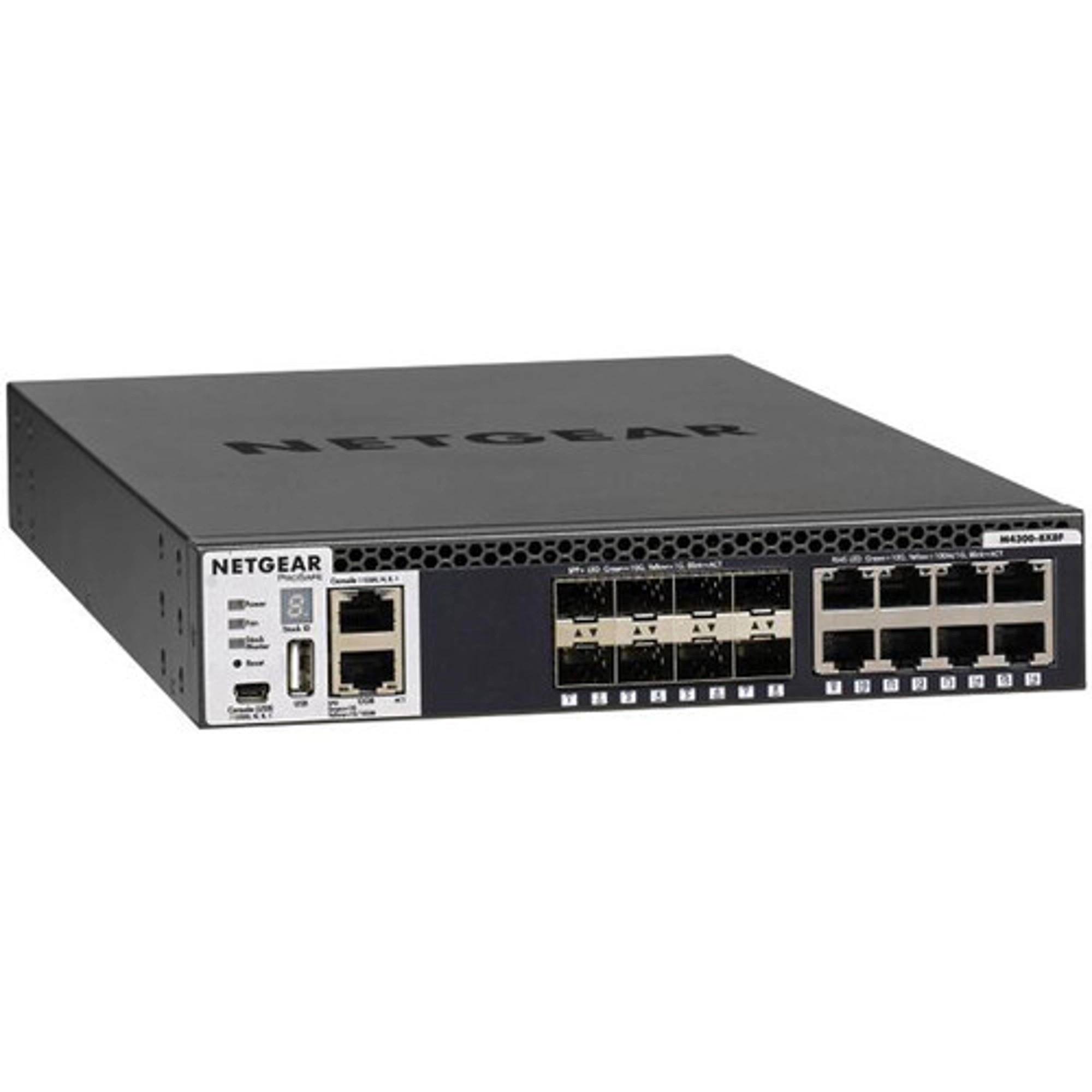

Netgear XSM4316S-100NES
SKU: NET-XSM4316S-100NES
MPN: XSM4316S-100NES
UPC: 606449110005
Description
Stackable Half-Width 16-Port Fully Managed Switch with 8x10GBase-T and 8xSFP+
Send to a friend!
SKU: NET-XSM4316S-100NES
MPN: XSM4316S-100NES
UPC: 606449110005
Stackable Half-Width 16-Port Fully Managed Switch with 8x10GBase-T and 8xSFP+
Send to a friend!
| Inputs/Outputs | 8x RJ45 10 GbE8x SFP 10 GbE1x RJ45 RS-232 (Console)1x RJ45 Gigabit Ethernet LAN1x Mini-USB LAN1x USB-A |
| Stackable | No |
| Switching Bandwidth | 320 Gb/s (Non-Blocking) |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3, Layer 4 |
| Supported Protocols | Auto-MDIX/MDIAuto-VoIPDHCP ServerDoSIGMP SnoopingIPv4IPv6Link AggregationMAC FilteringPort MirroringRADIUSTLS |
| Queuing | Strict Priority |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP SnoopingDoS Attack PreventionRADIUS AuthenticationStorm Control |
| Latency | 0.7 to 2.6 µs |
| Forwarding Rate | 238 Mpps |
| Switching Bandwidth | 320 Gb/s (Non-Blocking) |
| Packet Buffer | 16 Mb |
| Flash Memory | 256 MB |
| CPU | Single-Core:Up to 800 MHz |
| Memory | 1 GB |
| Power Draw | 49.00 W (Max) |
| Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% (Non-Condensing) |
| Noise Level | 36.9 dB |
| Certifications | CE, VCCI, RCM, CCC, FCC, BSMI, CB |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 0.2 Million Hours |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 RU |
| Dimensions | 13.58 x 8.35 x 1.73″ / 34.49 x 21.21 x 4.39cm |
| Weight | 7.31lb / 3.32kg |
| Package Weight | 11.16 lb |
| Box Dimensions (LxWxH) | 22.7 x 14.3 x 3.6″ |
