Netgear WAX630PA-100NAS

SKU: NET-WAX630PA-100NAS

MPN: WAX630PA-100NAS

Description

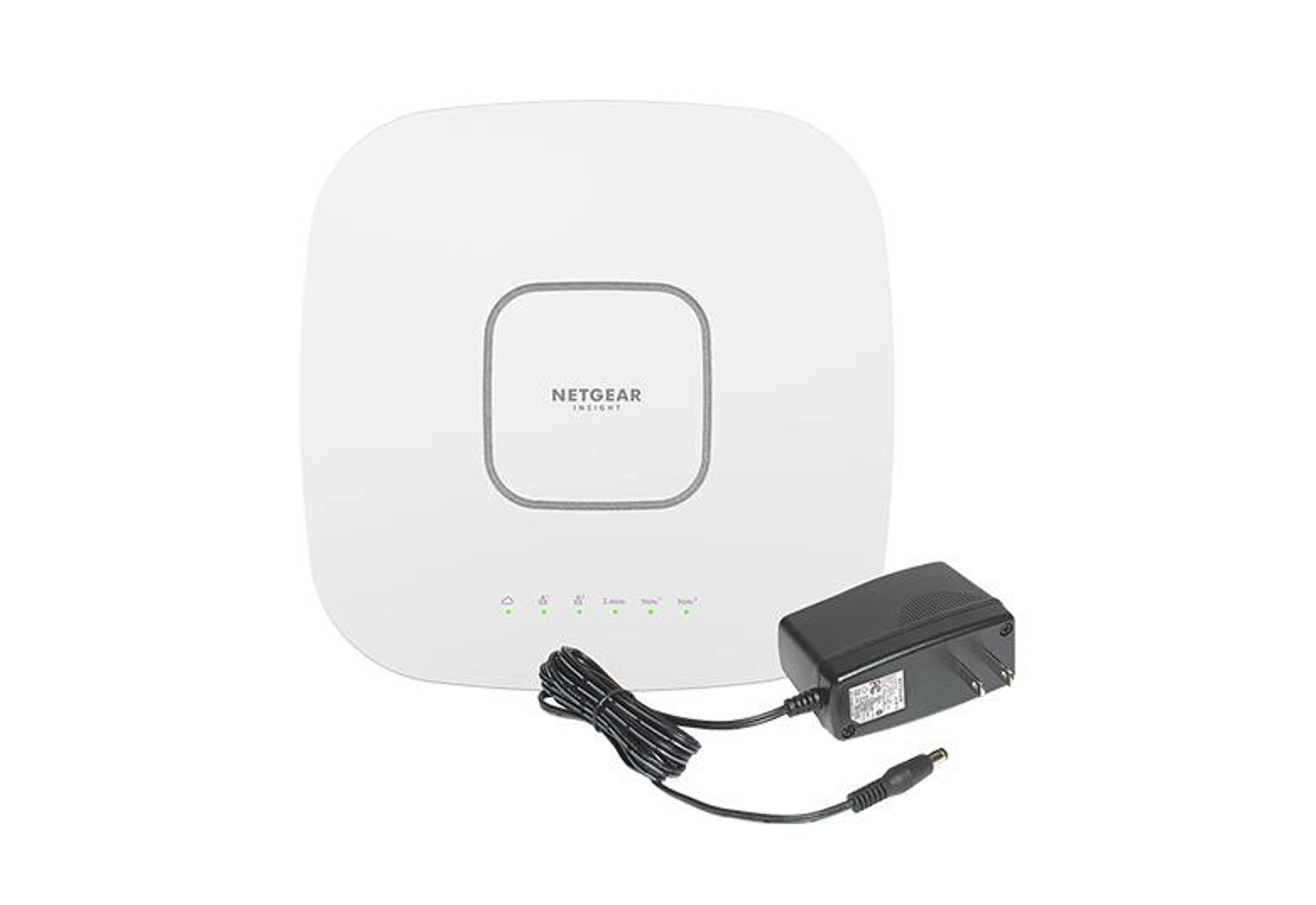

AX6000 Tri-Band PoE Multi-Gig WiFi 6 Access Point with Power Adapter

Add to Wishlist

Send to a friend!

Key Specs

Wi-Fi	Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support
Throughput	6000 Mb/s Total5 GHz: 2400 Mb/s5 GHz: 2400 Mb/s2.4 GHz: 1200 Mb/s
Inputs/Outputs	1x RJ45 Gigabit Ethernet WAN PoE (Unspecified)

Wireless

Wi-Fi	Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support
Number of Antennas	2
Antenna Gain	2.8 to 4.9 dBi
Supported Protocols	Auto-MDIX/MDIMAC FilteringPEAPRADIUSTLSTTLS
Antenna Placement	Internal
Bluetooth	No
Throughput	6000 Mb/s Total5 GHz: 2400 Mb/s5 GHz: 2400 Mb/s2.4 GHz: 1200 Mb/s

Interface

Inputs/Outputs

1x RJ45 Gigabit Ethernet WAN PoE (Unspecified)

Security

Guest Network Support	Yes
Wireless Security	WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
Lock Slot	No

Management

Operation Modes	Access Point, Bridge, Client, Mesh, Repeater
Supported Clients	600
Mobile App Compatible	Yes

Hardware

Media Card Reader	Yes
Supported IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n

Electrical

DC Input Power	12 VDC at 3.5 A
Power Consumption	30.1 W

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

General

Environmental Protection	No
Mount Options	Wall, Ceiling
Dimensions	10.63 x 10.63 x 1.57″ / 27 x 27 x 3.99cm
Weight	2.1lb / 0.95kg

Key Features

Wi-Fi 6 (802.11ax)
Up to 6 GB/s Throughput
2.4 GHz / 2 x 5 GHz (Tri-Band)
2.5G Ethernet PoE++ Port

Designed primarily for small to medium businesses, the Netgear WAX630PA AX6000 Tri-Band Multi-Gig Wi-Fi 6 Access Point delivers fast and reliable wireless connections in high-density environments such as hotels, restaurants, and conference centers. Supporting Wi-Fi 6 (802.11ax) standards, this tri-band access point features a total bandwidth of up to 6 GB/s over the 2.4 GHz and dual 5 GHz bands, providing up to 100 concurrent users with the speed needed for smooth video streaming and web browsing. The PoE++ compliant 2.5G Ethernet port allows you to transfer data and power over a single cable while the Gigabit Ethernet passthrough port lets you extend the reach of your wired connections. A convenient power adapter is included.

Port Speed:
2.5Gbps
Brand:
Netgear
WiFi Technology:
Wi-Fi 6
