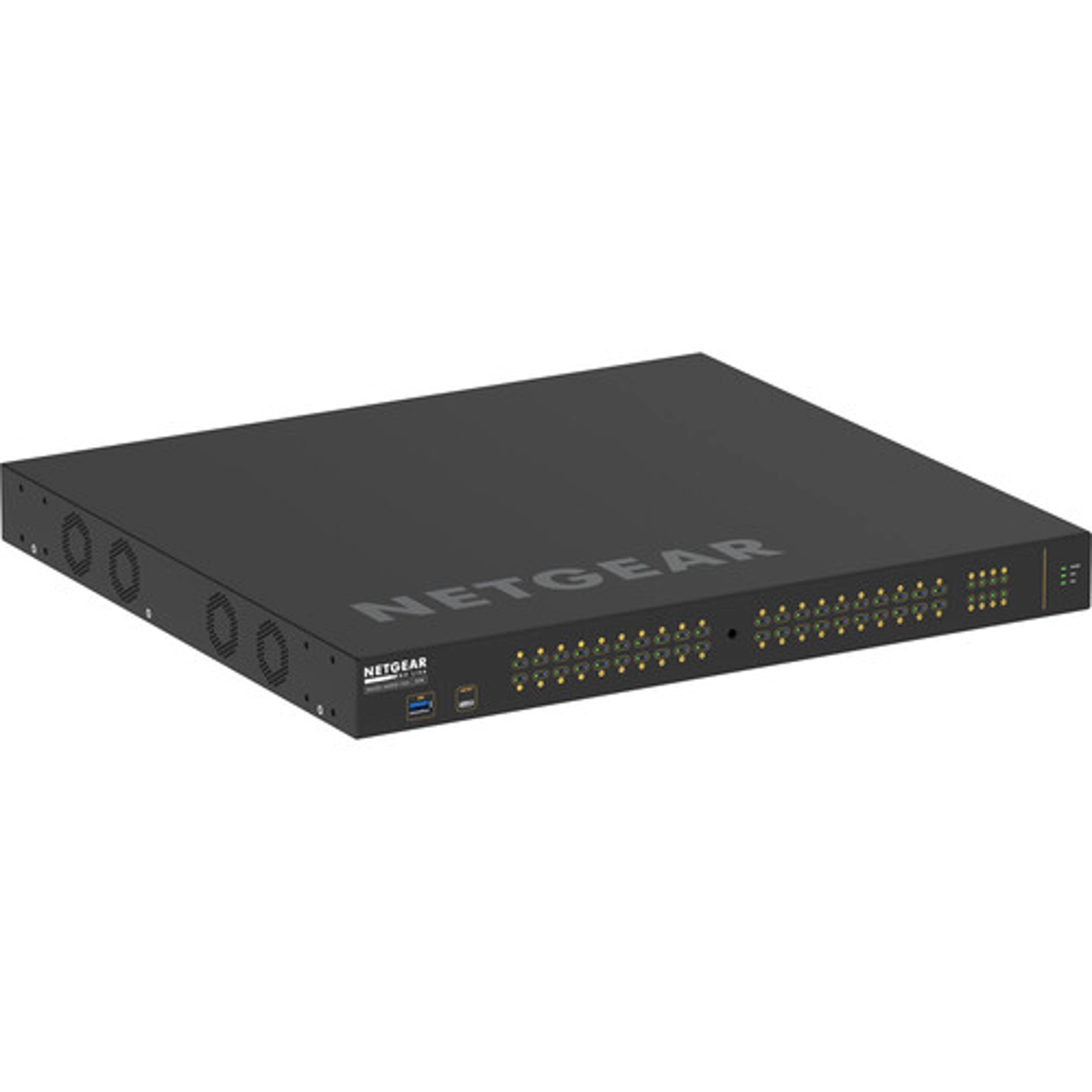

Netgear GSM4248PX-100NAS
SKU: NET-GSM4248PX-100NAS
MPN: GSM4248PX-100NAS
Description
40x1G PoE+ 960W and 8xSFP+ Managed Switch
Send to a friend!
SKU: NET-GSM4248PX-100NAS
MPN: GSM4248PX-100NAS
40x1G PoE+ 960W and 8xSFP+ Managed Switch
Send to a friend!
| Inputs/Outputs | 40x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)8x SFP+ 10 GbE2x RJ45 Gigabit Ethernet LAN2x USB-C1x USB-A |
| Stackable | No |
| Switching Bandwidth | 240 Gb/s |
| PoE Power Budget | 960 W |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | DHCP ServerIGMP SnoopingIPv4IPv6Link AggregationPort Mirroring |
| Jumbo Frames Support | 12,000 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP SnoopingDoS Attack PreventionRADIUS AuthenticationStorm Control |
| Latency | 0.7 to 2.7 µs |
| Forwarding Rate | 178.56 Mpps |
| Switching Bandwidth | 240 Gb/s |
| Packet Buffer | 32 Mb |
| CPU | Quad-Core:Up to 1.8 GHz Cortex A57 |
| Memory | 2 GB |
| PoE per Port | 30 W |
| PoE Power Budget | 960 W |
| Power Draw | 1197.00 W (Max)89.2 W (Idle)74.5 W (Standby) |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 77°F / 0 to 45°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% |
| Noise Level | 59.0 dB (Active) |
| Certifications | No |
| Cooling System | Fan/Passive Combo |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 RU |
| Dimensions | 17.3 x 15.7 x 1.7″ / 440 x 400 x 43.2mm |
| Weight | 13.91lb / 6.31kg |
| Package Weight | 18.86 lb |
| Box Dimensions (LxWxH) | 21.2 x 18.2 x 4.8″ |
48
10Gbps
Managed L2/L3
Netgear
