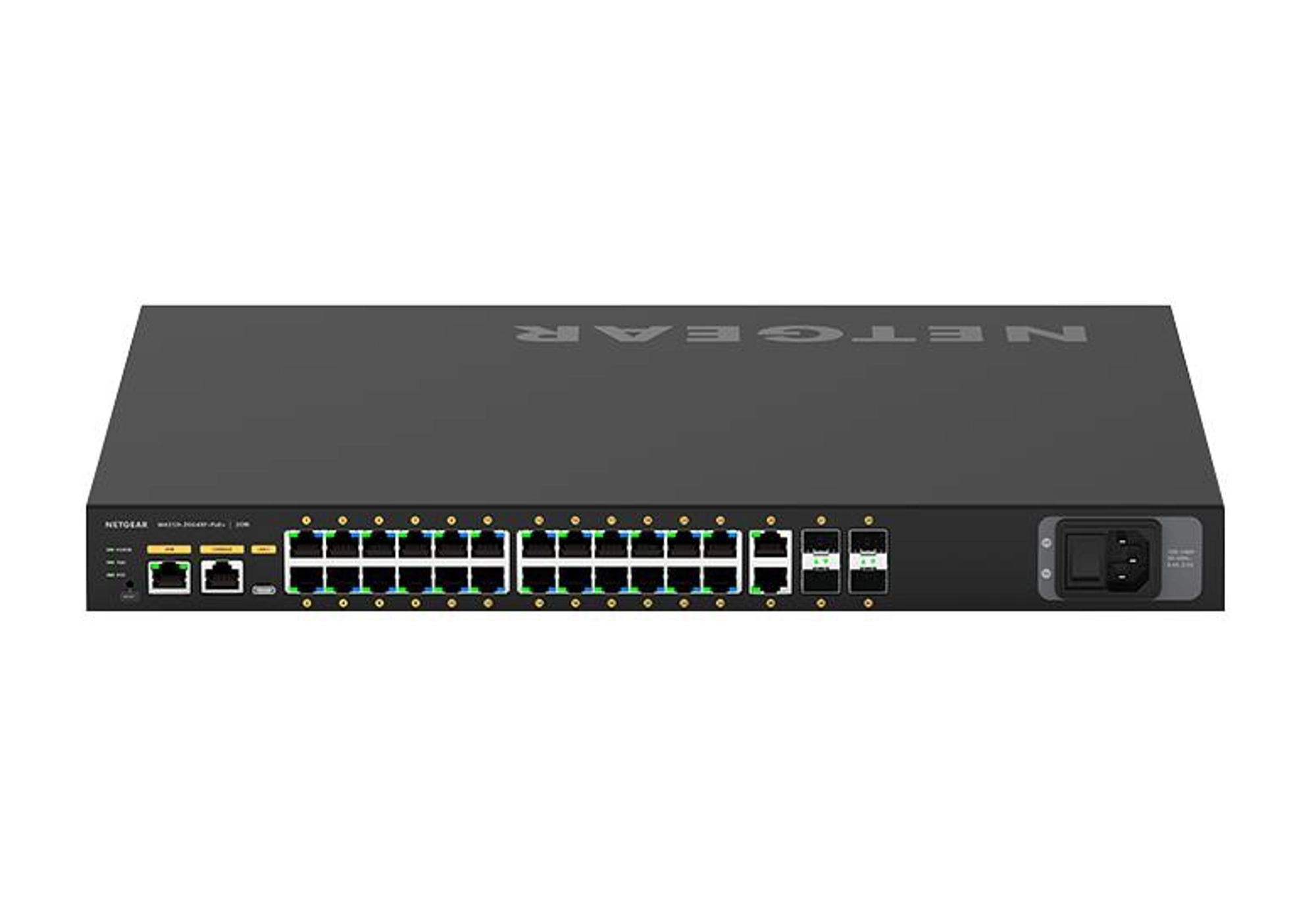

Netgear GSM4230P-100NAS
SKU: NET-GSM4230P-100NAS
MPN: GSM4230P-100NAS
Description
24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
Send to a friend!
SKU: NET-GSM4230P-100NAS
MPN: GSM4230P-100NAS
24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
Send to a friend!
| Inputs/Outputs | 24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)4x SFP+ Gigabit Ethernet2x RJ45 Gigabit Ethernet LAN2x USB-C1x USB-A |
| Stackable | No |
| Switching Bandwidth | 60 Gb/s |
| PoE Power Budget | 300 W |
| Stackable | No |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | DHCP ServerIGMP SnoopingIPv4IPv6Link AggregationPort Mirroring |
| Jumbo Frames Support | 12,000 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP SnoopingDoS Attack PreventionRADIUS AuthenticationStorm Control |
| Latency | 2.2 µs |
| Forwarding Rate | 44.64 Mpps |
| Switching Bandwidth | 60 Gb/s |
| Packet Buffer | 16 Mb |
| CPU | Quad-Core:Up to 1.8 GHz Cortex A57 |
| Memory | 2 GB |
| PoE per Port | 30 W |
| PoE Power Budget | 300 W |
| Power Draw | 401.00 W (Max)23.4 W (Standby) |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 77°F / 0 to 45°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% |
| Noise Level | 34.0 dB (Active) |
| Certifications | No |
| Cooling System | Fan/Passive Combo |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 RU |
| Dimensions | 17.3 x 10.1 x 1.7″ / 440 x 257 x 43.2mm |
| Weight | 9.5lb / 4.3kg |
| Package Weight | 12.81 lb |
| Box Dimensions (LxWxH) | 21 x 12.7 x 4.7″ |
