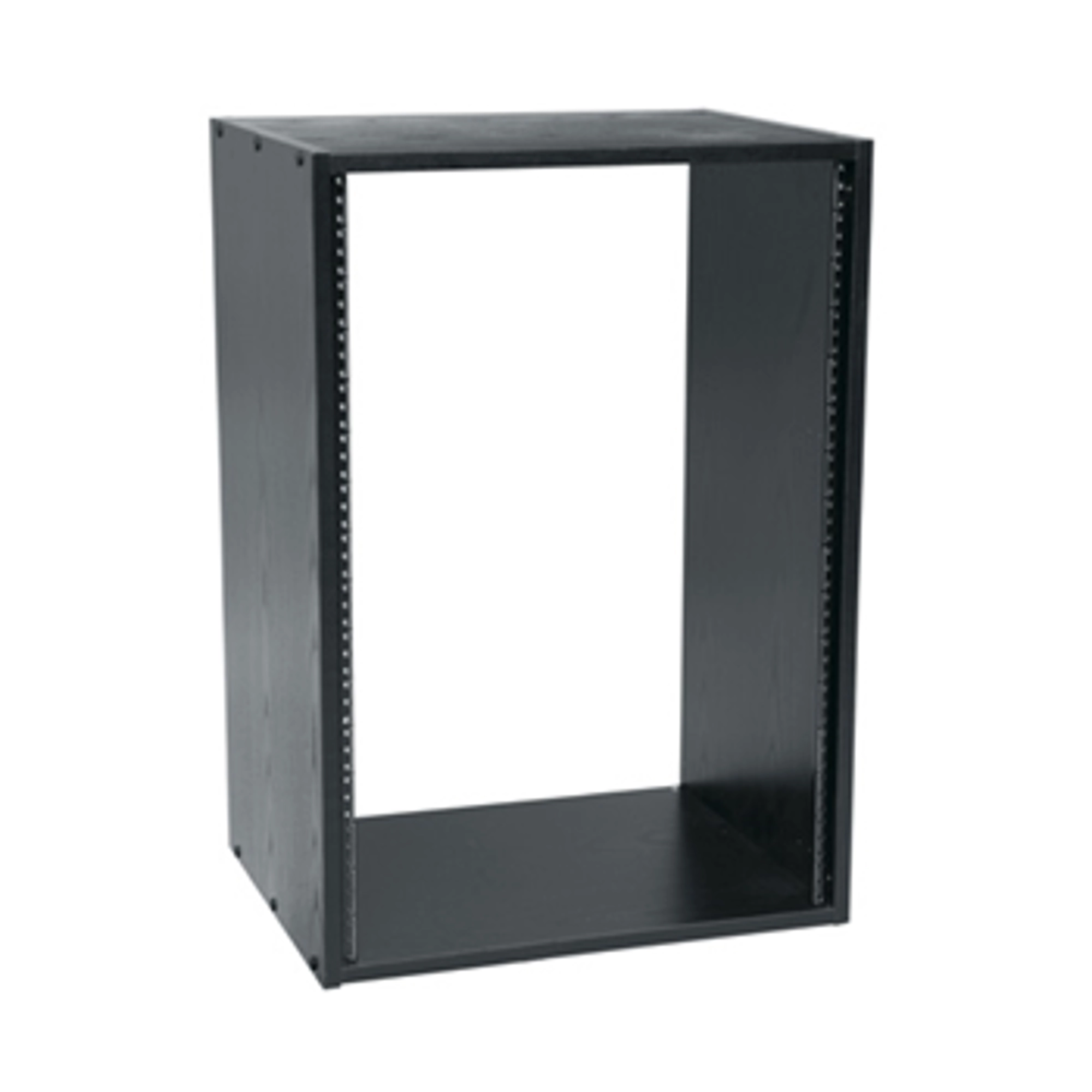

Middle Atlantic BRK16
SKU: MID-BRK16
MPN: BRK16
Description
16SP(28)RACK, 18DEEP
Send to a friend!
SKU: MID-BRK16
MPN: BRK16
16SP(28)RACK, 18DEEP
Send to a friend!
| SKU | BRK16 |
|---|---|
| Manufacturer | Alpha |
| Intercom Type | Video/Audio Intercom |
| Connection Method | Multi-Wire Digital Systems |
| Material | Plastic |
The BRK16 from Alpha is a 16-station relay card used with our BRA controller board, DB1 series LCD display(s), and EMDB1 (or EMVDB1) series keypad module(s) to provide digital dialing capabilities to a variety of intercom or video-intercom systems. Up to 239 apartment intercom and/or video-intercom stations can be signaled by using the BRA in conjunction with up to 15 BRK16 units. Each BRK16 used with the BRA controller provides up to 16 time-delayed dry contact (normally open) relay closures to activate the apt. station’s call signal. This makes the BRK16 and BRA combination a nearly universal digital dialing solution. The BRK16 16-station relay cards are designed to easily surface mount right onto the finished wall by means of customer supplied screws or the convenient plastic ‘Din Rail’ bracket supplied with each power supply. Connections are positive screw terminal type.
Features
Middle Atlantic
The BRK16 from Alpha is a 16-station relay card used with our BRA controller board, DB1 series LCD display(s), and EMDB1 (or EMVDB1) series keypad module(s) to provide digital dialing capabilities to a variety of intercom or video-intercom systems. Up to 239 apartment intercom and/or video-intercom stations can be signaled by using the BRA in conjunction with up to 15 BRK16 units. Each BRK16 used with the BRA controller provides up to 16 time-delayed dry contact (normally open) relay closures to activate the apt. station’s call signal. This makes the BRK16 and BRA combination a nearly universal digital dialing solution. The BRK16 16-station relay cards are designed to easily surface mount right onto the finished wall by means of customer supplied screws or the convenient plastic ‘Din Rail’ bracket supplied with each power supply. Connections are positive screw terminal type.
