Lutron RRST-PRO-N-DE

• Incandescent Wattage 500W
• LED / CFL Wattage 250W
• Neutral Wire Required

RadioRA 3 Sunnata dimmers and companion dimmers incorporate advanced features such as fade-on / fade-off, delayed long fade-to-off, and rapid full-on.

RadioRA 3 Sunnata local controls include locator light to assist in locating the controls at night. RadioRA 3 Sunnata local controls install

in single pole or multi-location applications (fan control is single pole only). Sunnata companion dimmers and companion switches

must be used for multi-location control RadioRA 3 Sunnata local controls include a Front Accessible Service Switch (FASS) for safe light bulb replacement.

Use Lutron Designer (Claro gloss or satin finish) wallplates or designer-style wallplates from other manufacturers. Wallplates are sold separately. Lutron Claro wallplates snap on with no visible means of attachment. Available colors are in the Colors and Finishes section on page 16 at the end of the cutsheet.

• Pressing the top of the button, lights fade ON.
• Pressing the bottom of the button, lights fade OFF.
• Anytime – Double tap the top of the button, lights fade rapidly to full brightness.
• Pressing and holding the bottom of the button for more than 1 second – Delayed long fade to OFF (30 second delay).
• Light levels can be fine-tuned by touching your finger to the light bar and sliding your finger up or down until the desired light level is reached.
• Neutral is required. (Dimmer only)

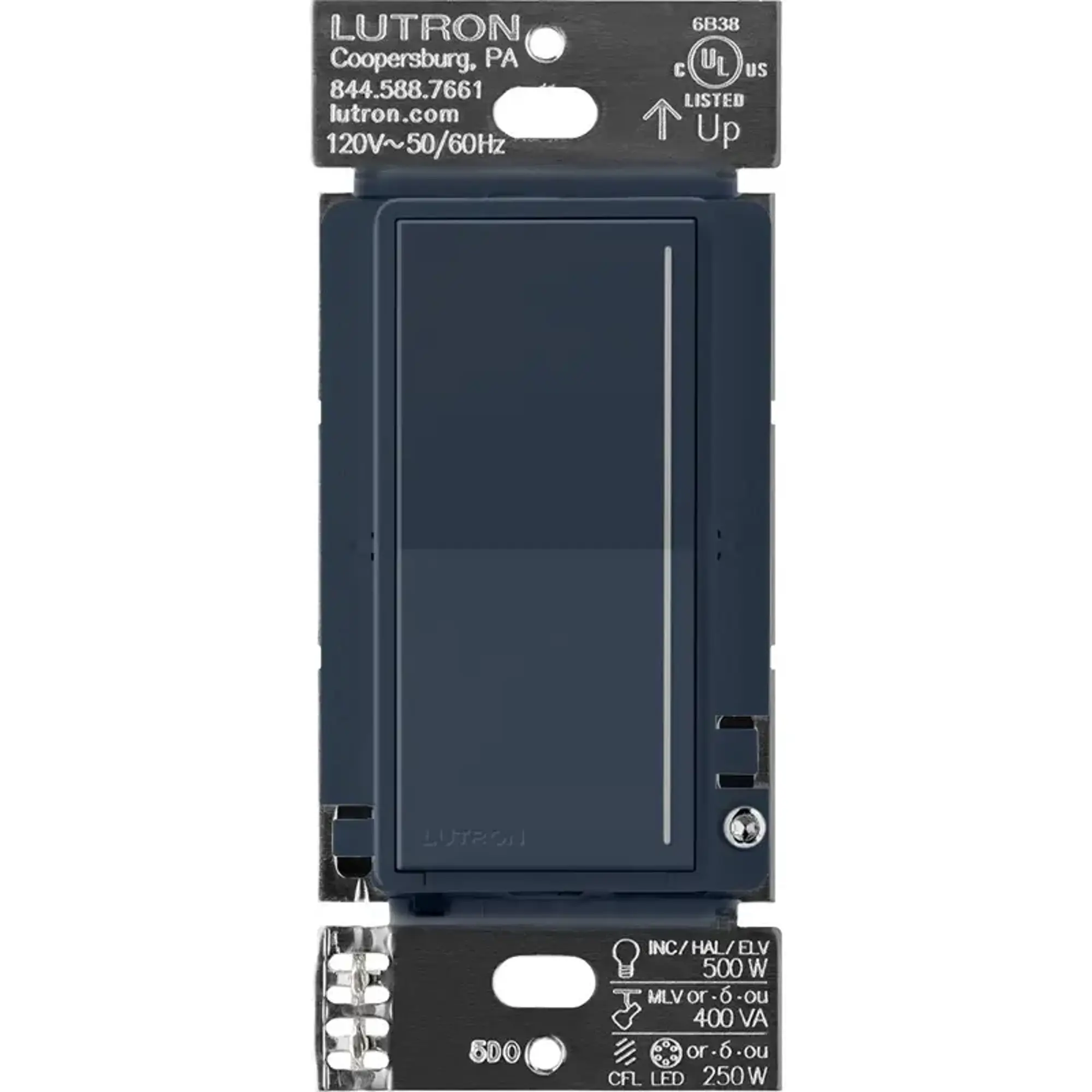

RadioRA 3 RF Sunnata Phase Selectable Neutral Dimmer

RRST-PRO-N-DE

RadioRA 3 Sunnata local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system. Local lighting controls are useful in locations where single circuits of lighting need to be dimmed or switched.
