Lutron RRST-8ANS-PB

• Amperage 8A
• Neutral Wire Required

RadioRA 3 Sunnata local controls include locator light to assist in locating the controls at night. RadioRA 3 Sunnata local controls install

in single pole or multi-location applications (fan control is single pole only). Sunnata companion dimmers and companion switches

must be used for multi-location control RadioRA 3 Sunnata local controls include a Front Accessible Service Switch (FASS) for safe light bulb replacement.

Use Lutron Designer (Claro gloss or satin finish) wallplates or designer-style wallplates from other manufacturers. Wallplates are sold separately. Lutron Claro wallplates snap on with no visible means of attachment. Available colors are in the Colors and Finishes section on page 16 at the end of the cutsheet.

• Pressing the top of the button, lights or motors turn ON.
• Pressing the bottom of the button, lights or motors turn OFF.
• Neutral is required. (Switch only)
• Pressing and holding the bottom of the button for more than 1 second – Delayed Off (30 second delay)

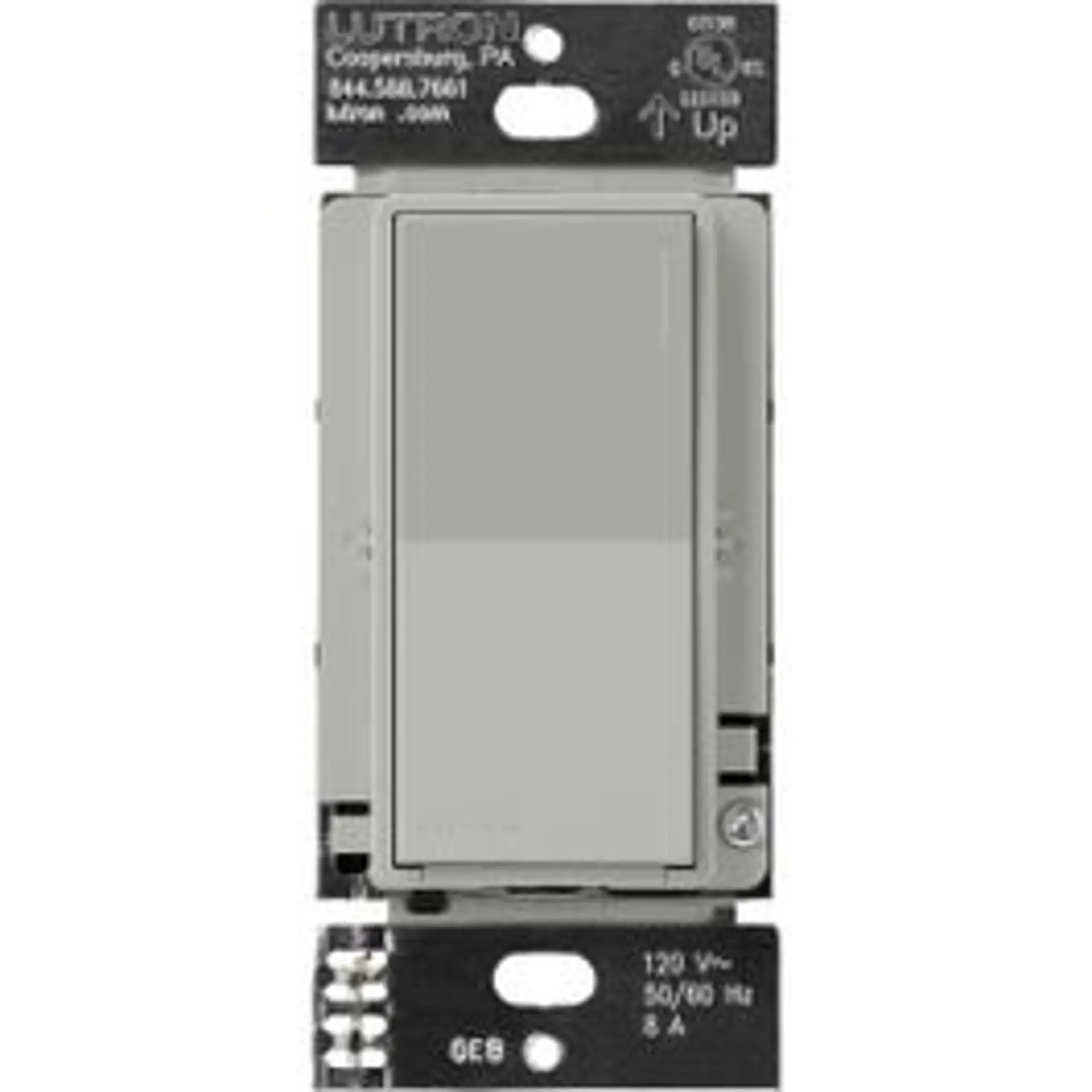

RadioRA 3 RF Sunnata 8 Amp Neutral Switch

RRST-8ANS-PB

RadioRA 3 Sunnata local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system. Local lighting controls are useful in locations where single circuits of lighting need to be dimmed or switched.

• Cutsheet
