Lutron RR-15OUT-BL

Load Types and Ratings

• Up to 15 A lighting loads
• Up to 1/2 HP motor and pump loads
• Up to 1200 VA (8 A) lighting transformer / magnetic ballast loads.

Environment

• Ambient operating temperature: -4 °F to 122 °F (-20 °C to 50 °C), 0% to 100% humidity, non-condensing.
• Intended for outdoor use in all weather conditions. See Installation Guide for how to properly install.
• Must be used with a GFCI protected outlet.

• When used with the RadioRA 3 processor, the RadioRA 3 outdoor plug-in switch can be incorporated into lighting scenes, scheduled for daily events, and controlled from anywhere in the world.
• Lutron patented Clear Connect Type A RF Technology works through walls and floors.
• Works with 120 V~ outdoor lighting, motors and pumps, and outdoor lighting low-voltage transformers. See Load Types and Ratings for more details.
• The unit has been designed to withstand all weather conditions. The internal electronics are fully encapsulated to keep water, humidity, dust, and dirt from ever reaching or degrading the product electronics.

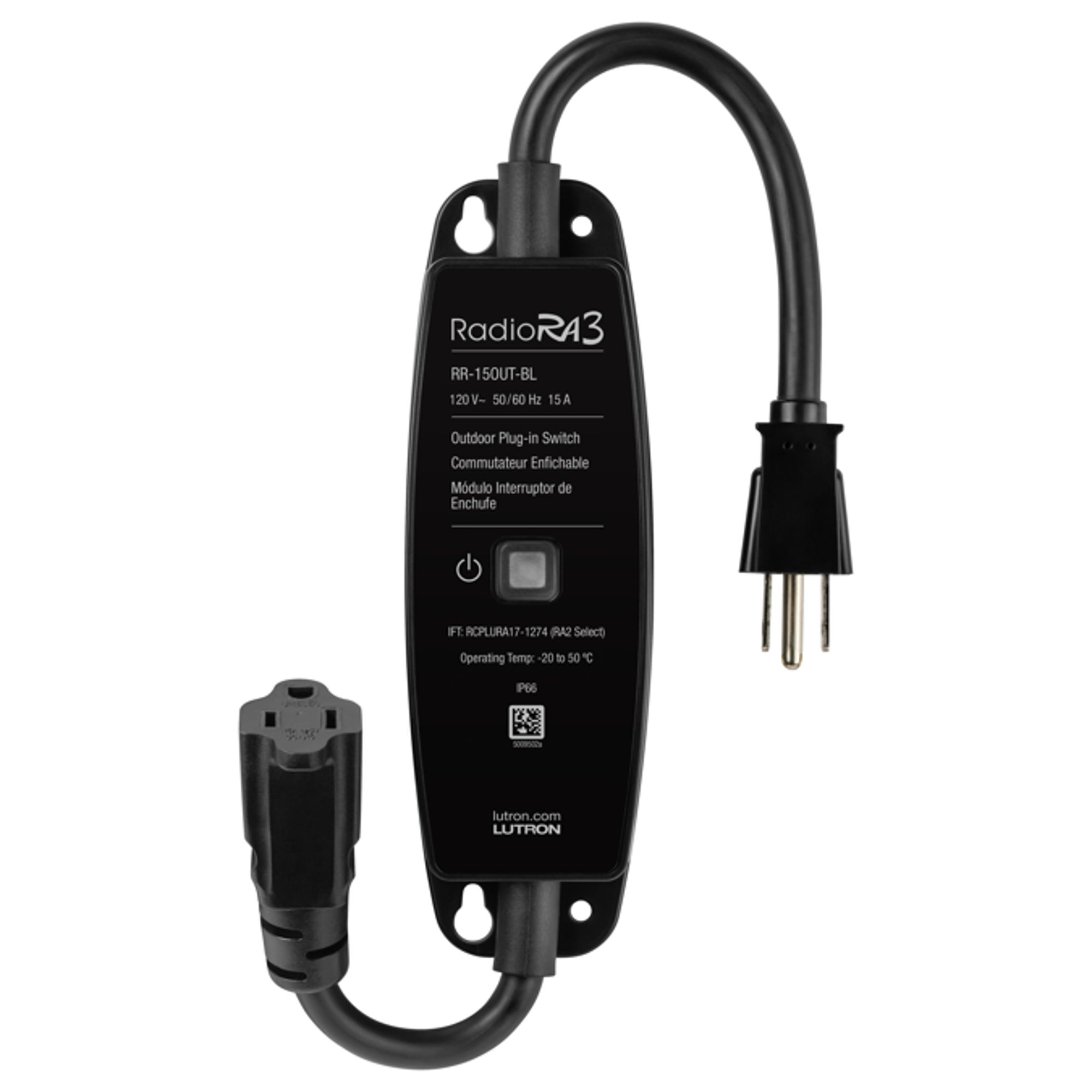

RadioRA 3 Outdoor Plug-in Switch

RR-15OUT-BL

The RadioRA 3 outdoor plug-in switch controls outdoor loads, both directly or wirelessly as part of a RadioRA 3 lighting control system (using Lutron patented Clear Connect Type A RF Technology)

• Cutsheet
