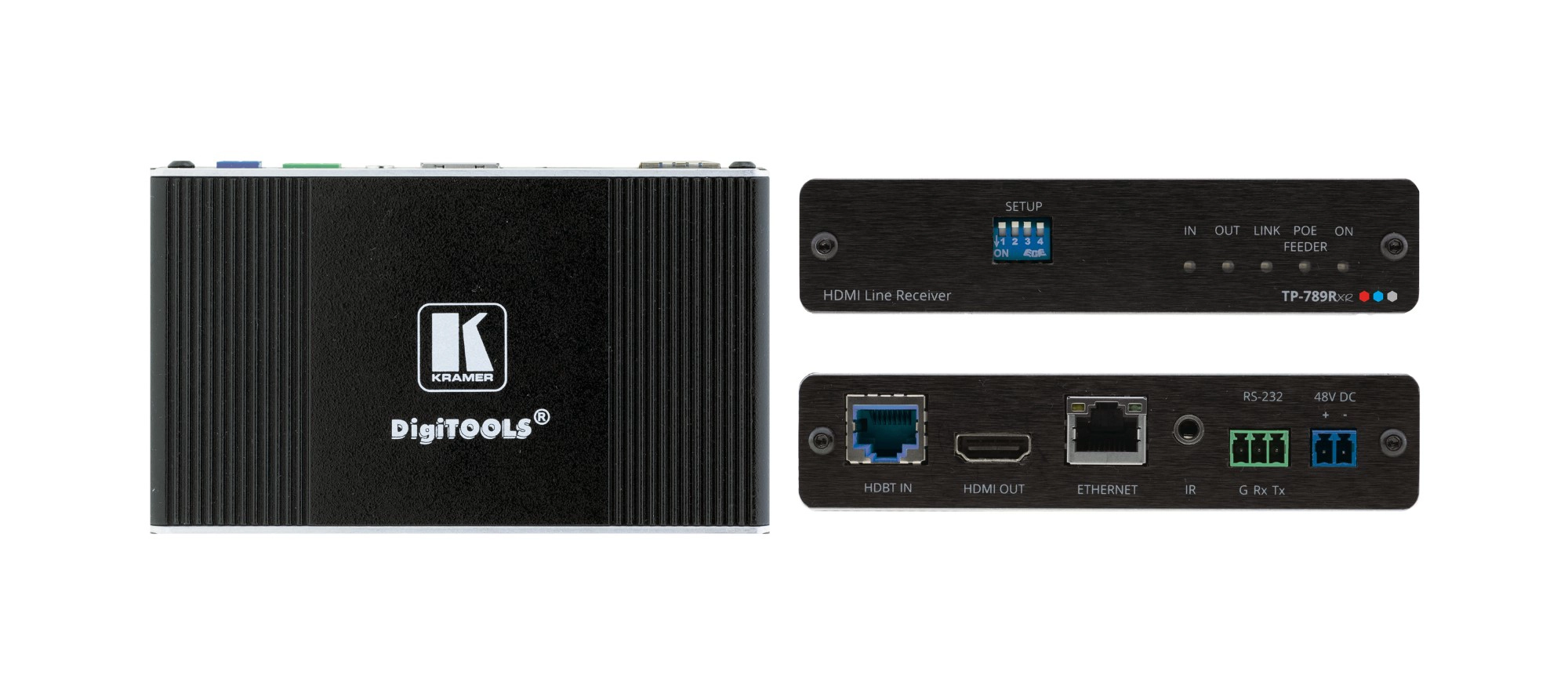

Kramer TP-789Rxr

• Longdistance AV signal extension for multiroom, large dividable auditoriums and lecture hall connectivity
• AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

• High Performance Standard Extender Professional HDBaseT extender for providing extendedreach signals and powering over twistedpair copper infrastructures. TP789Rxr is a standard extender that can be connected to any marketavailable HDBaseTcompliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• Bidirectional PoE (Power over Ethernet) Autosenses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wallplate, or accepts power from a remote PoE provider such as a PoE matrix.
• HDMI Signal Extension Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTSHD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
• IEDIDPro™ Kramer Intelligent EDID Processing™ Intelligent EDID passthrough algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Multichannel Audio Extension Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.
• Ethernet Extension Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS232 Extension Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• CostEffective Maintenance Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS232 connection ensures lasting, fieldproven deployment.
• Easy Installation Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fanless enclosure for droppedceiling mounting, or sidebyside mounting of 3 units in a 1U rack space with the recommended rack adapter.

4K60 4:2:0 HDMI Bidirectional PoE Receiver with Ethernet, RS232 & IR over ExtendedReach HDBaseT

TP-789Rxr

TP789Rxr is a highperformance, extendedreach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS232 and IR signals and 2way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wallplate, or accepts PoE through the extension cable from a PoE provider remote device, as autosensed by the receiver.
