Key Digital KD-X2XQWDTX

SKU: KEY-KD-X2X1WDTX

MPN: KD-X2X1WDTX

UPC: 815996021225

Description

2x1 4K/18G 40m HDBT PoH Wall Plate Switcher with HDMI & DisplayPort, IR, RS-232 (Tx Only)

Add to Wishlist

Send to a friend!

Interfaces

Inputs	1x HDMI1x DisplayPort1x USB-A1x Block 3-Pin (RS-232)1x Block 2-Pin (IR)
Outputs	1x RJ45 (HDBaseT)

Standards

Reclocking	Yes
HDCP Support	Yes, Version 2.2
EDID Support	Auto-Detect

Transmission

Max Transmission Distance	UHD 4K:131.2′ / 40m1080p:229.7′ / 70m
Video Format	HDMI (12-Bit 4:4:4)UHD 4K: 30 fpsHDMI (8-Bit 4:4:4)UHD 4K: 60 fps

General

Certifications	CE, EAC, RoHS, WEEE
Dimensions	3.21 x 2.06 x 0.79″ / 8.15 x 5.23 x 2.01cm
Weight	0.7lb / 0.32kg

Packaging Info

Package Weight	1.165 lb
Box Dimensions (LxWxH)	10.9 x 6.7 x 2.1″

Key Features

HDMI, DisplayPort Presentation Switching
Supports up to 4096 x 2160 Resolution
Power over HDBaseT
Up to 131′ Signal Extension via 4K/UHD

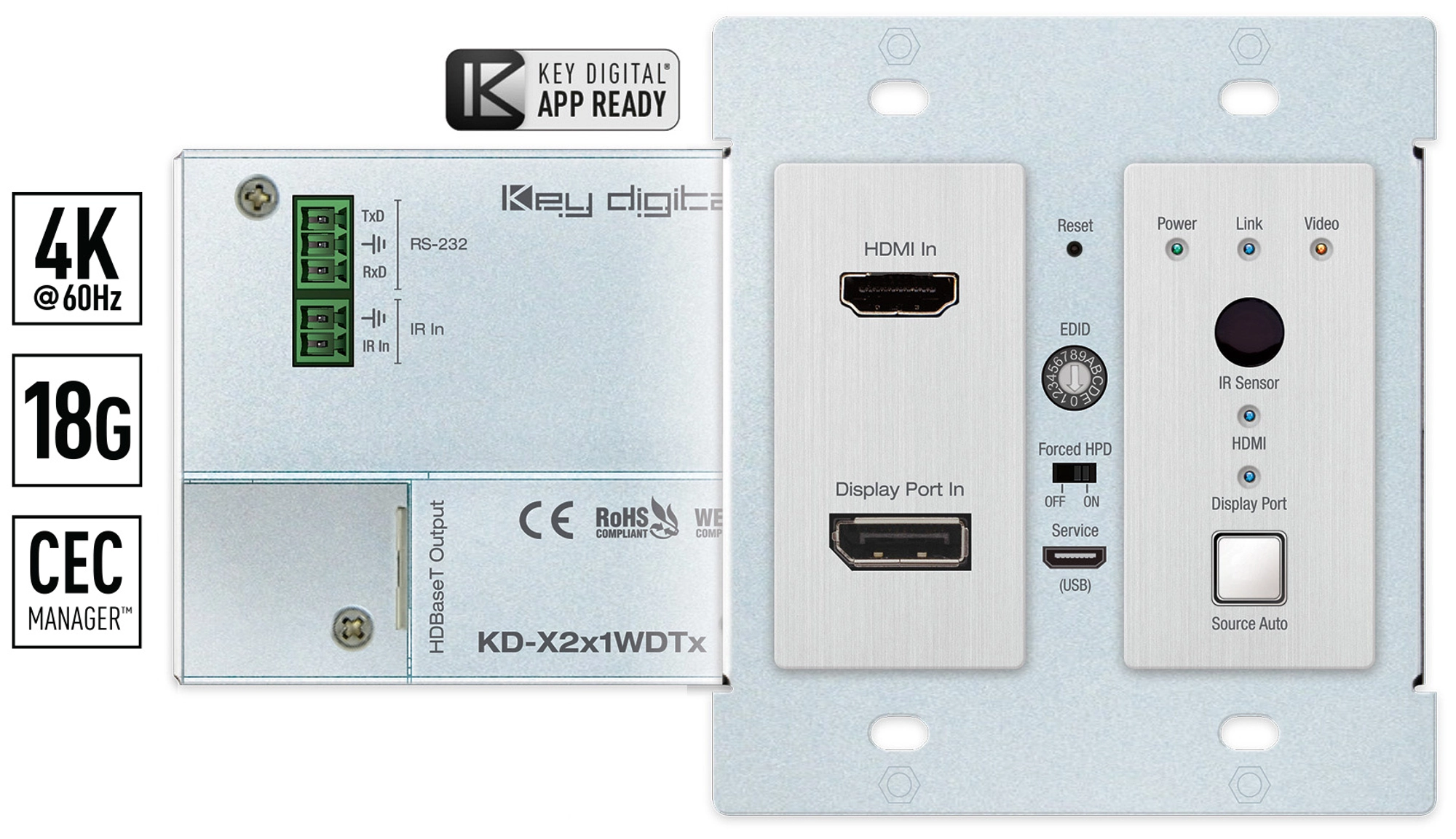

The 2×1 4K HDBaseT PoH Wall Plate Switcher from Key Digital is a transmitter that features HDMI and DisplayPort inputs for presentation switching. This transmitter is designed to be controlled via an RJ45 LAN port and connected to receivers like the KD-X40MRx black box HDBaseT receiver and the KD-PS42 presentation switcher (available separately). It supports a resolution up to 4096 x 2160 at 60 Hz. A signal extension up to 131′ is supported via 4K/UHD resolution and up to 230′ via 1080p resolution. This unit is designed for installation in a standard US dual-gang box. A silver decora plate is included.

Type:
HDMI Switcher
Outputs:
1
Inputs:
2
Resolution:
4K Ultra HD
Brand:
Key Digital
