Kanto Installer Series RCAD370

• TV Sizes: 37 to 75
• Weight Allowance: 125 lbs (57 kg)
• VESA Sizes: 100100 to 600400
• Wall Plate: 22 (56 cm); Accommodates dual studs with up to 16 spacing
• Shipping box weight: 24.7 lb (11.2 kg)
• Shipping box dimensions: 29.4 x 15 x 2.8 (74.6 x 38 x 7 cm)
• Product weight: 22.5 lb (10.2 kg)

• With a unique tilt head designed to nestle into the frame, the RCAD370 TV wall mount will let you push your flat screen TV within 2 of the wall. The H frame assembly provides maximum access for cable connections.
• With its adjustable bracket arms, the RCAD370 accommodates VESA sizes from 100100 to 600400.
• Even with its low-profile design, the RCAD370 can extend almost 21.7 from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.
• With its solid steel construction, this durable TV wall mount is designed and tested to hold up to 125 pounds. Even at maximum weight and full extension, your TV will remain in place with no sag.
• The articulating arms allow you to pivot your TV up to 80° in either direction, depending on your TV size, allowing you to achieve the perfect viewing angle.
• The accessible tilt mechanism makes it easy to angle your TV up to 15° forward or 3° backward. Once youve found the best viewing angle, tighten the nuts to secure your TV in place.
• Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides whatever works best.
• The RCAD370 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.

Full Motion TV Mount

RCAD370

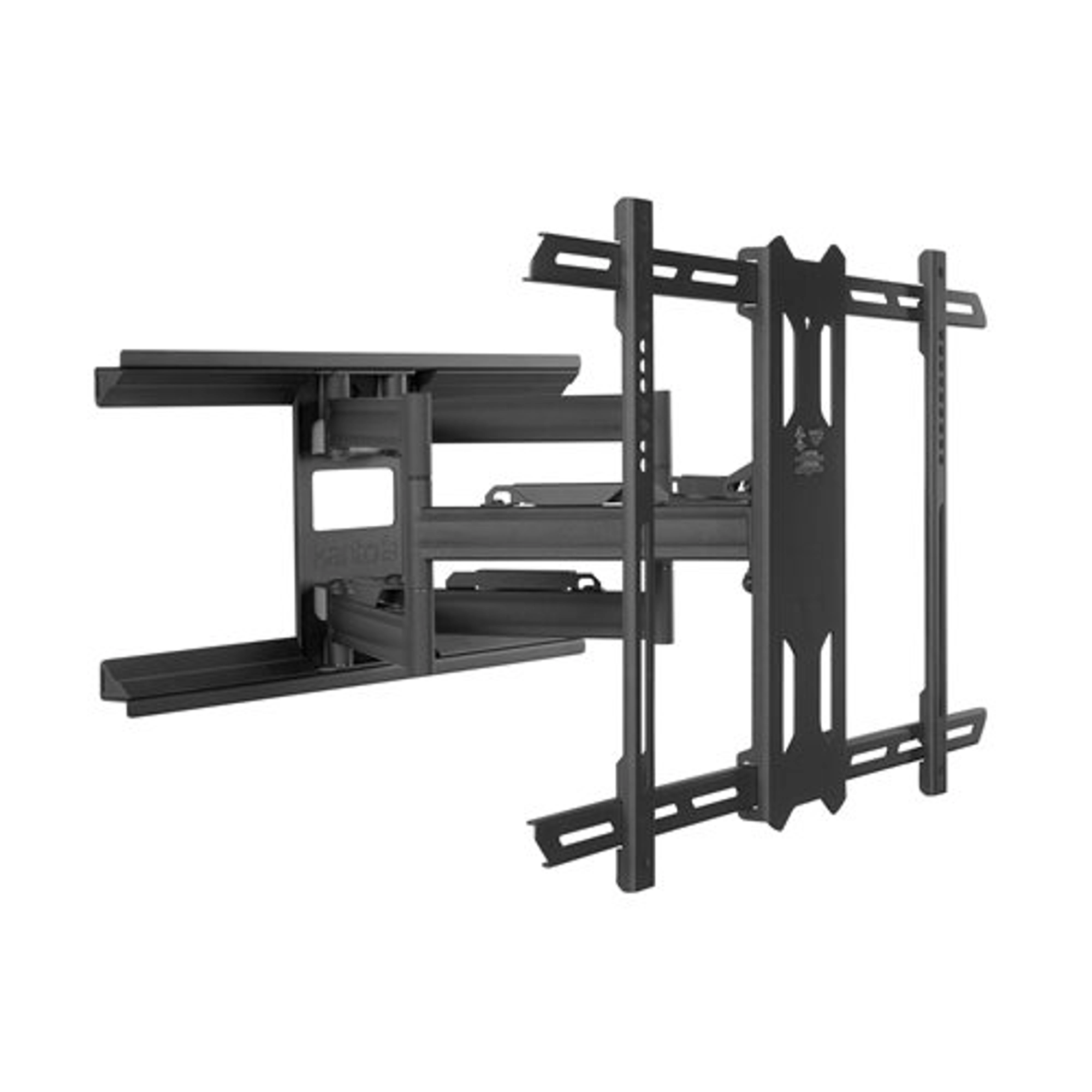

The RCAD370 from Kanto Installer Series is a full motion TV wall mount that allows your flat screen TV to sit 2″ from the wall. Its generous tilt and swivel capabilities are complemented by 21.7″ of extension, making it easy to place your TV in the most optimal position. Exceptionally strong yet lightweight enough to make installation a breeze, this extending TV wall mount will ensure your TV remains safe and secure.
