Kanto PMX800

• TV Sizes: 55 to 120
• Weight Allowance: 200 lbs (90.9 kg)
• VESA Sizes: 200100 to 900600
• Wall Plate: 32.4 (82.3 cm); Accommodates dual studs with up to 24 spacing
• Shipping box weight: 58.4 lb (26.5 kg)
• Shipping box dimensions: 41.6 x 21.3 x 4.9
• (105.7 x 58.3 x 12.5 cm)
• Product weight: 48.3 lb (21.9 kg)
• UPC: 800152721712

• Whether youre designing the ultimate home theatre, or installing interactive touch panels, PMX800s 200 lb. weight capacity ensures compatibility with displays of any size.
• Even if your studs are in a suboptimal position, you can still nail your TVs placement with 22 total inches of horizontal offset. Oversized TV brackets provide flexibility to achieve the perfect height.
• The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.
• Easily reach over fireplaces or out of recessed locations with 31.3 (79.5 cm) of extension.
• A toolless cam lever tilt mechanism allows for on-the-fly adjustments. Tilt your screen forward up to 12 degrees or backwards 3 degrees
• Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.
• Achieve the best viewing angle regardless of where youre sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
• PMX800s cable management system is made of metal to stand up to regular use and reduce potential service calls.
• Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.

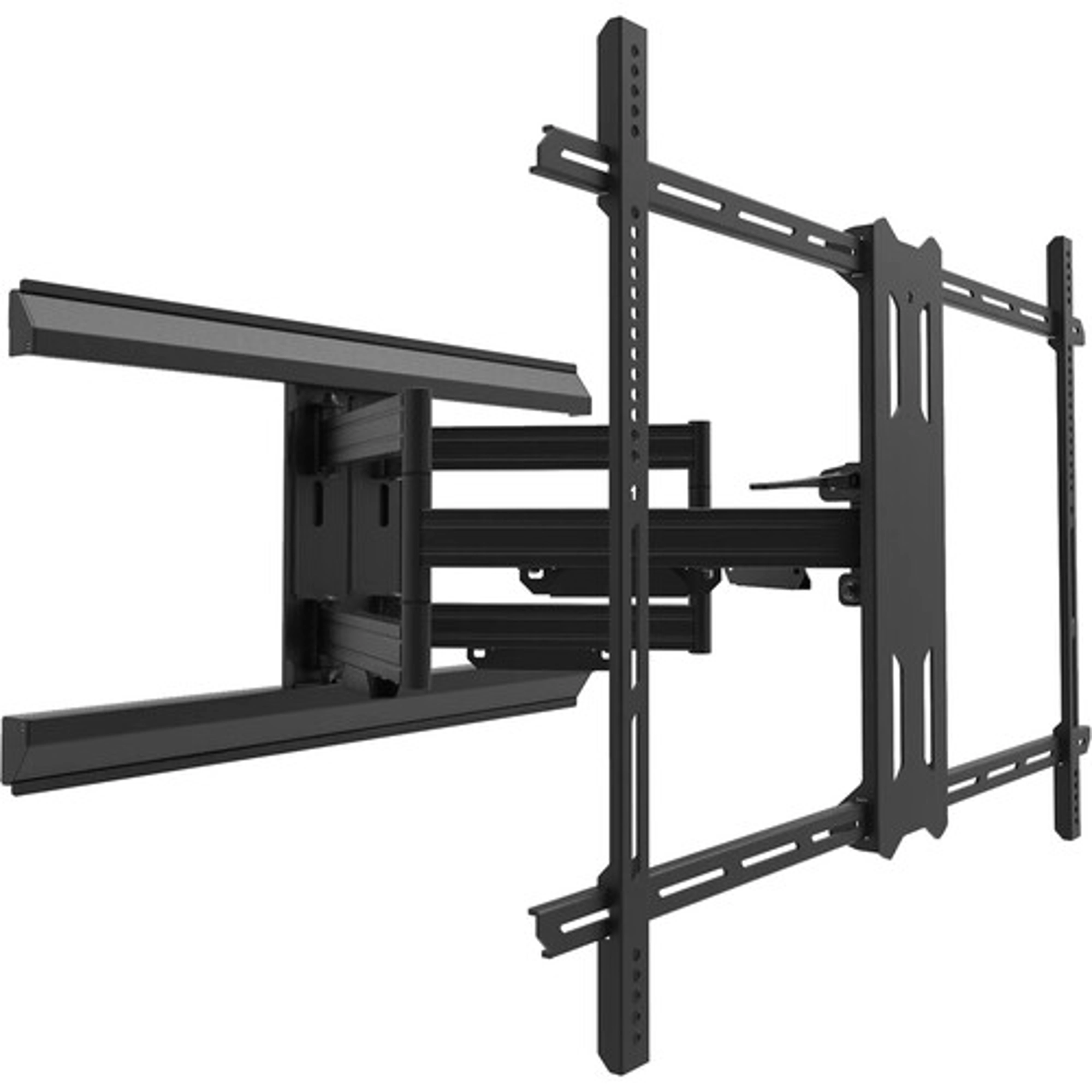

Full Motion TV Mount for Large Screens

PMX800

Dont let the size of your TV dictate where you put it. Capable of supporting panels up to 120, PMX800 adjustable wall mount can be horizontally offset 11 in either direction to dial in the lateral placement of your display. An oversized 900600 VESA interface improves compatibility with extra-large touch screens and provides flexibility for vertical positioning. With 31.3 of extension, this full motion wall mount gives you all the swivel needed to get the perfect viewing angle. Its low-profile design allows your TV to sit 2.6 from the wall when fully retracted and features all-metal cable management and lag bolt covers to stand the test of time. Toolless tilt rounds off PMX800s extensive feature set allowing for on-the-fly adjustments.
