Kanto FMC1

• TV Size: 40 to 60
• Weight Allowance: 88 lb (40 kg)
• VESA Sizes: 100100 to 600400
• Extension: 20.4 (51.7 cm) to 29.8 (75.7 cm) from the corner
• Shipping box weight: 18.7 lb (8.5 kg)
• Shipping box dimensions: 27 x 15.2 x 4.7 (68.5 x 38.5 x 12 cm)
• Product weight: 17.2 lb (7.8 kg)
• UPC: 800152717500

• Constructed out of steel, the FMC1 safely supports 40 to 60 TVs weighing up to 88 pounds, and features adjustable mounting brackets to accommodate VESA sizes from 100100 to 600400.
• Unlike other full motion mounts, the Kanto FMC1 corner TV mounts unique 90° wall plate can be mounted squarely in the corner of any wood stud or concrete wall. Its contoured design ensures each lag bolt can be properly secured, regardless of how your studs are configured.
• The telescopic TV wall mounts support arm extends 20.4 to 29.8 from the corner, providing enough space for TVs as large as 60.
• When sufficiently extended, this telescopic TV wall mount is capable of swiveling up to 90° left and right. This allows you to place your TV against the adjacent walls, or to make simple adjustments to your viewing angle.
• The telescopic TV wall mount tilts 10° forwards and 6° backwards to reduce glare and improve line-of-sight with your TV.

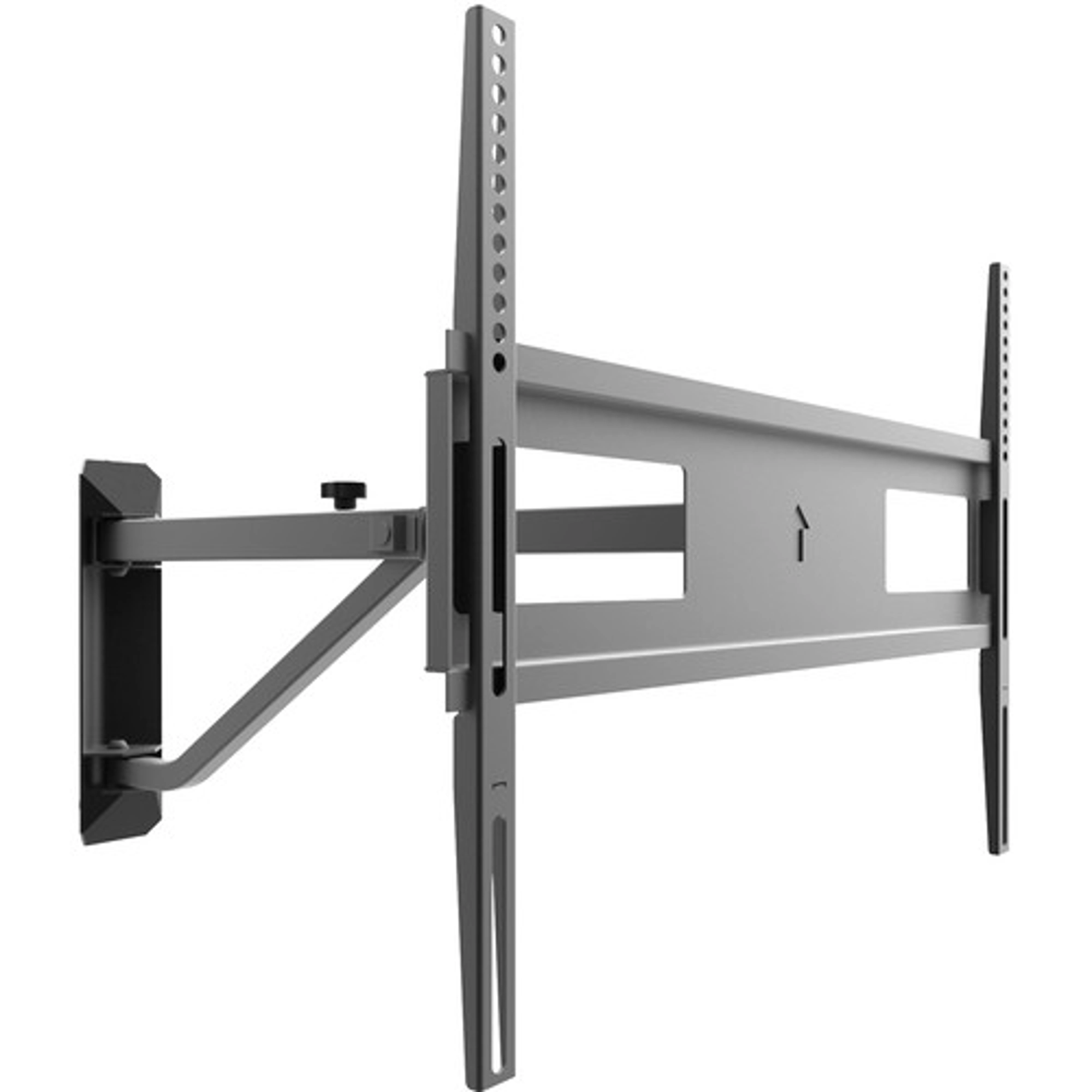

Telescoping Corner TV Mount

FMC1

Mounting your TV in a corner can be a great way to deal with limited wall space or angled seating arrangements. While some full motion mounts achieve this by being installed on near-by studs, the Kanto FMC1s unique 90° wall plate can be mounted squarely in a corner, ensuring a perfectly centered setup with far more flexibility. Suitable for wood stud and concrete walls, the Kanto FMC1 corner TV mount features a telescoping support arm that provides adequate space for TVs as large as 60 inches. Its also capable of swiveling left and right, allowing your TV to be pushed up against adjacent walls, and tilting forwards and backwards to reduce glare and improve line-of-sight with your screen.

• Cutsheet
