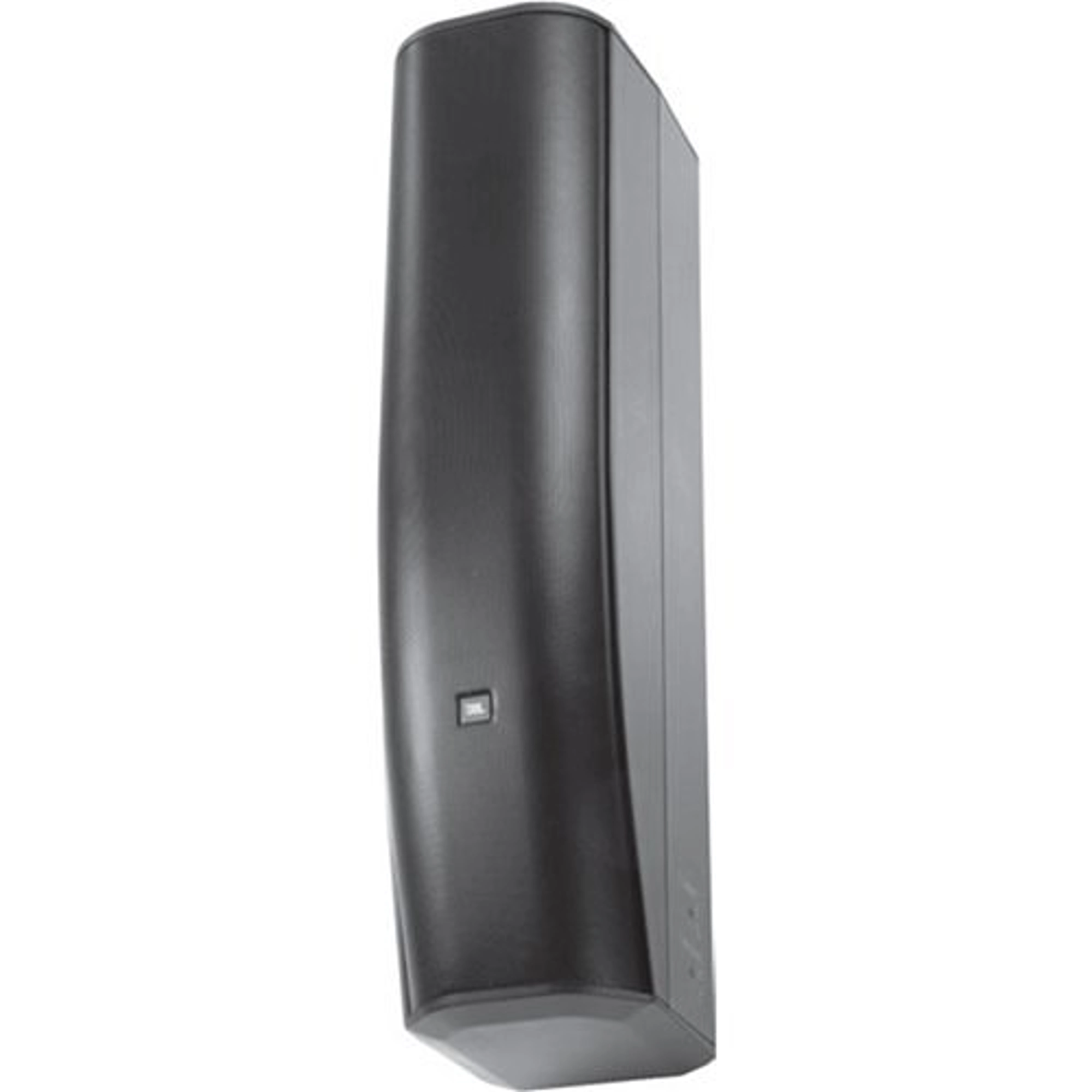

JBL Professional CBT 70J-1 (black)

.

• Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent.
• Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers,
• arranged coaxially.
• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
• long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection of HF devices
• Swivel (pan) / tilt wall bracket included.

Constant Beamwidth Technology™ Two-Way Line Array Column with Asymmetrical Vertical Cove

CBT 70J-1

Constant Beamwidth Technology™ Two-Way Line Array Column with Asymmetrical Vertical Coverage. With improved mounting bracket for enhanced aiming flexibility and stronger grille.

The CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
