Hosa NC3FXX-BAG
SKU: HOS-NC3FXX-BAG
MPN: NC3FXX-BAG
Description

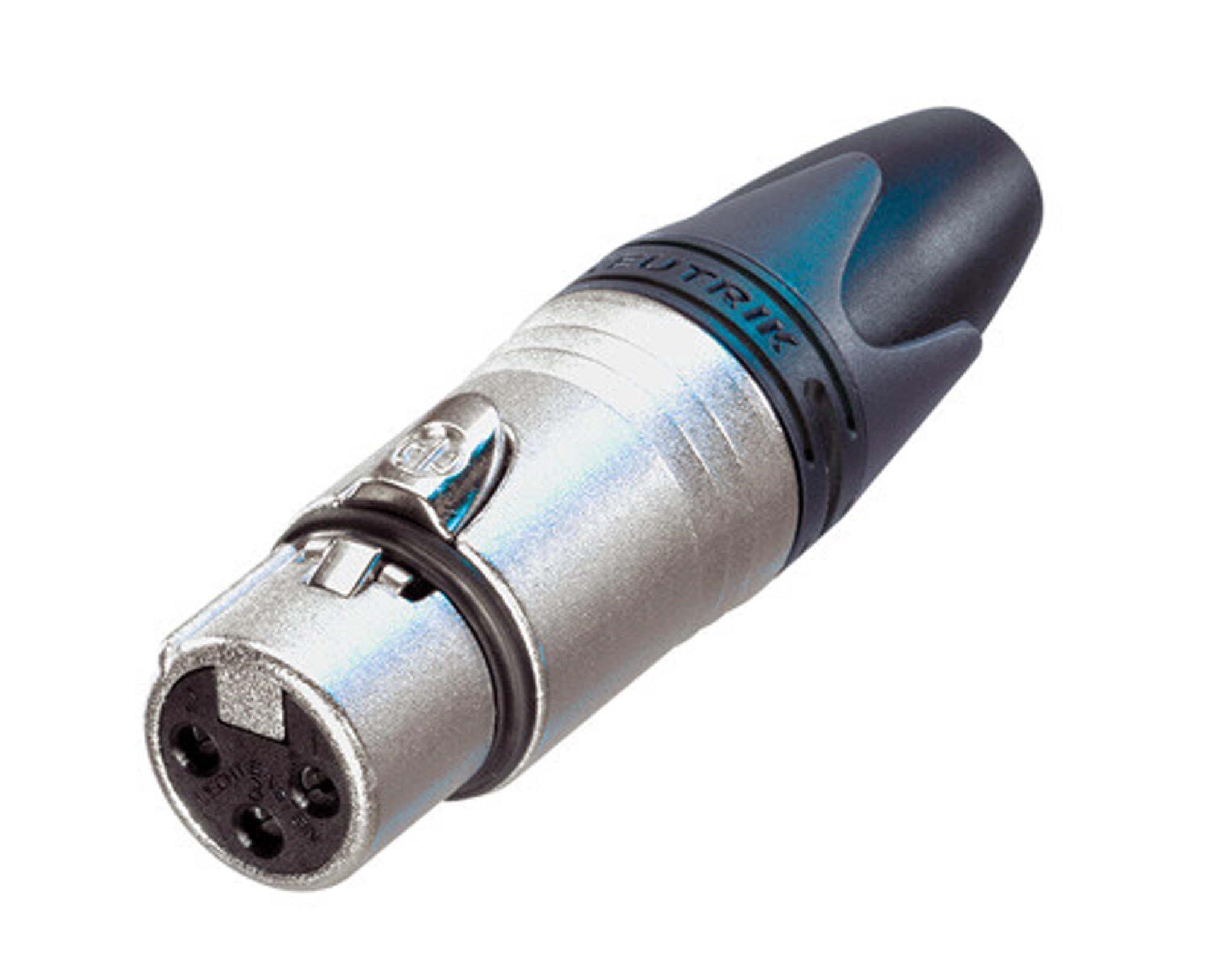

Neutrik Connector, XLR Female cable connector
Send to a friend!
SKU: HOS-NC3FXX-BAG
MPN: NC3FXX-BAG
Neutrik Connector, XLR Female cable connector
Send to a friend!
Electrical
Capacitance between contacts = 4 pF Contact resistance = 3 mO Dielectric strength 1,5 kVdc Insulation resistance > 10 GO (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical
Cable O.D. 3.5 – 8.0 mm Insertion force = 20 N Withdrawal force = 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm Wiresize max. 14 AWG Locking device Latch lock Material
Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA66) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental
Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Product
Title NC3FXX Connection Type XLR Gender female
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Electrical
Capacitance between contacts = 4 pF Contact resistance = 3 mO Dielectric strength 1,5 kVdc Insulation resistance > 10 GO (initial) Rated current per contact 16 A Rated voltage < 50 V Mechanical
Cable O.D. 3.5 – 8.0 mm Insertion force = 20 N Withdrawal force = 20 N Lifetime > 1000 mating cycles Wiresize max. 2.5 mm Wiresize max. 14 AWG Locking device Latch lock Material
Boot Polyurethan Contact plating 2 µm Ag Contacts Bronze (CuSn8) Insert Polyamide (PA66) Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental
Flammability UL 94 V-0 Standard compliance IEC 61076-2-103 Protection class IP 40 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Product
Title NC3FXX Connection Type XLR Gender female
XLR End F
Hosa
3 pole female cable connector with Nickel housing and silver contacts.
